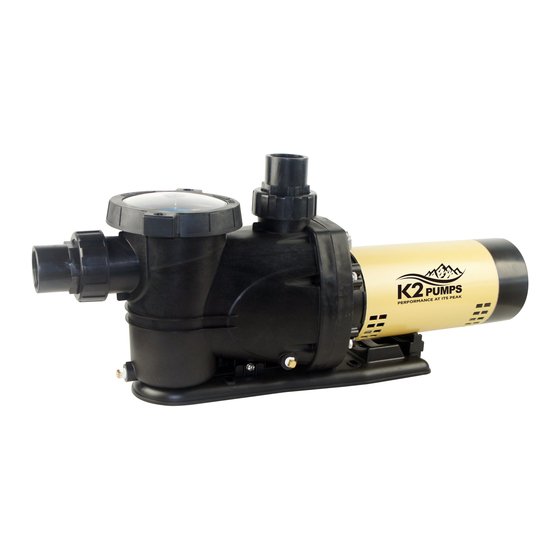

K2 Pumps PPI10001SPK Owner's Manual

2-speed pool pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

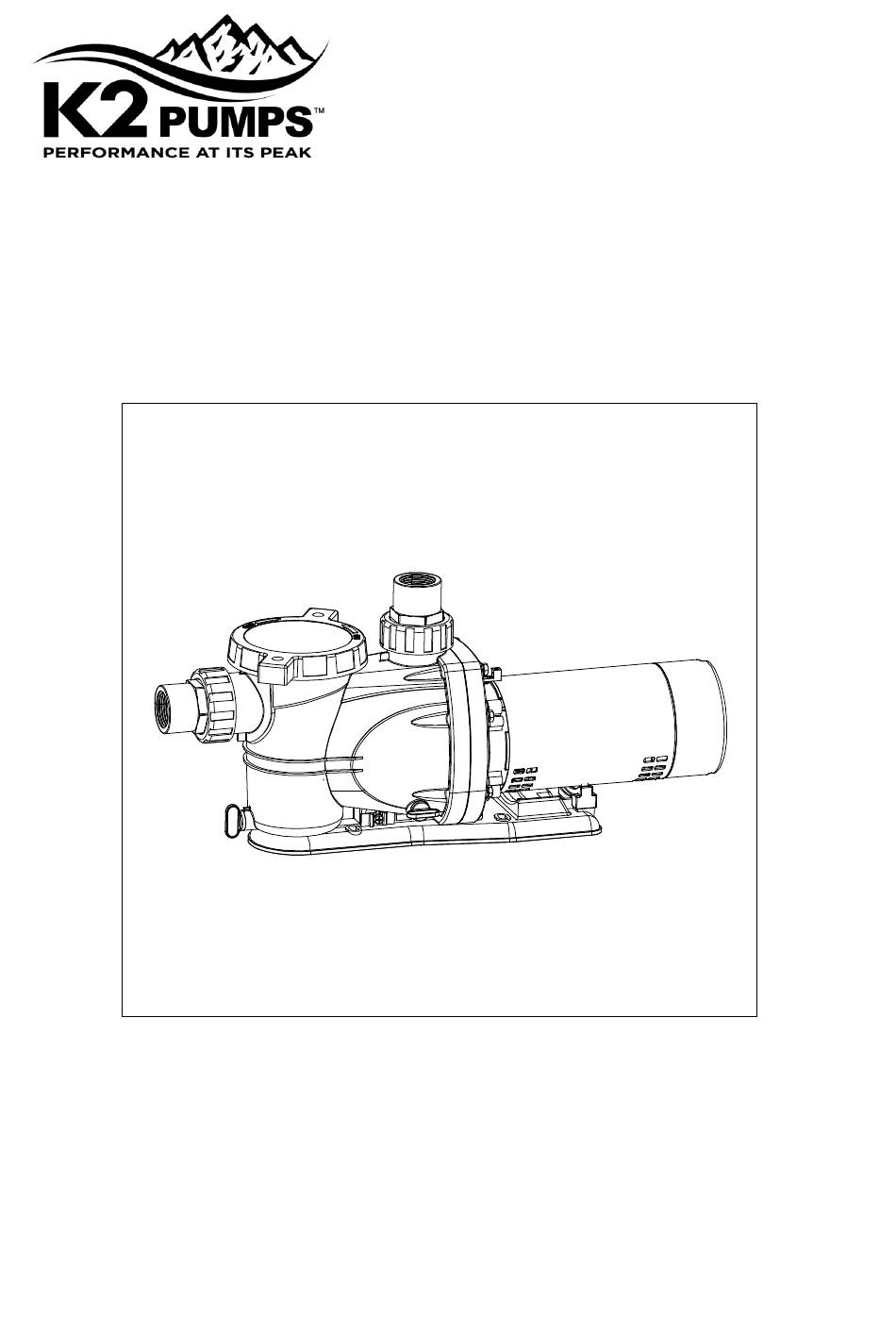

Model: PPI10001SPK
PPI15001SPK
OWNER'S MANUAL
2-SPEED POOL PUMP
Questions, problems, missing parts? Before returning to the store call
K2 Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday
1-844-242-2475
www.K2pumps.com
Copyright © 2020, GP Enterprises Co., Ltd.
K2Man-31 (Rev. 12/28/20)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPI10001SPK and is the answer not in the manual?

Questions and answers

Related Manuals for K2 Pumps PPI10001SPK

Summary of Contents for K2 Pumps PPI10001SPK

  • Page 1 Model: PPI10001SPK PPI15001SPK OWNER’S MANUAL 2-SPEED POOL PUMP Questions, problems, missing parts? Before returning to the store call K2 Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-844-242-2475 www.K2pumps.com Copyright © 2020, GP Enterprises Co., Ltd. K2Man-31 (Rev. 12/28/20)

  • Page 2: Safety Instructions

    PERFORMANCE GPM of Water @ Total Feet of Lift (high speed) Max. Model Lift 0 ft. 10 ft. 20 ft. 30 ft. 40 ft. 50 ft. PPI10001SPK 75.0 68.0 56.0 43.3 25.0 48 ft. PPI15001SPK 1-1/2 96.0 86.0 76.0 64.0 50.0...
  • Page 3 DANGER：Risk of hazardous pressure. Stand clear of pump and filter during start-up. Pool and spa circulation systems operate under high pressure. When any part of the circulating system (i.e. locking ring, pump, filter, valves, etc.) is serviced, air can enter the system and become pressurized. Pressurized air can cause the pump housing cover filter lid and valves to violently separate which can result in severe personal injury or death.

  • Page 4: Pre-Installation

    caution when installing and programming to limit the pump's performance potential with old or questionable equipment. This appliance is not intended for use by persons (including children) of reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

  • Page 5: Package Contents

    PACKAGE CONTENTS Part Description Pump Union Nut Union Adapter O-ring MATERIALS REQUIRED (NOT INCLUDED) Additional items needed Teflon tape As needed Rigid pipe As needed Ball valve As needed Union As needed Elbow As needed Adapter As needed PVC cement IAPMO Certified Anti-entrapment Cover As needed SPECIFICATIONS...
  • Page 6 Allow use of short, direct suction pipe (to reduce friction losses).  Allow for gate valves in suction and discharge piping.  Have adequate floor drainage to prevent flooding.  Be protected from excess moisture.  Allow adequate access for servicing pump and piping. ...
  • Page 7 Suction Outlets per Pump Provide at least two hydraulically balanced main drains, with covers, as suction outlets for each circulating pump  suction line. The centers of the main drains (suction outlets) on any one suction line must be at least 3 ft. apart. The system must be built so that it cannot operate with the pump drawing water from only one main drain.
  • Page 8 WARNING: Risk of explosion. Do not ground to a gas supply line. Voltage Voltage at motor must be not more than 10% above or below motor name plate rated voltage or motor may overheat, causing overload tripping and reduced component life. If voltage is less than 90% or more than 10% of rated voltage when motor is running at full load, consult power company.

  • Page 9: Operation & Storage

    Pump must be permanently connected to circuit. Table I gives correct wire and circuit breaker sizes for the pump alone. If other lights or appliances are also on the same circuit, be sure to add their amp loads to pump amp load before figuring wire and circuit breaker sizes.

  • Page 10: Draining Pump

    Priming Pump Release all pressure from filter, pump, and piping system; see the filter owner’s manual. In a flooded suction system (water source higher than pump), pump will prime itself when suction and discharge valves are opened. If pump is not in a flooded suction system, unscrew and remove trap cover; fill trap and pump with water. Do not lubricate the trap cover O-ring.

  • Page 11: Care And Cleaning

    5. Be sure motor is kept dry and covered. Startup For Winterized Equipment 1. Remove any temporary weather protection placed around system for shut down. 2. Follow filter manufacturer’s instructions for reactivation of the filter. 3. Inspect all electrical wiring for damage or deterioration over the shut-down period. Have a qualified service man repair wiring as needed.

  • Page 12: Mechanical Seal

    Mechanical seal 10. Clean seal cavity in seal plate and clean motor shaft. Pump Reassembly/Installing New Seal 1. Ceramic seat must be clean and free of dirt, grease, dust, etc. Wet outer edge with small amount of liquid detergent; press ceramic seat into seal plate cavity firmly and squarely with finger pressure.

  • Page 13: Troubleshooting

    TROUBLESHOOTING Risk of electric shock. Can shock, burn or kill. WARNING: Disconnect power before working on pump or motor.  Read and understand safety and operating instructions in this manual before doing any work on pump!  Only qualified personnel should electrically test pump motor! ...
