Summary of Contents for Homegear A001-07KR/C Series

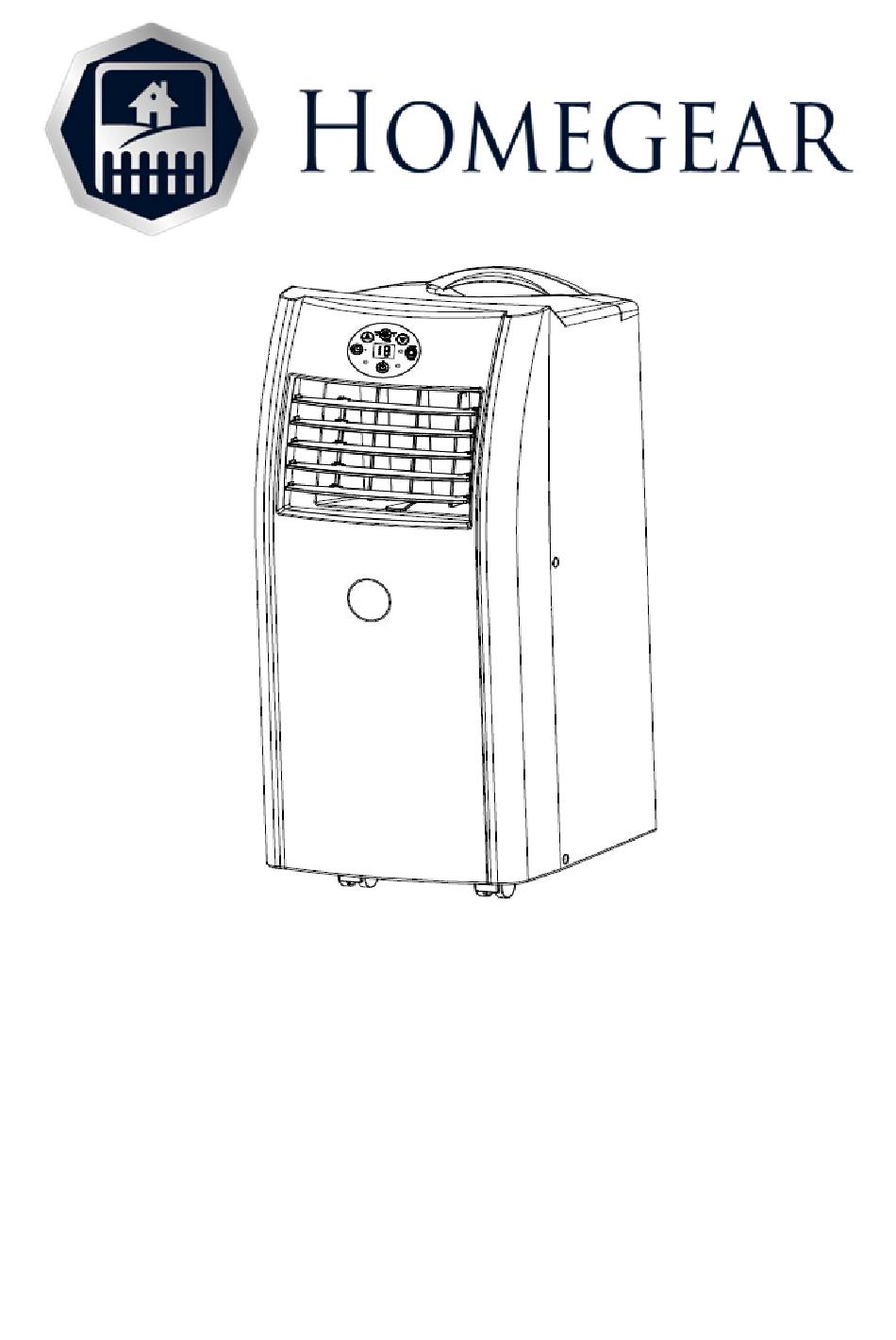

- Page 1 PORTABLE AIR CONDITIONER A001-07KR/C, A001-08KR/C, A001-09KR/C, A001-10KR/C SERIES...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Please read following safeguards carefully before using the unit and retain for future reference ·This unit is for domestic use only ·This unit should only be used indoors and placed in a dry environment. · Do not install in the laundry ·... - Page 3 ·Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners, as these products can damage the surface of the air conditioner · Do not use with an adaptor · Do not use with an extension cord · The unit must be earthed ·...
- Page 4 Accessories 1. Exhaust Pipe 2. Adapter 3. Remote control 4. Window Bracket Placement ·Place the unit on a smooth level floor, and make sure there is a distance of at least 50cms from all objects (fig.1) (fig.1) Installation ·Attach the adapter onto exhaust pipe. Attach the exhaust pipe into exhaust connector by turning anti clockwise (fig.2) Adjust the window bracket as per the width or height of the window, and attach the exhaust pipe to it.
- Page 5 (fig.3) (fig.4) Warning The fully extended length of the exhaust pipe is 1500mm. It is recommended you use it at its shortest length Do not replace or lengthen the exhaust pipe. Doing so may result in the unit not working properly or not working at all.
-
Page 6: Control Panel
Control Panel 1 Power button 12 Low fan speed indicator 2 Mode button 13 Timer mode indicator 4 Down button 14 Display window 5 Up button 15 Sleep mode indicator 6 Timer button 16 Cooling mode indicator 7 Fan button 17 Dehumidify mode indicator 8 Receiver for remote control 18 Fan mode indicator... -
Page 7: Water Drainage
The sleep mode will not work when the unit is in the dehumidifying or fan mode. When the water unit is full or in standby mode the sleeping mode will be cancelled TIMER: Press to enter into the timer setting mode. Use the up/down buttons to set up the on/off time from 1 to 24 hours. -
Page 8: Remote Control
Remote Control 1. Power 2. Timer 3. Down 4. Mode 5. Up 7. Sleep Maintenance Before doing any maintenance, make sure the unit is switched off and the power plug pulled out of the wall socket Cleaning Wipe the outside of the unit with a damp cloth and dry with a soft cloth. Do not use any harsh chemicals or abrasives. -
Page 9: Troubleshooting
Seasonal Cleaning If the unit will not be used for a long time, please do the following: · Pull out drainage plug to let out any water · Let the unit run under fan mode for 2 hours to dry out the unit ·...
