Summary of Contents for ARKSEN 002-AU-20439

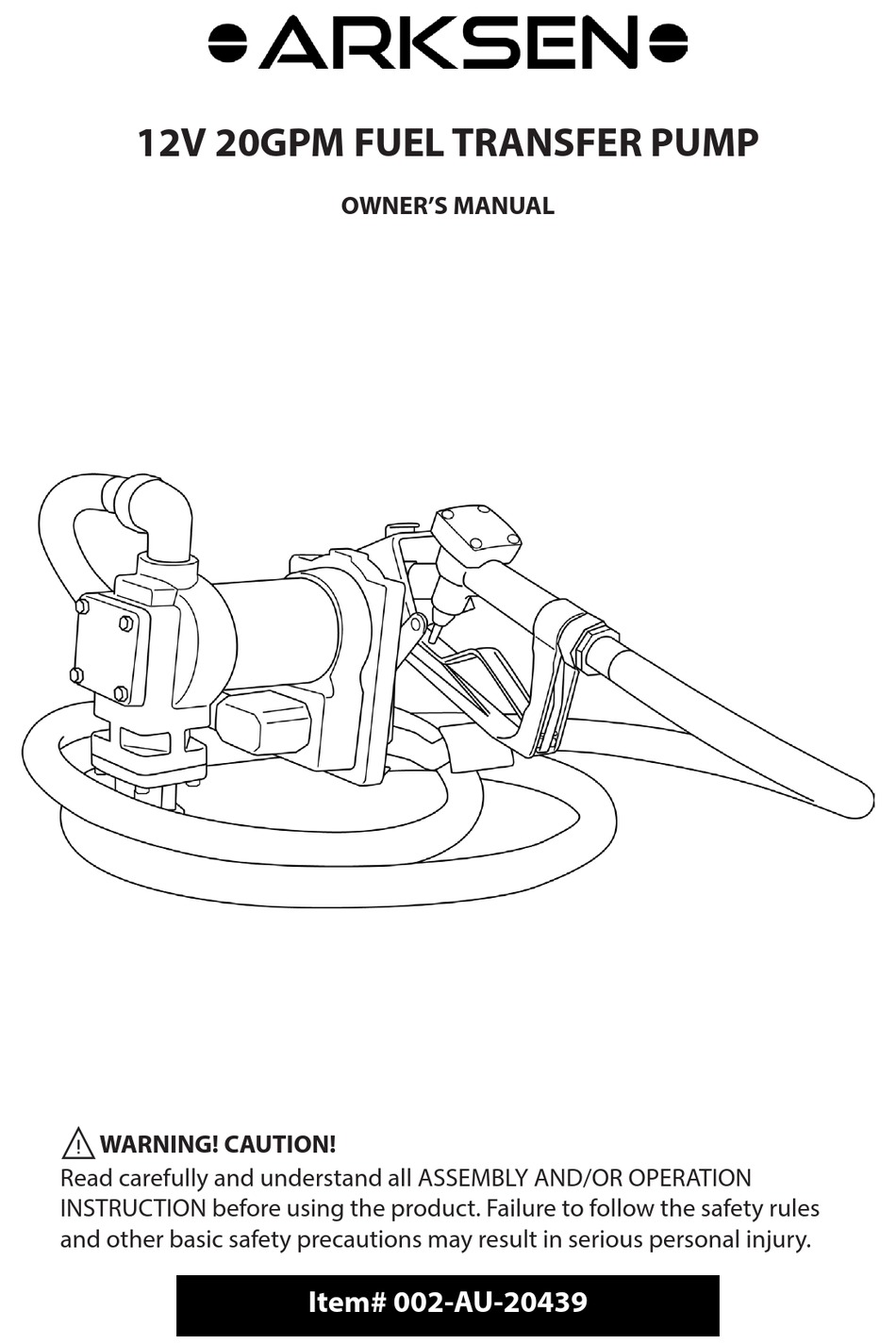

- Page 1 12V 20GPM FUEL TRANSFER PUMP OWNER’S MANUAL ⚠ WARNING! CAUTION! Read carefully and understand all ASSEMBLY AND/OR OPERATION INSTRUCTION before using the product. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 002-AU-20439...
-
Page 2: Table Of Contents
owner’s manual Thank you for purchasing our product. This manual covers operation and maintenance information about the product. Read carefully and understand all instruction before using the product. All information in this publication is based on the latest product information available at the time of approval for printing. -
Page 3: Warning And Precaution
owner’s manual When using electrical appliances, basic safety precaution should always be followed including the following: READ ALL INSTRUCTION BEFORE USE • All electrical wiring must be in compliance with local, state, and national electrical code. • This product must be properly grounded before use to reduce the risk of electrical shock. •... -
Page 4: Product Specification
SPECIFICATION Model No. 002-AU-20439 Dimension 14” x 9” x 5” Net Weight 30.9 lb Gross Weight 36.4 lb Flow Up to 20 GPM Max. Total Head 36.96 ft Max Suction Lift 8 ft Inlet Port 1” Outlet Port 1”... -
Page 5: Parts And Features
owner’s manual PARTS AND FEATURES Package Content • Pump Unit • Hose • Nozzle • Telescoping Suction Pipe • Steel Elbow • Power Cord • Grounding Cord • Seam Butt Connectors Steel Elbow Pump Unit Nozzle Hose Switch Lever Inlet Flange Adapter Junction Box... -
Page 6: Installation Guide
owner’s manual INSTALLATION GUIDE This product is designed to be mounted on a skid tank using a threaded inlet flange supplied with the pump. The pump features an integral bypass valve to recirculate and fluid when the pump is operating with the nozzle closed. - Page 7 owner’s manual ELECTRICAL WIRING GROUNDING The pump needs to be grounded through the supply tank or vehicle frame. To install the grounding wire, Remove the grounding screw located next to the junction box cover. Insert the grounding screw through the eyelet of the green grounding wire and refasten to the pump.
- Page 8 owner’s manual ELECTRICAL WIRING WIRING TO A VEHICLE BATTERY ⚠ATTENTION! Make sure the ground wire already installed and is touching the vehicle frame before connect the power cord to the battery. Install a fuse box or circuit breaker close to the live wire. NOTE: You may need to cut the wire to complete the installation.
-
Page 9: Operation Instruction
owner’s manual OPERATION INSTRUCTION Remove the nozzle from the nozzle boot and insert the nozzle into the container to be filled. Move the switch lever to “ON” position to power the pump. Press the nozzle lever to pump fuel. Release the lever when the desired amount has been dispensed. -
Page 10: Troubleshooting
owner’s manual Troubleshooting Problem Possible Reason Solution Check for leaks or obstructions Suction Line Problem in suction line. Remove and inspect valve. It Bypass Valve Open must be able to move freely and free of debris. Pump won’t Prime Check vanes and nicks, burrs Sticking Vane and wear. - Page 11 owner’s manual Troubleshooting Problem Possible Reason Solution Make sure the voltage matches Incorrect Voltage the unit requirement. Pump Runs Slowly Check vanes and nicks, burrs Sticking Vane and wear. Wiring Problem Check Loose Connections. Remove and inspect valve. It Bypass Valve sticking must be able to move freely and free of debris.
- Page 12 owner’s manual Troubleshooting Problem Possible Reason Solution Motor Does not work No Power Check wiring and power supply. Bad O-ring Gasket Check all O-ring Gasket. Fuel leakage Bad Shaft Seal Reapply Sealant. Loose Connection Re-tighten all the joints.
