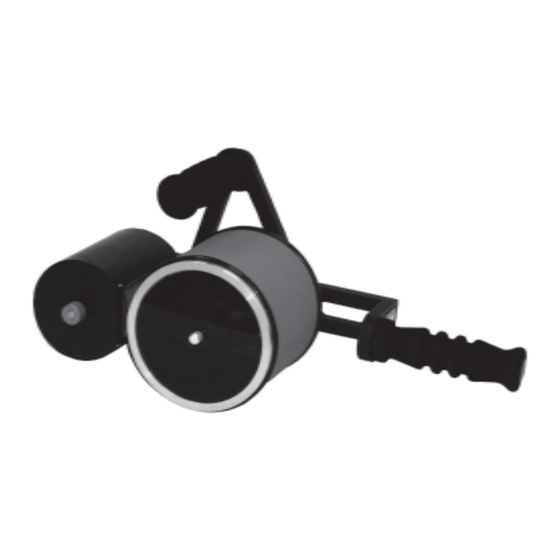

- Page 1 OWNER’S MANUAL POROUS LARGE CAPACITY HAND PRINTERS ALL MODELS INSTALLATION - OPERATION - MAINTENANCE Hitt Marking Devices 3231 W. MacArthur Blvd., Santa Ana, CA 92704 PH: (714) 979-1405 FAX: (714) 979-1407 E-Mail: sales@hittmarking.com Website: www.hittmarking.com HPL-16006...
-
Page 2: Table Of Contents
IMPORTANT NOTE UNIVERSAL products are manufactured to exacting standards and every available step has been taken to assure your complete satisfaction. It is most important, for best results, that you read and carefully follow the instructions contained i n this manual. -
Page 3: Preface
PREFACE The Universal HPL Hand Printer has been designed to print lot numbers, date codes, and text information on cartons, web materials, and other conveyed products. Universal HPL Hand Printers are precision engineered to give years of reliable service under the most demanding conditions. FEATURES 1- Indexing (spot printing) and non-indexing (continuous printing) models with print areas up to 3-15/ 16"... -
Page 4: Specifications
SPECIFICATIONS HPL PRINTER SPECIFICATIONS HPL-100 SERIES Model Shown: HPL-100 17.19” (436.6 MM) 16.41” (416.8 MM) 3.68” (93.5 MM) 6.71” (170.4 MM) 1.04” (26.4 MM) 5.74” (145.8 MM) DUST COVER REMOVED TO SHOW INDEX MECHANISM 8.45” (214.6 MM) NET WEIGHT: 6.1 LBS. (2.8 KG) MAXIMUM DIE SIZE - US STANDARD: 1”... -
Page 5: Hpl-200 Series
SPECIFICATIONS HPL PRINTER SPECIFICATIONS HPL-200 SERIES Model Shown: HPL-200 17.19” (436.6 MM) 16.41” (416.8 MM) 5.58” (141.7 MM) 6.71” (170.4 MM) 1.95” (49.5 MM) 5.74” (145.8 MM) DUST COVER REMOVED TO SHOW INDEX MECHANISM 8.45” (214.6 MM) NET WEIGHT: 6.9 LBS. (3.1 KG.) MAXIMUM DIE SIZE - US STANDARD: 1-15/16”... -
Page 6: Hpl-300 Series
SPECIFICATIONS HPL PRINTER SPECIFICATIONS HPL-300 SERIES Model Shown: HPL-300 17.19” (436.6 MM) 16.41” (416.8 MM) 6.58” (167.1 MM) 6.71” (170.4 MM) 2.9” (73.7 MM) 5.74” (145.8 MM) DUST COVER REMOVED TO SHOW INDEX MECHANISM 8.45” (214.6 MM) NET WEIGHT: 8.0 LBS. (3.6 KG.) MAXIMUM DIE SIZE - US STANDARD: 2-15/16”... -
Page 7: Hpl-400 Series
SPECIFICATIONS HPL PRINTER SPECIFICATIONS HPL-400 SERIES Model Shown: HPL-400 17.19” (436.6 MM) 16.41” (416.8 MM) 7.58” (192.5 MM) 3.94” (100.1 MM) 5.74” (145.8 MM) DUST COVER REMOVED TO SHOW INDEX MECHANISM 8.45” (214.6 MM) NET WEIGHT: 9.1 LBS. (4.1 KG.) MAXIMUM DIE SIZE - US STANDARD: 3-15/16”... -
Page 8: Indexing & Non-Indexing Models
SPECIFICATIONS INDEXING AND NON-INDEXING MODELS Universal HPL Hand Printers are available in both indexing and non-indexing models. Indexing printers feature a print drum indexing mechanism which provides print registration capabilities when carton print- ing. When the printer is lifted off the surface, after the print operation, the print drum automatically rotates back to the same starting or “home”... -
Page 9: Printing Dies
SPECIFICATIONS RIBtype® PRINTING DIES Universal HPL Hand Printers are designed to use RIBtype® printing dies which have a molded rib backing. The ribs on the back of the die snap into mating ribs in the Drum Cover on the print drum as shown in Figure 4. -
Page 10: Ink Rolls
SPECIFICATIONS INK ROLLS Universal offers two ink roll options for the HPL Hand Printers. Each has a unique characteristic suitable for a specific printing application. The printers are designed to accommodate both types of ink rolls without modifica- tion. A detailed review of your printing requirements will determine the best choice of ink rolls for your particular application. -
Page 11: Quick Start
QUICK START PRE-INKING XF NEOPRENE INK ROLLS If you received a pre-inked ink roll with your printer, skip this procedure and go to the next page for instructions on roll installation. Universal HPL Hand Printers are shipped from the factory fully assembled and, unless otherwise specified, includes a dry XF Neoprene Ink Roll. -
Page 12: Installing The Pre-Inked Roll
QUICK START INSTALLING THE PRE-INKED ROLL All pre-inked rolls are shipped oversaturated with ink, before installation the excess ink must be removed. Roll the ink roll across a clean piece of paper or cardboard to remove the excess ink. Inks will stain clothing, furniture, carpeting and your hands. Rubber gloves should be worn during the following procedures. - Page 13 QUICK START 5- Place the ink roll on the Axle. Do not allow the ink roll to con- tact the Print Drum Bearer Rings during installation. FIGURE 13 6- Replace the roll cover. Note that the notch in the cover must be aligned with the tab on the base plate.
-
Page 14: Printing Die Positioning For Indexing Applications
QUICK START PRINTING DIE POSITIONING FOR INDEXING APPLICATIONS Non-indexing models of the HPL Hand Printer do not offer print registration capabilities, therefore mounting the printing dies at a specific location on the print drum is not important. On indexing machines, the position of the die on the print drum will determine the location of the print on the carton. -
Page 15: Optional Type Blocking Kit
QUICK START OPTIONAL TYPE BLOCKING KIT When using small individual characters with only a two or three rib backing, an optional Type Blocking Kit (Stock No. UR-BK) should be used to support the leading and trail- ing ends of the type as shown. Characters which have only a 2 or 3 rib backing do not have the stability of the larger character sizes when snapped into the drum cover. -
Page 16: Maintenance
MAINTENANCE CLEANING THE PRINTER / CLEANING THE PRINTING DIES If proper installation procedures are followed, the maintenance of your new printer will be limited to periodic cleaning to remove dust and any ink residue which may accumulate during operation. The frequency of this maintenance procedure is dependent upon the environmental conditions and proper inking of the printer. -
Page 17: Pre-Inking Microcell Rolls
MAINTENANCE PRE-INKING MICROCELL ROLLS The optional Microcell Ink Roll is available for specific applications. Because of the harder density of this material the inking process of the roller must be done slowly. The following instructions will guide you through the proper inking process to insure maximum performance of your printer. -
Page 18: Print Drum Index Mechanism Maintenance
PRINT DRUM INDEX MECHANISM MAINTENANCE PRINT DRUM INDEX MECHANISM DISASSEMBLY / ASSEMBLY 1- Using a 5/64” hex wrench, loosen the Nylon Tip Set Screw located in the top rim of the Print Drum and remove the dust cover. FIGURE 28 2- To relieve the spring tension on the index mechanism, ro- tate the Print Drum approximately 3/4 turn. -
Page 19: Replacing Print Drum Index Springs
PRINT DRUM INDEX MECHANISM MAINTENANCE 5- Using a 1/8" hex wrench, loosen the Brass Tipped Set Screw located in the side of the Index Ring. This screw must be turned counterclockwise at least two full revolutions. FIGURE 33 6- Remove the Index Ring from the axle by turing it in a Counter- Clockwise direction. -
Page 20: Removing & Replacing Index Block "B
PRINT DRUM INDEX MECHANISM MAINTENANCE REMOVING AND REPLACING INDEX BLOCK “B” If the Indexing Assembly Block “B” is removed during disassembly it must be realigned using the fol- lowing procedure. 1- To remove Index Block “B” from the Print Drum, roll down the Drum Cover directly behind the Index Block to expose the In- dex Assembly Mounting Screw. - Page 21 PRINT DRUM INDEX MECHANISM MAINTENANCE 4- If the Brass Tip Set Screw is not pointing in the direction shown in Figure 41, rotate the Index Ring in a Counter-Clock- wise Direction until it points in the direction shown. SET SCREW FIGURE 41 5- Tighten the Brass tip Set Screw securely to prevent the In- dex Ring from rotating when under spring tension.
-
Page 22: Parts Diagrams And Parts Lists
HPL PRINTER KEY NO. QTY. REQUIRED PART NUMBER DESCRIPTION MC-02 SCREW, 1/4-20 X 5/8 LG SOC HD CAP SIDE FRAME HPL-001 3/8” BRASS FLAT WASHER HP-04 MRM-CL20 KNOB HPL-HA HANDLE ASSEMBLY HPL-003 INKING SYSTEM MOUNTING PAD HPL-004 INK ROLL BASE PLATE HPL-008 1-1/8”... - Page 23 HPL PRINTER QTY. REQUIRED DESCRIPTION KEY NO. PART NUMBER HPL-RC1 1-1/8” ROLL COVER ASSEMBLY 2” ROLL COVER ASSEMBLY HPL-RC2 3” ROLL COVER ASSEMBLY HPL-RC3 4” ROLL COVER ASSEMBLY HPL-RC4 COVER RETAINING KNOB HPL-018 SET SCREW, 8-32 X 3/16” LG N.T.S. CF-05 CM-13 DUST COVER W/ KNURLED KNOB...
- Page 24 HPL PRINT DRUM DESCRIPTION PART NUMBER KEY NO. QTY. REQD. CLP/HPL-100-RIBtype® DRUM COVER CLP-BL1 CLP-BL2 CLP/HPL-200-RIBtype® DRUM COVER CLP/HPL-300-RIBtype® DRUM COVER CLP-BL3 CLP/HPL-400-RIBtype® DRUM COVER CLP-BL4 CLP/HPL-100-RIBtype® DRUM COVER - METRIC CLP-BL1T CLP/HPL-200-RIBtype® DRUM COVER - METRIC CLP-BL2T CLP/HPL-300-RIBtype® DRUM COVER - METRIC CLP-BL3T CLP/HPL-400-RIBtype®...
- Page 25 HPL INDEXING ASSEMBLY PART NUMBER DESCRIPTION KEY NO. QTY. REQUIRED SNAP RING CF-28 CLP-IA INDEX ASSEMBLY BLOCK “A” CF-27 INDEX ASSEMBLY MOUNTING SCREW INDEX ASSEMBLY BLOCK “B” CLP-IB CS-07 DRUM INDEX SPRING CLP-IC INDEX ASSEMBLY BLOCK “C” CF-04 1/4-20 BRASS TIP SET SCREW CLP-IR2 INDEX RING ASSEMBLY CLP-IP...
