AV8V6

Android Naviceiver for Volkswagen/Seat/Skoda

- 1 -

Table of Contents

Need help?

Do you have a question about the AV8V6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mic AV8V6

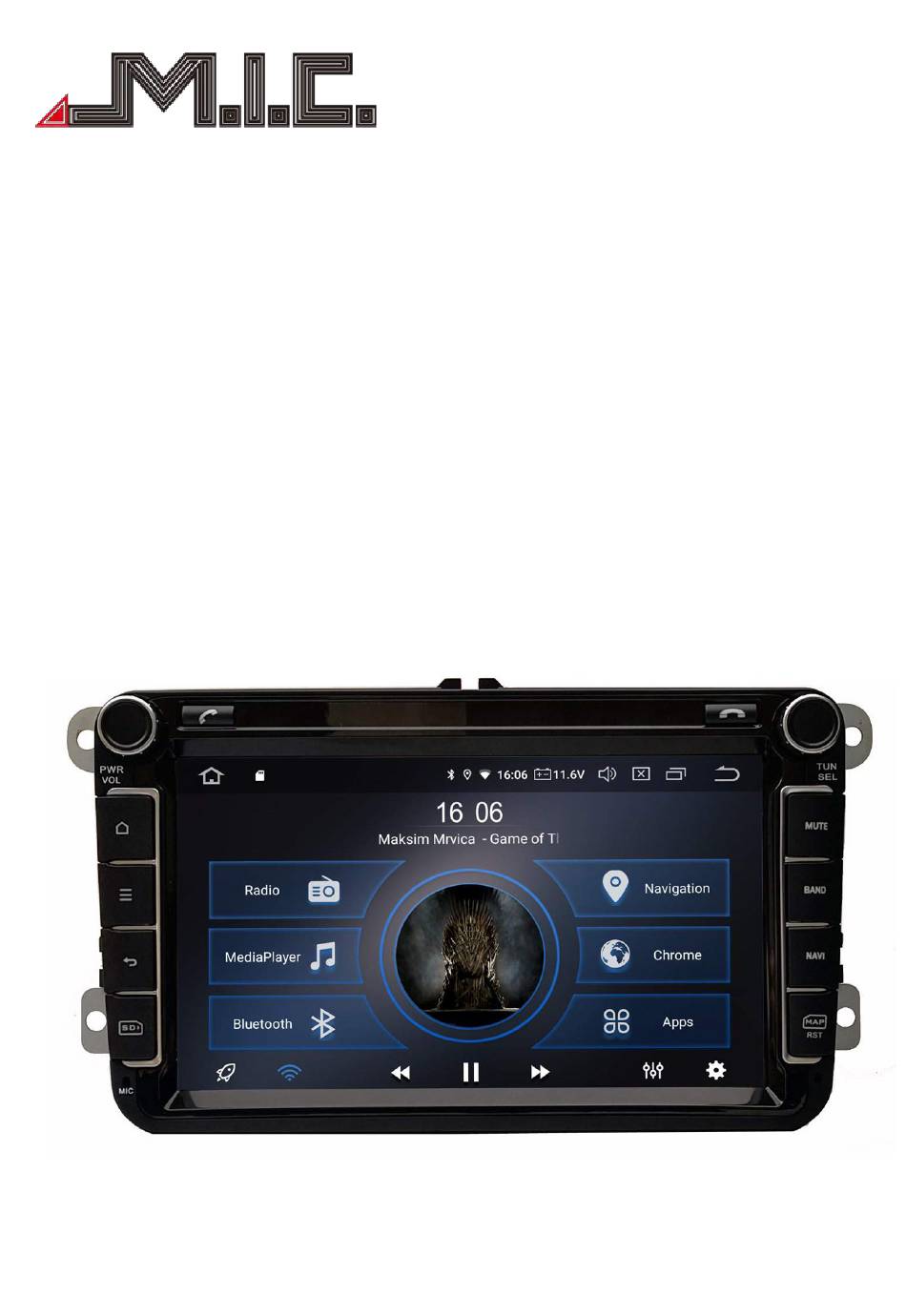

Page 1 AV8V6 Android Naviceiver for Volkswagen/Seat/Skoda - 1 -...
Page 2: Table Of Contents
Parameter ....................................- 6 - Packing list ....................................- 7 - Wiring Diagram (Volkswagen to GOLF 6 platform) ......................- 7 - Front Panel (AV8V6) ................................. - 8 - Language Set-Up ..................................- 9 - HOME ......................................- 9 - Radio ......................................
Page 3: Instructions
Instructions This user manual as a product guidance only, does not mean hardware and software configuration description of products, product and accessories may vary by regions. As described product function contents in this user manual do not match with actual situation, please take actual function as standard. Remarks: In order to ensure your proper and safety use, please read this user manual carefully before using.
Page 4: Copyright Information
Do not use the player in strong magnetic environment; GPS, Bluetooth, digital TV will be affected. Please turn off the player before switching off the ignition switch of your car, since power switch will consume the car’s battery. Please turn off or pull out the ignition key before installation, as battery current leakage of short circuit Maybe caused when the engine is running.
Page 5 Front AV8V6: Back-panel connection for AV8V6: - 5 -...
Page 6: Parameter
Accessories for AV8V6: Parameter Operating Voltage: 9V-16V DC Maximum operating current: ＜11A @14.5V Standby operating current: 6MA Operating Temperature: -25℃～+65℃ Storage Temperature: -40℃～+80℃ Relative Humidity: 5％～95％（No frost） Location mode: GPS Location accuracy: ≤15M Positioning precision of speed: ≤0.1M/S - 6 -...
Page 7: Packing List
Packing list ● Standard accessories Standard spec Quantity Main unit with integrated CAN, DSP 1 pc and DAB+ GPS Antenna 1 pc WIFI Antenna 1 pc DAB+ Antenna 1 pc USB Cable 1 pc Wire Harness 1 pc Quick start guide (German) 1 pc Wiring Diagram (Volkswagen to GOLF 6 platform) - 7 -...
Page 8: Front Panel (Av8V6)
Front Panel (AV8V6) PWR: Power ON/OFF TUN: Tune(Change channels on the radio) VOL: Volume knob (Rotate the knob clockwise to SEL: Select (Rotate the knob clockwise ① raise the sound; Instead, shift to decrease to select the previous song/video; Instead, the volume) shift to select the next one).
Page 9: Language Set-Up
Language Set-Up The default language is German. If you want to use another language, click on the gear in the right bottom corner and select „System“ > „Sprachen & Eingabe“ > „Sprachen“. You can add further languages by clicking on „Sprache hinzufügen“. Set up your preferred language by pressing on it and moving it to the top (No.
Page 10: Radio
This product includes Navigation, Radio, Bluetooth, DVR, 3G, WiFi, Digital TV etc functions. You can click the function icon to enter relevant function for operation. Radio Click the app icon to enter Radio mode, the radio has AM and FM waves ,it can be switched by click the switch button,as below.
Page 11: Bluetooth
Short press to search forward 0.1m, and long press to previous radio station; Short press to search backward 0.1m, and long press to next radio station; (Remarks:for some models, there is TUNER knob on the front panel, you also can rotate it to search frequency.) Short press to search for radio stations automatically from low frequency to high frequency;...
Page 12 Bluetooth Dial-up Bluetooth dial-up Bluetooth phone book Bluetooth call records Bluetooth pair, click to search Bluetooth match names Bluetooth setting Answer/ dial Hang up Delect the dial number, long press to delect shortly Switch, click it to mutually switch the voices between phone and speaker of the player, when Bluetooth calling Bluetooth Phone book call in...
Page 13 Bluetooth Pair Search for paired device(mobile) name Connect with searched paired device(mobile) name Disconnect selected Bluetooth pairing records Delete selected Bluetooth pairing records Bluetooth Setting 1) Set up device name of Bluetooth 2) Set up password when connecting Bluetooth - 13 -...
Page 14: Music
Music Click the app icon to enter music mode, as below; plays audio files from SD card or USB; supports WMA, MP3 etc. sound mode switch previous stop/play next playlist lyrics/Spectrum switch Video Click the app icon to enter video play mode. It can support 1080P video play. - 14 -...
Page 15: Avin
Fullscreen button Loop playing Mode Previous chapter Play/Pause Stop Next chapter Video list AVIN Click the app icon to enter AV In mode. It supports displaying the video/image from external device, and also audio output, as below. - 15 -...
Page 16: File Manager
File Manager Click the app icon to enter File manage mode.Click icon to select the files to remove, select the copy icon to copy files, and the paste icon to paste; if you don’t need the file, press the delete icon to delete it.
Page 17: Gps Navigation
GPS Navigation Preinstalled you’ll find the navigation app „HERE WeGo“. It’s capable of navigate offline and online across the European continent. Further you can get map updates for free and live traffic data with an internet connection. As an alternative you’ll find also GoogleMaps in your preinstalled apps. DAB+ Digital Audio Broadcasting is usually abbreviated to “DAB”;...
Page 18: Easy Connect (Mirror Link)
Easy Connect (Mirror link) Android USB: 1. Connect mobile phone to the device by USB cable; 2. Install mobile interconnection service; 3. Please keep mobile unlocked; 4. It will take a long time if mobile first connect; 5. Use USB cable if mobile first connect or reboot; 6.
Page 19: Settings
iPhone WiFi: 1. Open iPhone hotspot---select hotspot connection in the list on the left; 2. Connect to the hotsport; 3. Open iPhone AirPlay and Mirroring function to connect; 4. Share the audio and video of mobile to our product screen; 5.
Page 20 Account Setting: Register mailbox or set up E-mail, send and receive mails conveniently, check E-mail information easily. Language and input Setting: The player supports multi-language. You can choose different language and input method as you need. Backup and Reset: Backup the installation data, application data, other settings and account information to Google server.If the system problem happens, you can choose automatic reduction or restore the factory settings.
Page 21: Maintenance Instruction
Maintenance Instruction In rainy or very humid environment, steam condensation to water mist on dvd loader will make it failed to read DVD. Please turn off the DVD player till the inside moisture totally disperse, let it dry then turn on it and operate.
Page 22: Contact Data
Radio searching doesn't work Vehicle auto antenna Connect the auto antenna well disconnected Contact data M.I.C. GmbH Hans-Weigel-Straße 1A 04319 Leipzig GERMANY Tel: +004934158099135/36 E-Mail: info@mic-deutschland.de - 22 -...
