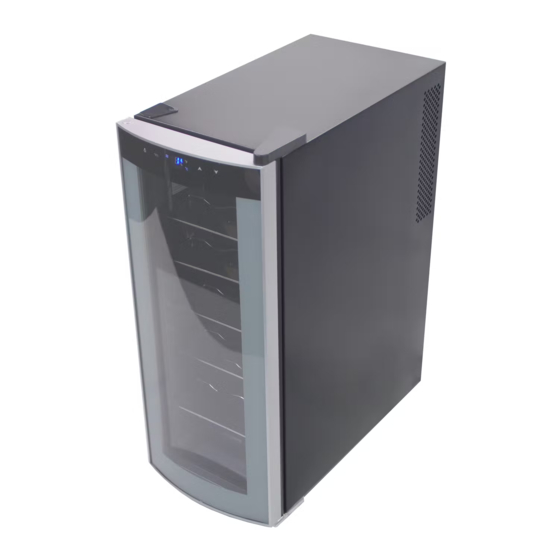

- Page 1 THERMOELECTRIC WINE COOLER Model No: ART29614...
-
Page 2: Table Of Contents
Operation Manual Index I. General Safety Precautions…………......3 II. Technical Data………………………......4 III. Illustrated Structure……………………......4 IV. Electric Principle Diagram……………………………..5 V. Operation ………………………………………….…….5 VI. Particular Precautions………………………….………..6 VII. Maintenance……………………………………..…….6 VIII. Troubleshooting……………………………………..7... -
Page 3: General Safety Precautions
I. GENERAL SAFETY PRECAUTIONS ● After removing the wine cooler from the package, make sure it is in good condition. In case of doubt, do not use it and contact an authorized service center. ● Plastic bags, nails, etc. Should be kept out of the reach of children, read the operation manual carefully and check that the rating data on the rating nameplate corresponds to your power supply. -
Page 4: Technical Data
II. TECHNICAL DATA Type ART29614 Volume (liter) 35 L Case Iron Material Door Glass Unit Dimension (W×D×H)(mm) 260x495x650 Packing Dimension (W×D×H)(mm) 300x535x660 Net Weight (Kg) 12.4 Gross Weight (Kg) 13.4 Power Consumption (KW·h/24h) 0.80(15°C) Fitting ambient temperature range of working ＜32°C... -
Page 5: Electric Principle Diagram
1. Light 2. Fan Mask 3. Chrome Shelf 4. Foot 5. Hinge cover 6. Magnetic Seal 7. Door 8. LIGHT 9. C/F button (Change from Celsius to Fahrenheit) 10. LED Display 11. Temperature UP 12. Temperature Down IV. ELECTRIC PRINCIPLE DIAGRAM... -
Page 6: Operation
V. OPERATION OF WINE COOLER The inside temperature of the thermoelectric wine cooler depends on the room temperature. The wine cooler can be adjusted in the range of 8°—18°C (± 1°C), when it is located in an ideal room temperature of 25°C.By first time turn on, without putting any bottle inside the wine cooler, the product can be cooled to 15°C after 1.5 hours and after 2~2.5 hours more will reach to the temperature programmed by the manufacturer. -
Page 7: Maintenance
VII. MAINTENANCE ● Shut off power supply before cleaning cabinet. ● Take out wine and shelves, and then clean the cabinet with soda water first and with clean water last. ● Do not use soap or detergent for the cabinet. ●... - Page 8 Bad ventilation; Place the in the area with wine cooler cold enough good ventilation and keep things away temperature inside from the fans; Fans don’t work; Check whether the plug is connected or change the fan; ...
