TOOLSTATION

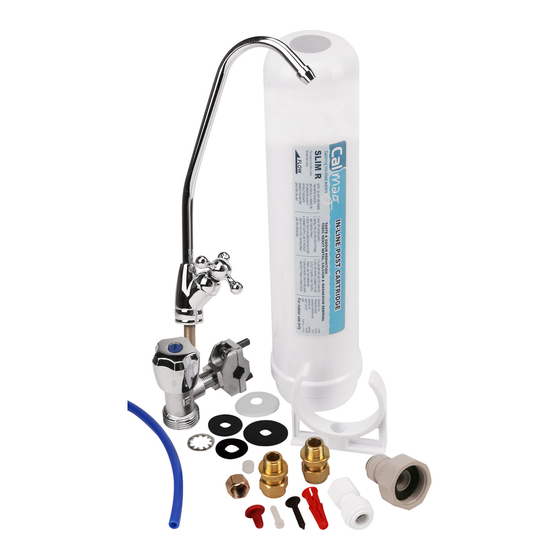

1-STAGE POINT OF USE FILTER 84582
KEY PART NO
1 ZA-CART-002013
-- ZA-DIY-004002
2 ZA-DWFK-003003
3 ZA-DWFK-003004
4 ZA-DIY-004001
5 ZA-DWFK-003006
6 ZA-DWFK-003007
7 ZA-DWFK-003008
8 ZA-DWFK-003021
9 ZA-GEN-PLUG
10 ZA-GEN-SCREW
11 ZA-DWFK-003005
BEFORE CARRYING OUT ANY
INSTALLATION CHECK CONTENTS OF
PRODUCT ARE CORRECT
TURN OFF THE WATER SUPPLY AT THE
MAINS STOP COCK
Select a suitable position for the filter kit to
be installed noting that the length of flexible
pipe supplied is used to connect both the
touch tap and the self piercing tap to the
filter. This kit is intended for cold water
supply only.
DESCRIPTION
10" Slim Cartridge
Toolstation Inhouse Instructions
Self Cutting Tap
CalTap lever drinking tap
1/4" male - 3/8" reducer (brass)
3/8" pipe
Drinking tap fitting 3/8 x 7/16
3/4"F - 3/8" pushfit fitting
2 1/2" single clip/slim filter clamp
6mm wall plug
1 1/4" screw
3/8" Pipe Insert
21
QTY. COLOUR
1 White
1
1 Chrome
1 Chrome
2 Brass
1 Various
1 Grey or White
1 Grey
1 White
1 Grey
1 Zinc Plated
2 Grey
