Owner's Manual

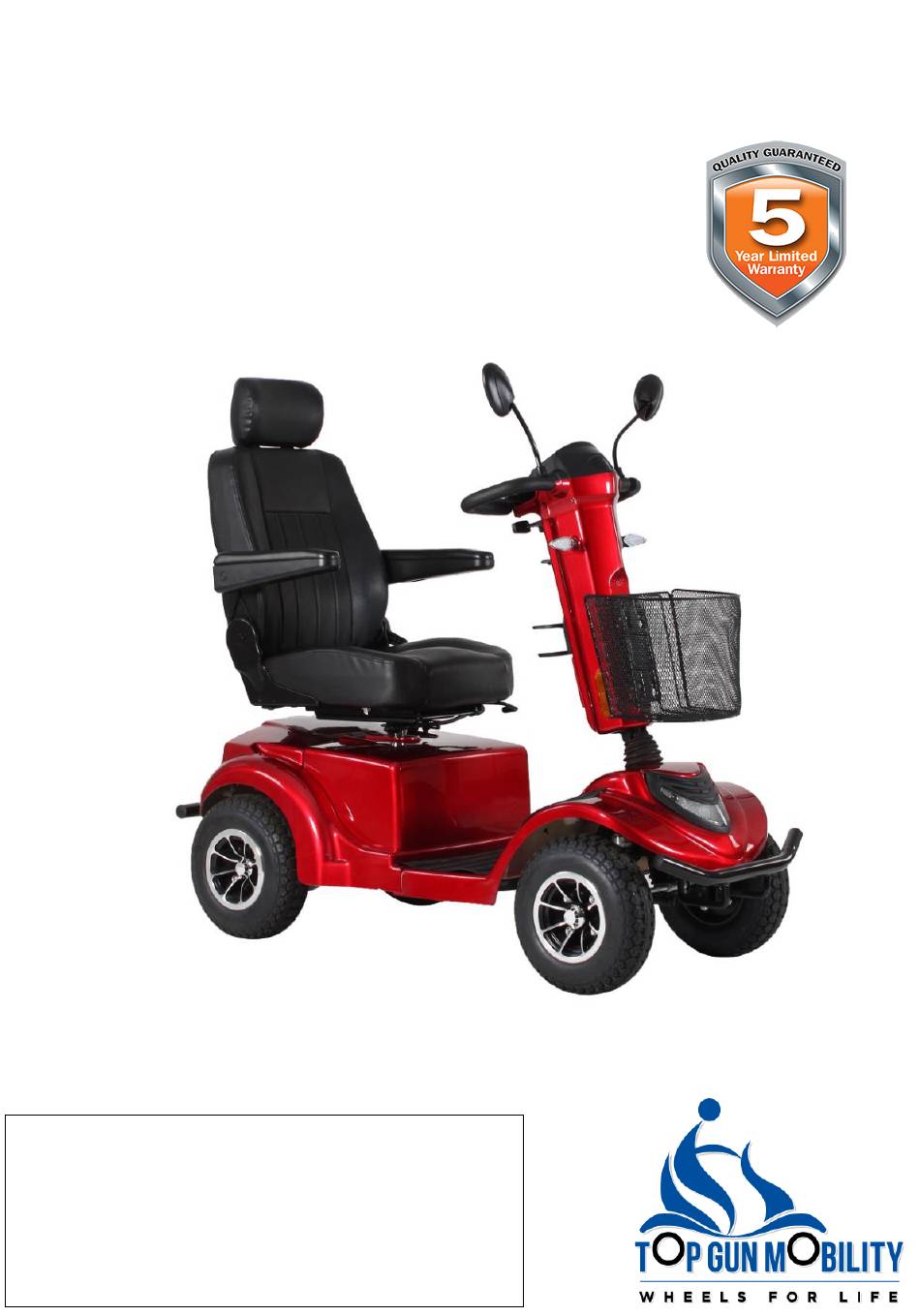

TG400R
WARNING
Read the User Manual carefully before operating the TG400R.
If you do not fully understand any part of this manual, please contact your dealer
or any of our Service Centres. Read this manual step by step, as injury or damage
may occur from misuse!
Electromagnetic Interference ("EMI") can cause powered vehicles to behave
erratically, which could be dangerous to the user. For your safety and protection, it
Page | 0
is IMPERATIVE that you take time to read Chapter 8 ("EMI WARNING") before
operating the TG400R.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TG400R and is the answer not in the manual?

Questions and answers

Related Manuals for TopGun Mobility TG400R

Summary of Contents for TopGun Mobility TG400R

  • Page 1 TG400R WARNING Read the User Manual carefully before operating the TG400R. If you do not fully understand any part of this manual, please contact your dealer or any of our Service Centres. Read this manual step by step, as injury or damage may occur from misuse! Electromagnetic Interference (“EMI”) can cause powered vehicles to behave...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Specifications III. Features Set Up Operating Your Scooter Safety Instructions VII. Battery Charging VIII. Maintenance Schedule Warranty Buyer’s Registration Form Page | 1...

  • Page 3: Introduction

    INTRODUCTION Top Gun Mobility is happy to provide you our innovative mobility scooter, the TG400R scooter. This type of mobility assistive device is designed for anyone who needs an easy and quiet mode of transportation. Our scooters are designed to provide personal freedom, as well as convenience, comfort and the assured high performance level combined with a long life cycle.

  • Page 4: Specifications

    SPECIFICATIONS Battery 40AH*2 Motor Power 400W Controller PG 70A Electric Brake Warner 24v Overall Dimensions 1305×640×1170mm Weight W/O Battery 92KG Total Weight W/Battery 120KG Max. Loading Weight 120KG Max. Speed (klm/hr) 9KM/H Turning Radius 1.45m Max. Climbing Grade 15° Wheel Size - Front 10'' pneumatic Wheel Size - Rear 10'' pneumatic...

  • Page 5: Features

    III. FEATURES  Adjustable seat height  Swing away armrests  360° swivel seat, fully reclining  Adjustable Forward/Reverse Seat  Adjustable tiller  Dynamic regenerative braking coupled with fail-safe electro-mechanical disk brake  Rear wheel direct drive with differential ...

  • Page 6: Set Up

    SET UP • Remove battery cover • Place both batteries onto the battery pan and secure them • Join the battery terminals with the receptacle from the controller box • Join all cables with the same labeling, except the wire for turning lights •...

  • Page 7: Operating Your Scooter

    Reverse speed is limited to 4.8 km/h. 4. STOP To stop the scooter, just release the throttle lever. The TG400R will quietly come to a smooth stop and electromechanical brake will automatically engage to hold the scooter in position on horizontal surface or an incline of up to 15 degrees.

  • Page 8: Safety Instructions

    SAFETY INSTRUCTIONS The following guidelines are intended to assist you in the safe operation of your TG400R scooter. If you have any questions about the correct operation of your scooter, please contact your authorized dealer. Consult your physician if in doubt of your ability to operate the scooter.
  • Page 9 2) Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances, and taxis. These usually have the antenna mounted on the outside of the vehicle; and 3) Long-range transmitters and transceivers, such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.
  • Page 10 WARNING: Radio wave sources may affect scooter control Radio waves sources, such as radio stations, TV stations, amateur radio (HAM) transmitters, mobile phones, and two-way radios, can affect motorized scooters. Following the warnings listed below should reduce the chance of unintended brake release or scooter movement, which could result in serious injury.
  • Page 11 IN SUMMARY DO NOT try to climb sharp curbs. DO NOT drive off or over obstacles exceeding 5 cm in height. DO NOT make abrupt changes in direction at high speed or while traveling on an incline. DO NOT attempt to make fast turn on flat surfaces. DO NOT climb inclines greater than 15 degrees.

  • Page 12: Battery Charging

    VII. BATTERY CHARGING To ensure the best performance and maximum battery life, we recommend frequent battery charging. Your TG400R comes with an external battery charger for your ease and convenience. The console battery display makes charging simple and easy. It is recommended that you charge your scooter every night.

  • Page 13: Maintenance Schedule

    VIII. MAINTENANCE SCHEDULE In order to obtain the best performance and lasting service life, please maintain your unit according to the following schedule and instructions: DAILY  Check brake effectiveness before you drive.  Recharge batteries fully every night. WEEKLY ...

  • Page 14: Warranty

    WARRANTY This is to certify that your TOP GUN MOBILITY product offers a limited 5 Year Warranty from the date of original purchase. This warranty is not transferable. Should a defect or operating fault arise within this period the Dealer, from where the product was originally purchased, should be notified immediately.
  • Page 15 SERVICE CHECKS AND WARRANTY SERVICE Warranty service can be performed by an authorised Top Gun Mobility Provider. Please contact your authorised Top Gun Mobility Provider for advice on the current cost affecting the service visit. YOUR OBLIGATIONS UNDER THIS WARRANTY It is a condition of this warranty that your Mobility Scooter must be maintained in accordance with the manufacturer’s servicing intervals (every 12 months) and requirements.

  • Page 16: Buyers Registration Form

    Email Address: ___________________________________________________ Selling Dealer: Top Gun Mobility 21 Brisbane Street, Ipswich QLD 4305 Phone : 07 3282 7788 Email : info@topgunmobility.com.au Model: ____________ TG400R ______________ Serial Number: _______________________________________________ Colour: _______________________________________________ Type of Purchase: Consumer Rental Other Customer Signature Dealership Representative Signature...
