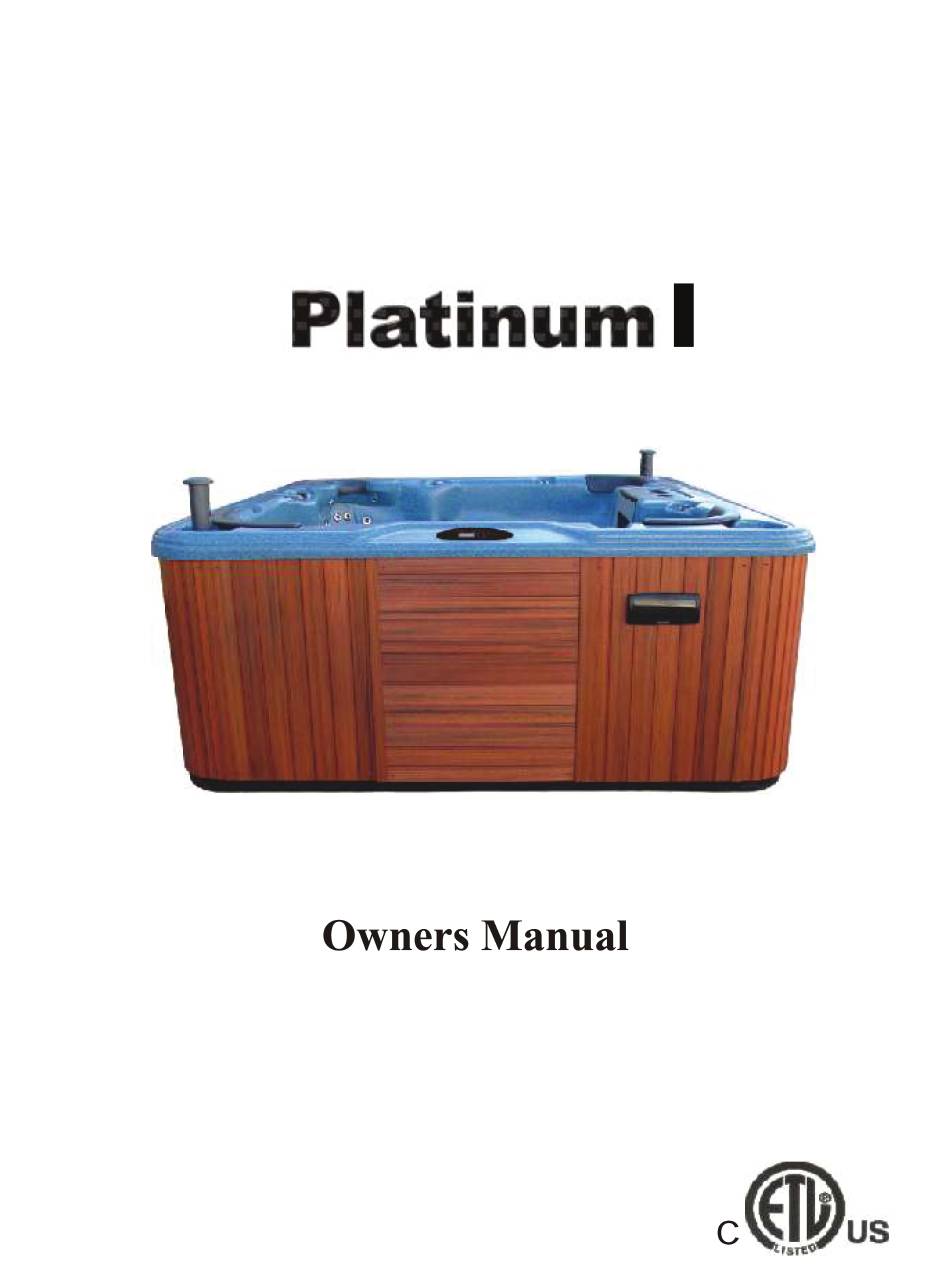

Elite Spas Platinum I Owner's Manual
  1. Manuals
  2. Brands
  3. Elite Spas Manuals
  4. Industrial Equipment
  5. Platinum I
  6. Owner's manual

Elite Spas Platinum I Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum I and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite Spas Platinum I

  • Page 2: Table Of Contents

    Table Of Contents Introduction Important Safety Instructions Choosing A Location Power Requirements Control System Diagram Wiring Diagram Specifications & Drawing Electrical Wiring Instructions Start-Up Instructions Operating Instructions 9-10 Error Identification Troubleshooting 11-12 Spa Care and Maintenance 13-14 Water Quality and Maintenance 15-17 Spa Care and Maintenance Record 18-19...

  • Page 3: Introduction

    Introduction Your choice of spa indicates that you are devoted to excellence. The manufacturer appreciates your patronage and takes pride in the tradition of quality spas that our company represents. In order to get the most out of your spa, we strongly suggest that you take time to read through this manual before you hook up and operate your spa.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When installing your spa and using this equipment, basic safety precautions should always be followed, to include the following: READ AND FOLLOW ALL INSTRUCTIONS! The following instructions are required by UL 1563 standard to be printed as a condition of their listing this product. They contain important safety information we strongly urge you to read and apply.

  • Page 5: Choosing A Location

    IMPORTANT SAFETY INSTRUCTIONS Since excessive water temperatures have a high potential for causing fetal damage during early pregnancy, pregnant or possible pregnant women should limit water temperatures to 38 C (100 F). Before entering a spa, the user should test the water temperature with an accurate thermometer.

  • Page 6: Power Requirements

    POWER REQUIREMENTS MARKING APPLICATION MODEL VOLTS AMPS LOAD 3 Wire #6 + Grd 3 HYDROQUIP CS6230C PLATINUM WARNING - ALWAYS USE A CERTIFIED ELECTRICIAN WHEN HOOKING UP YOUR NEW SPA. Fig. 1 IMPORTANT BREAKER BOX 6 Gauge Copper Wire Must Be Used Load 120 Volts (Red) From House To Box (Red)
  • Page 7 POWER REQUIREMENTS INPUTS FROM NEUTRAL/GROUND TRANSFORMER G.F.C.I. HOOK-UP CIRCUIT BREAKER PANEL CS6230S Controller 120V/240V LOAD See Page 6 Power Terminal Red L2 Neutral N Ground GR Black L1 GROUND CONDUIT SIEMENS WHT (NEUTRAL) FROM PANEL NEUTRAL G.F.C.I. (GFCI PIGTAIL TO LOAD POST) Fig.

  • Page 8: Control System Diagram

    CONTROL SYSTEM DIAGRAM CS6230C Control Equipment Pack System Wiring Directions Remove 2 screws from cover panel figure 1 and open carefully. Panel Screws Fig. 3 Heater Conector Heater Indicator Light Route the electrical wires through Red L2 conduit of the equipment pack and attach wires as shown in figure 2 to White N proper connectors.

  • Page 9: Wiring Diagram

    WIRING DIAGRAM...
  • Page 10 SPEC SHEET...

  • Page 11: Electrical Wiring Instructions

    ELECTRICAL WIRING INSTRUCTIONS IMPORTANT NOTICE: The electrical wiring of this spa must meet the requirements of the National Electrical Code (NEC) and any applicable state or local codes. The electrical circuit must be installed by a qualified electrician and approved by a local building/electrical inspection authority.

  • Page 12: Start-Up Instructions

    START-UP INSTRUCTIONS FILLING THE SPA Clear all debris from inside the spa. At the factory your spa shell was cleaned and polished, but you may want to treat it with a specially formulated spa cleaner available by phone 1-800-749-8003. Make sure the spa has been installed correctly, including electrical wiring connections as specified in the wiring diagram, and the spa is level.
  • Page 13 Control Panel Elite Spas are equipped with a main control panel, located on the side of the spa as show above (Figure 8). The main control panel controls all of the spa functions, and uses indicator lights and an integrated LED display to aid in determining the status of the spa Default System Operations: When power is applied, or there is a temporary lost of power, the system will initiate its default programming.

  • Page 14: Operating Instructions

    START-UP INSTRUCTIONS Air Jets Key. Press this key to turn blower on. A Second press will turn blower off. Blower will run for 20 minutes once you press the blower key unless you turn it off by pressing the blower key a second time. Blower can be used to cool the spa. Light Key: Press this key to turn the light on.

  • Page 15: Error Identification

    OPERATING INSTRUCTIONS Waterfall Feature The waterfall feature allows you to independently control it for customized soothing effect. The Jets1 button activates the waterfall feature. Waterfall flow can be adjusted rotating on-off valve located near main control panel of spa. Air Control Certain jet systems have their own air control valve.

  • Page 16: Troubleshooting

    TROUBLESHOOTING Nothing Operates Main Breaker is Off - Set to On. Sub-Panel Breaker Off - Set to On. Equipment GFCI Off - Set to On. Power switch in Off position - Set to On Over or High Temperature Protection On - Refer to Error Identification (High Temperature) System Fuse Indicator Illuminated Replace system fuse If power to electrical pack is OK (check L1 &...
  • Page 17 TROUBLESHOOTING No Heat Temperature Not Set Correctly - Adjust Set Point. Over temperature error.- Off - On power to reset. Current Limiting Jumper Is On - LC System (jumper 1 on CB is in right side pos on board.) Will not heat if High Speed or Blower is on.

  • Page 18: Spa Care And Maintenance

    SPA CARE AND MAINTENANCE Draining and Refilling Your spa WARNING! To prevent damage to spa's components, turn off power before draining it. Do not turn the power back on until your spa has been refilled. To gain access to the spa drain valve, remove the cabinet panel on the side of the spa under the control panel. Fig. 5 Select a safe suitable drainage capable of safely assimilating 325Gallons of water which may contain both unsanitary contaminants and chemical residue that could cause harm to plants and grass.
  • Page 19 SPA CARE AND MAINTENANCE Care Of Spa Cover To clean and condition the vinyl cover: Remove the cover from the spa and gently lean it up against a wall or fence. Using a garden hose, spray the cover to loosen and rinse away any dirt or debris. Using a sponge and/or a soft bristle brush, and using a very mild soap solution (one teaspoon dishwashing liquid with two gallons of water), or baking soda (sodium bicarbonate), scrub the vinyl top in a circular motion.

  • Page 20: Water Quality And Maintenance

    WATER QUALITY AND MAINTENANCE Water Quality In Your Spa The quality of the water in your spa is important and must be kept clean. Your program will vary depending on your water’s mineral content, and how often you use your spa, and the amount of people using it. Here are our suggested step-by-step procedures: General Information - The three fundamental areas of water maintenance.
  • Page 21 WATER QUALITY AND MAINTENANCE Balancing Total Alkalinity (TA) The recommended Total Alkalinity (TA) for your spa water is 125-150 ppm. Total Alkalinity is measure of the total levels of carbonates, bicarbonates, hydroxides, and other alkaline substances in the water. TA is referred to as the water’s “pH buffer”. It’s a measure of the ability of the water to resist changes in pH level.
  • Page 22 WATER QUALITY AND MAINTENANCE Maintaining Sanitizer Level Sanitizer is extremely important for killing algae, bacteria and viruses, and preventing unwanted organisms from growing in the spa. At the same time, you don’t want too high a sanitizer level, or it can irritate your skin, lungs, and eyes. Always maintain the sanitizer level in your spa at the recommended level for each type of sanitizer.
  • Page 23 WATER QUALITY AND MAINTENANCE Reagent: A chemical material in liquid, powder, or tablet form for use in chemical testing. Sanitizer: Sanitizers are added and maintained at recommended residuals to protect bathers against pathogenic organisms which can cause disease and infection in spa water. Scale: Rough calcium-bearing deposits that can coat spa surfaces, heaters, plumbing lines and clog filters.

  • Page 24: Spa Care And Maintenance Record

    SPA CARE AND MAINTENANCE RECORD Notes:...

  • Page 25: Warranty

    (120), multiplied by months owned = replacement cost. Lifetime Manifold Plumbing Warranty Elite Spas warrants the plumbing manifolds, fittings, and parts to be free of defects in materials or workmanship for as long as the spa is owned by the original purchaser.
  • Page 26 1 - 8 0 0 - 7 4 9 - 8 0 0 3 www.EliteSpas.com 13055 49th St. N. Clearwater, Florida 33762...
