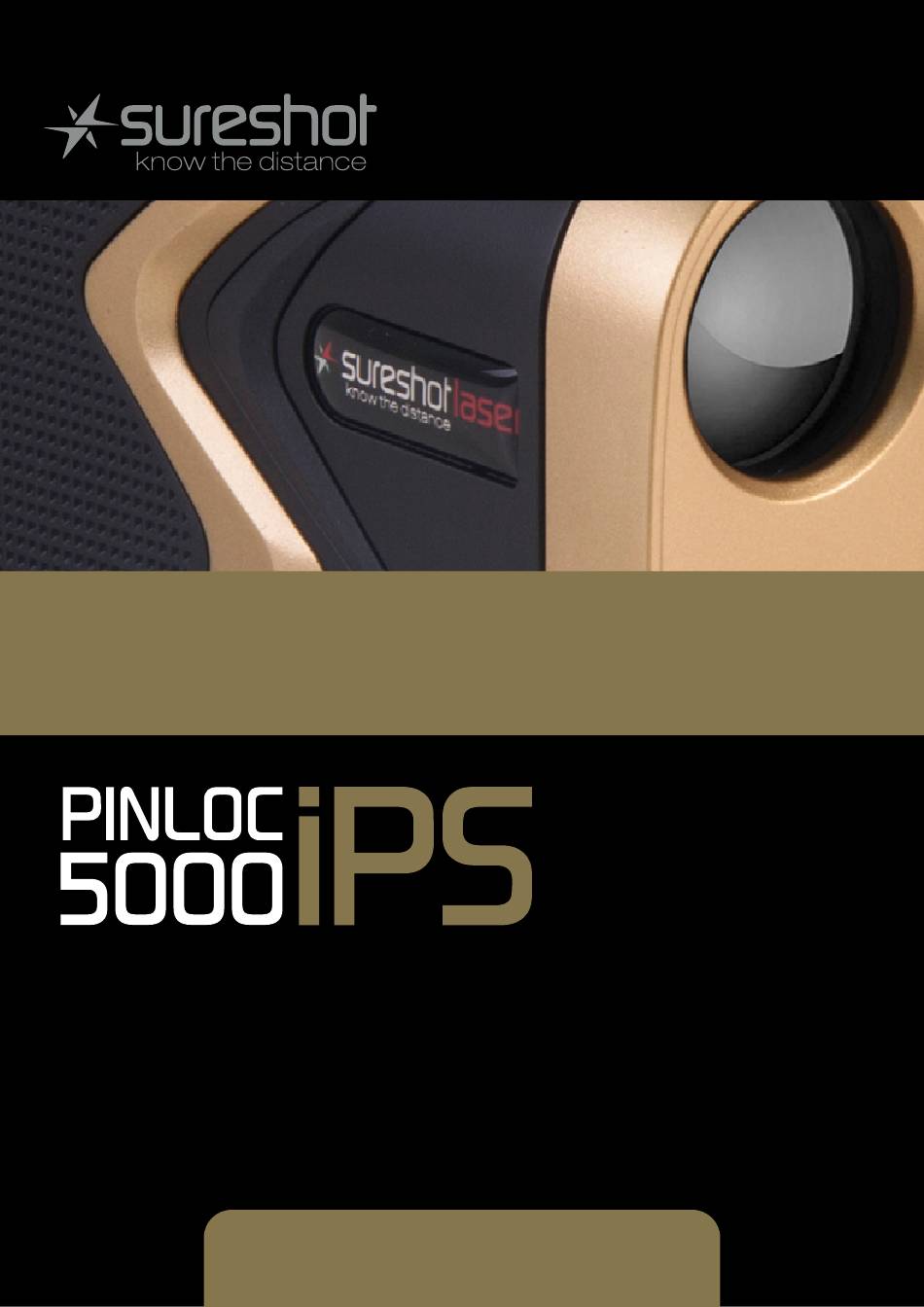

- Page 1 USER MANUAL VE RS I O N 6. 0 sureshotlaser.com...
-
Page 2: Getting Started

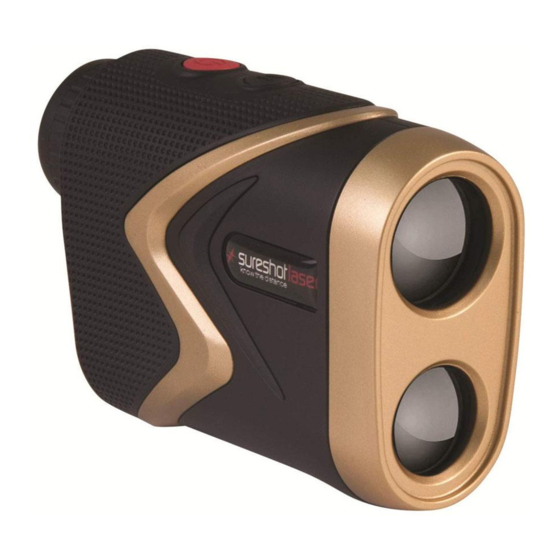

GETTING STARTED Congratulations on your purchase of the Sureshot PINLOC 5000iPS featuring Slope technology. The PINLOC 5000iPS is packed with features such as: i – Intelligent Pin seeking technology. This advanced mode uses uniquely developed software that ensures the closest object is chosen eliminating objects beyond the flag. -
Page 3: Contents Of Box
STARTING YOUR PINLOC 5000iPS The PINLOC 5000iPS has two buttons: the Power button and the Mode button (refer to page 2). To turn on, press the Power button for one second, the PINLOC 5000iPS with Slope Technology Laser LCD screen will turn on. - Page 4 DISTANCE M/Y PULSE MODE PINLOC MODE TARGET MARK SCAN MODE SLOPE DISTANCES & DEGREES SLOPE ADJUSTED DISTANCES LOW BATTERY INDICATOR OPERATING INSTRUCTIONS Hold the PINLOC 5000iP to your eye and depress the Power button once to turn on. The LCD display will now show three lines and a small rectangular box. Line the target up so it appears inside the rectangular box, then depress the Power button once.
- Page 5 PRIORITY LOC The PINLOC 5000iPS instinctively locks onto the nearest target, which may be the smallest among multiple objects in the background giving you confidence you have the correct distance every time.
- Page 6 Each time the Power button is pressed, the distance is displayed on screen for 15 seconds, after which the screen automatically switches off. UNIT MEASUREMENT CHANGE The PINLOC 5000iPS can be used to measure distances in metres or yards. Press the Mode button for 5 seconds to change the unit of measurement display. AUTOMATIC POWER-SAVE The PINLOC 5000iPS will automatically switch off after 15 seconds of inactivity.
- Page 7 • Users need to change the battery when the battery icon displays empty. A low battery can affect accuracy. If you do not use the PINLOC 5000iPS for a long period of time, please take the battery out to minimize drainage.
-
Page 8: Need Help
NEED HELP? Our friendly team is available via our website, telephone or email. It is recommended that you contact us first rather than returning to the place of purchase for the fastest response to your query. www.mgigolf.com MGI AUSTRALIA Service Email: customerservice@mgigolf.com Live Chat: visit www.mgigolf.com Toll Free within Australia: 1300 644 523 (excludes mobiles) Western Australia/ Internal phone +61 3 8872 6700... -
Page 9: Specifications
SPECIFICATIONS Product Imperial Metric Low level battery indicator PINLOC Weight 6.5oz 173g Range to Flag 330yd 300m Measure Range 5yd - 1000yd 4.5m - 915m Objective Lens 0.9” 24mm Magnification Field of View 7˚ 7˚ Exit Pupil Diameter 0.15” 4.0mm Working Temperature -15˚F –... -
Page 10: Warranty
SS or its authorized repairer more than one year from said date of purchase. This Limited Warranty does not apply to the battery, normal wear and tear or if any component of the sureshot hardware is opened or repaired by an unauthorized person or company, and does not cover repair or replacement of any sureshot hardware damaged by: MISUSE, MOISTURE OR LIQUIDS, EXPOSURE TO HEAT, ACCIDENT, ABUSE OR NEGLECT. - Page 11 www.mgigolf.com GLOBAL CUSTOMER SUPPORT E support@sureshotgps.com MGI GOLF AUSTRALIA MGI HEAD OFFICE 11 Maurice Court Nunawading 3131 Victoria Australia T +61 3 8872 6700 E sales@mgigolf.com SERVICE customerservice@mgigolf.com MGI GOLF USA T 1800 617 2990 E salesusa@mgigolf.com SERVICE serviceusa@mgigolf.com MGI GLOBAL E globalsales@mgigolf.com Follow us on Absolute attention has been taken to ensure this User Manual is correct at time...
