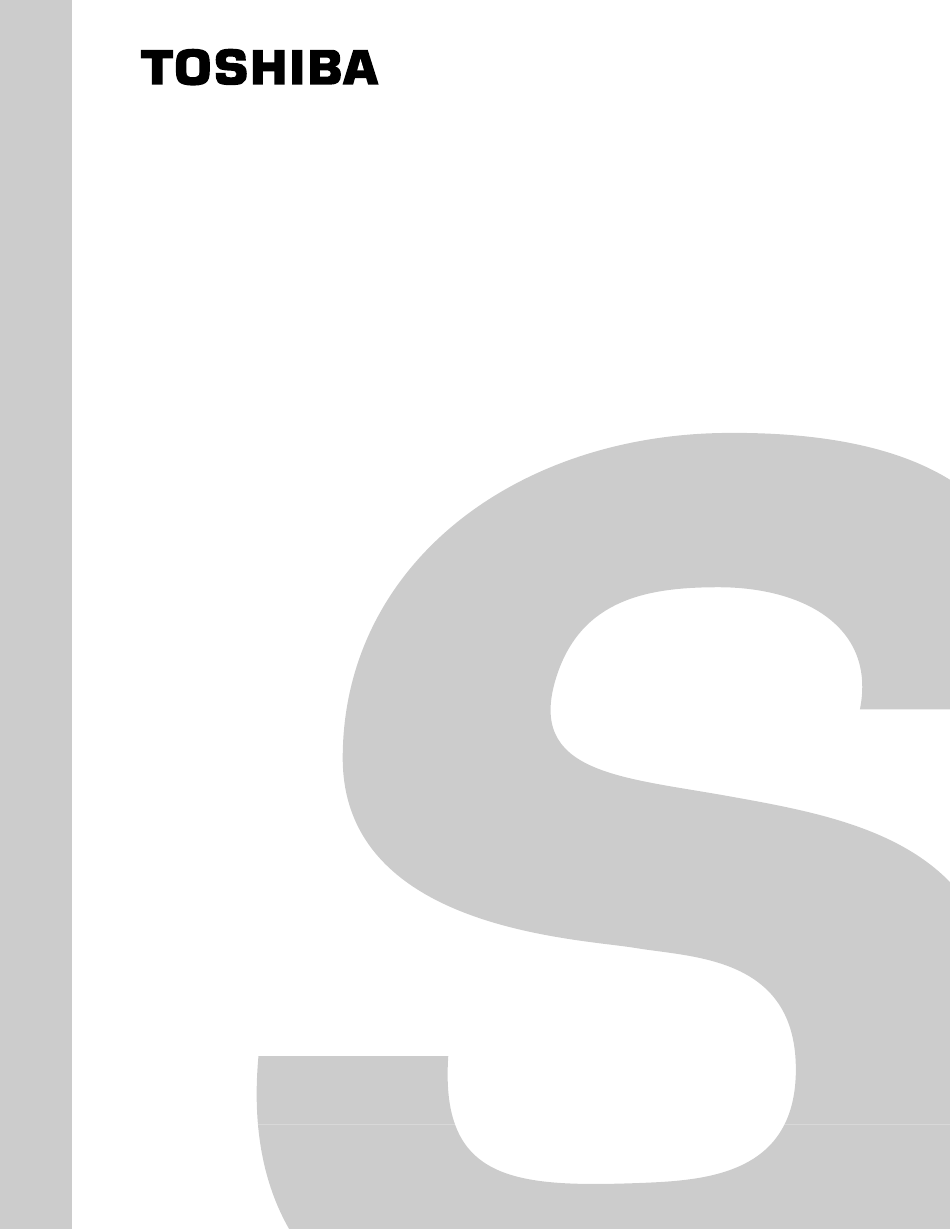

FILE NO. 040-200104
SERVICE MANUAL
COLOUR TELEVISION
A9PJ Chassis
43A9UE , 43A9UA
Aug., 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43A9UE and is the answer not in the manual?

Questions and answers

Related Manuals for Toshiba 43A9UE

Summary of Contents for Toshiba 43A9UE

  • Page 1 FILE NO. 040-200104 SERVICE MANUAL COLOUR TELEVISION A9PJ Chassis 43A9UE , 43A9UA Aug., 2001...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 GENERAL ADJUSTMENTS SAFETY INSTRUCTIONS ............................... 3 CRT ASSEMBLY REPLACEMENT AND MOUNTING ....................4 PICTURE TUBE COMPONENTS ADJUSTMENT ......................6 SERVICE POSITION ............................... 9 SERVICE MODE ................................10 DESIGN MODE ................................13 ELECTRICAL ADJUSTMENT ............................14 CONVERGENCE ADJUSTMENT ..........................

  • Page 3: Chapter 1 General Adjustments

    CHAPTER 1 GENERAL ADJUSTMENTS SAFETY INSTRUCTIONS WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU- TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW. X-RAY RADIATION PRECAUTION 1. Excessive high voltage can produce potentially hazard- 2. The only source of X-RAY RADIATION in this TV receiver ous X-RAY RADIATION.

  • Page 4: Crt Assembly Replacement And Mounting

    CRT ASSEMBLY REPLACEMENT AND MOUNTING CAUTION : DO NOT LOOSEN THE HEX HEAD BOLTS WITH SPRINGS (12 PCS), BECAUSE THOSE ARE FOR SEALING OF CRT COOLANT. Attention Serviceman The Hex Head Bolts with Springs. (see sketch) used on CRT assembly, 8 o’clock are “NOT”...
  • Page 5 TO REMOVE CRT (Same procedure for R, G, B) 1. Remove CRT DRIVE Board, S. V. M. COIL and DEF. YOKE from CRT. 2. Remove Lens Assembly. 3. Detach CRT Anode Cap from CRT. 4. Remove CRT Assembly from CRT Mounting. Anode Cap CRT REPLACEMENT (Same procedure for R, G, B) Reverse the removal procedures except the followings.

  • Page 6: Picture Tube Components Adjustment

    WARNING : BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRE- CAUTION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL. PICTURE TUBE COMPONENTS ADJUSTMENT ADJUSTING PROCEDURE IN REPLACING CRT RGB FOCUS ADJUSTMENT 1. Call-up the adjustment mode (see page 10) User convergence center check Cutoff 2.
  • Page 7 Note: The aim of the above-described adjustment procedure Note: Keep in mind that only the BLUE electric focus is ad- for the Green lens focus is to obtain the best lens focus justed with the black cross-hatch. after 2 - 3 hours of warming up taking into account the focus drift;...
  • Page 8 LOCATION OF SCREEN AND FOCUS VR'S To remove the Speaker grille and Front panel. FOCUS VR's SCREEN VR's Front grille REPLACEMENT OF HIGH VOLTAGE CABLE 1. When replacing Anode Lead or Anode Cap with new one, remove Lead Holder from old lead as shown in ANODE LEAD figure below, and put it on new lead.

  • Page 9: Service Position

    WARNING : BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAU- TION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL. SERVICE POSITION In order to assure the performance, processed wires shall be replaced after the repair work. Work procedures are as follows: 1.

  • Page 10: Service Mode

    SERVICE MODE 1. ENTERING TO SERVICE MODE 1) Press o button once on 2) Press o button again to 3) While pressing the o button, Remote Control. keep pressing. press MENU button on TV set. Item Data or Sound Mute (Service mode display) 2.
  • Page 11 4. SELECTING THE ADJUSTING ITEMS 1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2. (t button for reverse order) Refer to table-2 for preset data of adjustment mode. (See SETTING & ADJUSTING DATA on page 24) 5.
  • Page 12 8. SELF DIAGNOSTIC FUNCTION 1) Press “9” button on Remote Control during display of adjustment menu in the service mode. The diagnosis will begin to check if interface among IC’s are executed properly. 2) During diagnosis, the following displays are shown. Indicated color of mode now selected : Green and Red Indicated color of other modes : White...

  • Page 13: Design Mode

    DESIGN MODE 1. ENTERING TO DESIGN MODE 1) Select the Service mode. 2) While pressing CALL button on Remote 3) Press MENU button on TV. and press MENU button on TV. ITEM Press DATA Press (Design mode) (Adjustment mode) When QA02 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this chassis family.

  • Page 14: Electrical Adjustment

    ELECTRICAL ADJUSTMENT ITEM ADJUSTMENT PROCEDURE WIDTH 1. Call up the adjustment mode display, then select the item WID. (WID) 2. Press the VOLUME t button to get the picture so the left or right edges of raster begins to lack. 3.
  • Page 15 A9PJ: Series (Reference factory adjustment) – 15 –...
  • Page 16 – 16 –...

  • Page 17: Convergence Adjustment

    CONVERGENCE ADJUSTMENT 1. PICTURE ADJUSTMENT The adjustment are done on two screens; 50 Hz mode (PAL) 1-2. Service Mode and 60 Hz mode (NTSC). To synchronize correction wave to 1-2-1. Outline each frequency, receive the suitable signal. Service mode is controlled by software of micro-processor Note: The convergence circuit is a circuit to eliminate screen QA01, and is one of function of set.
  • Page 18 2. KEY FUNCTION OF REMOTE CONTROL UNIT h key ....Red test pattern ON/OFF ? key ....Green test pattern ON/OFF key ....Blue test pattern ON/OFF b key .... Mode picture change over 6 key ....Cursor shift / data change mode change over 0 key ....
  • Page 19 3. Picture a) 50 Hz mode (PAL) ..Correcting point: Horizontal 8 x Vertical 8 (Arrow marks denote correcting point) The first picture The second picture Data display Cursor (red) Screen center (Blinking) The first picture The second picture is indicated with data on top left of the first picture, therefore, convergence cannot be adjusted by this pic- Crosshatch pattern.
  • Page 20 b) 60 Hz mode (NTSC) ..Correcting point: Horizontal 8 x Vertical 7 (Arrow marks denote correcting point) The first picture The second picture Data display Cursor (red) Screen center (Blinking) The first picture During this period, the changed data is transferred from RAM Q701 to E PROM Q711, and saved.
  • Page 21 4. ADJUSTING PICTURE DIMENSION (GREEN PICTURE) 1.50 Hz mode (PAL) Screen center 310.5 164.5 Screen center 164.5 310.5 8.5mm 8.5mm 372.5 223.5 74.5 74.5 223.5 372.5 428.5 428.5 \ mark: center 43 inches 4:3 Screen size: Horizontal 874mm, Vertical 655mm Dimension A: 74.5mm (H span), Dimension B: 36.5mm (V span) 2.

  • Page 22: Screen And Mirror Alignments

    SCREEN AND MIRROR ALIGNMENTS ASSEMBLING AND MOUNTING OF FRONT SCREEN * Please refer to MECHANICAL DISASSEMBLY page 30. CLEANING OF LENS AND MIRROR CAUTION : Do not hold the optical system parts (lens and mirror) with bare hand to avoid finger-prints on the surface of those parts.

  • Page 23: Circuit Checks

    CIRCUIT CHECKS HIGH VOLTAGE CHECK CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below. 1. Connect an accurate high voltage meter to the anode of the picture tube. 2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST to minimum (zero beam current). 3.

  • Page 24: Chapter 2 Specific Informations

    CHAPTER 2 SPECIFIC INFORMATIONS SETTING & ADJUSTING DATA SAFETY INSTRUCTIONS 43" HIGH VOLTAGE AT ZERO BEAM: 31.9 kV MAX HIGH VOLTAGE: 32.5 kV AC VOLTAGE 110~240 V Table-1 SERVICE MODE ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE: Item Adjustment Reference data Item Adjustment...

  • Page 25: Location Of Controls

    LOCATION OF CONTROLS (Representative: 43A9UE) Front * Volume + - POWER switch Menu item adjust Y ON-timer indicator (green) Power indicator (red) * Channel position st Menu item select MENU MENU MENU Input source selection Remote sensor Back WOOFER output terminal and EXT./INT.
  • Page 26 Remote Controller CALL F (quick operation) (Power on/standby) CALL index, initial Number buttons (0—9) 1 or 2 digit selection Input source selection Picture menu Sound menu Selectable picture Selectable sound Teletext Channel position st Menu st Sound mute Menu MENU Volume –...

  • Page 27: Programming Channel Memory

    PROGRAMMING CHANNEL MEMORY • First, use the ASM (Automatic Search Memory) function to preset all the active channels in your area automatically. Then, arrange the preset channels with the MANUAL SEARCH (SEARCH or >>>), MFT (Manual Fine Tuning) and SKIP functions so that you can tune into only desired channels. •...
  • Page 28 • Use the MANUAL SEARCH (SEARCH or >>>) function if desired channels cannot be preset with the ASM or if you would like to preset channels to specific position numbers one by one. • It is convenient to set the channel numbers to the same position numbers using MANUAL SEARCH (SEARCH or >>>) and SKIP functions.

  • Page 29: Circuit Block Diagram

    – 29 –...

  • Page 30: Mechanical Disassembly

    MECHANICAL DISASSEMBLY K502 K601 16 SCREWS K501 SCREWS A401 A402 Labels SCREWS A201 SCREWS A172 A241 A203 A171 (A242) (CASTER) A101 A202 6 SCREWS A204 (K103) – 30 –...

  • Page 31: Chassis And Cabinet Replacement Parts List

    CC : Carbon Composition : Metal Film OMF : Oxide Metal Film : Variable Resistor : Fusible Resistor (All CD and PF capacitors are ±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.) Models :43A9UE, 43A9UA Location Location Location Location Location Location...
  • Page 32 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description C464 24095900 PLASTIC FILM, 100V 3.3UF K...
  • Page 33 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description C765 24214472 CERAMIC DISK CK45 B 500V 4700PF K...
  • Page 34 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description C7755 24667101 ELECTROLYTIC, 25V 100UF M 3A...
  • Page 35 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description CS08 24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A...
  • Page 36 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description R414 24019259 FUSIBLE, 1/4W 27 OHM G...
  • Page 37 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description R693 24011102 CHIP, METAL FILM, 1/20W 1K OHM J...
  • Page 38 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description R913 24942102 CARBON COMPOSITION, 1/2W 1K OHM J...
  • Page 39 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description R7202 24011223 CHIP, METAL FILM, 1/20W 22K OHM J...
  • Page 40 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description R7854 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J...
  • Page 41 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description RB09 24366470 CARBON FILM, 1/6W 47 OHM J...
  • Page 42 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description RS32 24011104 CHIP, METAL FILM, 1/20W 100K OHM J...
  • Page 43 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description L4401 23289470 COIL, PEAKING, TRF4470AF...
  • Page 44 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Q723 23114817 TRANSISTOR, VCEO=-80V TO92...
  • Page 45 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Q3103 23205112 TRANSISTOR, 2SA1980UF-Y( D210...
  • Page 46 Location Location Location Location Location Location Location Location Location Location Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description Parts No. Parts No. Parts No. Parts No. Parts No. Description Description Description Description Description D760 23118041 DIODE, MA111...
  • Page 47 CONNECTOR, PLUG, 2P 11.88MM W BB20B 23903022 CONNECTOR, BASE B-B 8P 2.5 JST VT-JST BB20C 23368627 CONNECTOR, BRIDGE B-B 8P 2.5JST * P801 23372023 POWER CORD, UK (43A9UE) 08TM-2.5FJ-E * P801 23372026 POWER CORD (43A9UA) BB21A 23713013 BASE SOCKET 16P 1.5 PF01...
  • Page 48 PROTECTOR, PROTECTOR 125V 4.0A PRF A401 23540755 COVER, MIRROR COVER 43A7DE;A01508 Z861 23144605 PROTECTOR, PRT SERIES, DC60V/AC90V * A402 23540847 COVER, BACK BOARD 43A9UE 2000MA A431 23845800 WIRE HOLDER, NYLON66 D6.8 Z862 23144604 PROTECTOR, PRT SERIES DC60V/AC90V 1 A432 23035412...

  • Page 49: Pc Boards Bottom View

    SIGNAL BOARD PD0182 BOTTOM (FOIL) SIDE – 49 – – 50 –...
  • Page 50 DEF/CONV BOARD PD0181 BOTTOM (FOIL) SIDE – 51 – – 52 –...
  • Page 51 POWER BOARD PD0184 BOTTOM (FOIL) SIDE – 53 – – 54 –...
  • Page 52 R-DRIVE BOARD PD0202-1 SVM-R BOARD PD0202-5 BOTTOM (FOIL) SIDE BOTTOM (FOIL) SIDE SVM-B BOARD PD0202-6 BOTTOM (FOIL) SIDE G-DRIVE BOARD PD0202-2 BOTTOM (FOIL) SIDE B-DRIVE BOARD PD0202-3 BOTTOM (FOIL) SIDE SVM-G BOARD PD0202-4 BOTTOM (FOIL) SIDE – 55 – – 56 –...
  • Page 53 WOW BOARD PD0453 BOTTOM (FOIL) SIDE FRONT BOARD PD0147 BOTTOM (FOIL) SIDE – 57 –...
  • Page 54 TERMINAL VIEW OF TRANSISTORS 2SD2253 2SC3852 2SC752GTM 2SC752 2SA1788 2SD1763A (old) 2SC2482 2SA562TM 2SC5243 2SC1569 2SA1015 2SC2655 2SC4544 2SC1815 2SC4721P 2SA1788 2SC2878 2SA1306 2SC1740S 2SA1186A 2SC2120 2SA9335 RN2203 2SD1554 ON4409 2SD2253 RN2201 RN2004 2SD1556 RN1203 2SC5143 RN1204 2SD2553 2SC5144 RN2204 RN1205 RN1202 RN1201...
  • Page 55 MEMO ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................– 59 –...
  • Page 56 SCHEMATIC DIAGRAM MODEL : 43A9UE / 43A9UA WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL. CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list.
  • Page 57 MEMO ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................– 59 –...

  • Page 58: Terminal View Of Transistors

    MEMO ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................– 60 –...

  • Page 59: Specifications

    SPECIFICATION Representative: 43A9UE Rated voltage g 110 V – 240 V, 50/60 Hz Power consumption Approx. 160 W (at g 220 V, 50 Hz) Dimensions 943.5 mm × 510 mm × 1287 mm (Width × Depth × Height) Mass 59.5 kg...
  • Page 60 TOSHIBA CORPORATION 1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
  • Page 61 SCHEMATIC DIAGRAM MODEL : 43A9UE / 43A9UA WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL. CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list.
  • Page 92 COLOUR TELEVISION A9PJ Chassis 43A9UE , 43A9UA – SUMMARY – This supplement is covers the added circuit of schematic diagram for above models. Use this service manual together with the original service manual 43A9UE, 43A9UA (File No. 040- 200104). Nov., 2001...
  • Page 93 SCHEMATIC DIAGRAM MODEL : 43A9UE / 43A9UA WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL. CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list.
  • Page 95 TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
  • Page 96 A9PJ Chassis 61A9UM , 61A9UR – SUMMARY – 61A9UM, 61A9UR are the same as 43A9UE except for the parts tabled on back of this sheet. Use this service manual together with the original service manual of 43A9UE, 43A9UA (File No. 040-200104).
  • Page 97 DB01 23358541 Diode (LED), 4343VRT English/Russian, 61A9UR DB02 23358503 Diode (LED), SCL003MC3FX Y108 23122780 AC Adaptor, 2P (61A9UM) H001 23321415 Tuner, TEDE9-710A ZC01 23148793 Module, MDCC13, D-CONVER H002 23148768 Module, MVCM34 TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
  • Page 98 A9PJ Chassis 43A9UM , 43A9UR – SUMMARY – 43A9UM, 43A9UR are the same as 43A9UE except for the parts tabled on back of this sheet. Use this service manual together with the original service manual of 43A9UE, 43A9UA (File No. 040-200104).
  • Page 99 IC, 750010-174S R1064 24000445 Chip Jumper, 1680 Type U901 23786416 Signal Board, PD0190 Y101 23565511 Owner’s Manual, English, 43A9UM Y101R 23565368 Owner’s Manual, English/Russian, 43A9UR Y108 23122780 AC Adaptor, 2P (43A9UM) TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
  • Page 100 61A9UE , 61A9UA – SUMMARY – 61A9UE, 61A9UA are the same as 43A9UE except for the parts and Convergence adustment and Mechanical disassembly tabled on back of this sheet. Use this service manual together with the service manual of 43A9UE,43A9UA (File No. 040- 200104).
  • Page 101 CONVERGENCE ADJUSTMENT 4. ADJUSTING PICTURE DIMENSION (GREEN PICTURE) (61") 1. 50 Hz mode (PAL) Screen Center Adjusting 310.5 Position 164.5 Screen Center 164.5 310.5 12×A 216.5 72.2 72.2 216.5 61 Inches 4:3 Screen size : Horizontal 1240 mm, Vertical 930 mm A: 103 mm, B: 50.7 mm mark : Center 2.
  • Page 102 MECHANICAL DISASSEMBLY 61" 1 Speaker Grille Removal 2 Control Panel Removal 3 Front Mask Removal 4 Mask Removal A101 (To fix 5 screws) A205 A201 A252 A254 (K501) K502 A202 (K502) K501 A171 4 screws (To fix 8 screws) A203 A204 5 Shield Plate, Lens Removal 6 Mirror Removal...
  • Page 103 REPLACEMENT PARTS LIST DIFFERENCES Location Location Part No. Description Part No. Description Q760 23205123 Transistor, 2SA933ASQ A101 23411644 Cabinet, Wood Cabinet Q782 23205123 Transistor, 2SA933ASQ A107 23549746 Rear Board Cover Q913 23205123 Transistor, 2SA933ASQ A113 23845554 Wire Clip Q916 23205123 Transistor, 2SA933ASQ A151 23064345...
  • Page 104 TOSHIBA CORPORATION 1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
  • Page 105 A9PJ Chassis 50A9UM , 50A9UR – SUMMARY – 50A9UM, 50A9UR are the same as 43A9UE except for the parts tabled on back of this sheet. Use this service manual together with the original service manual of 43A9UE, 43A9UA (File No. 040-200104).
  • Page 106 English/Russian, 50A9UR CD, 1000pF, ±5%, 50V CC107 24109102 Y108 23122780 AC Adaptor, 2P (50A9UM) CD, 1000pF, ±5%, 50V CC108 24109102 ZC01 23148792 Module, MDCC12, D-CONVER CD, 1000pF, ±5%, 50V CC109 24109102 TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
