Summary of Contents for Logik L2GBMP410

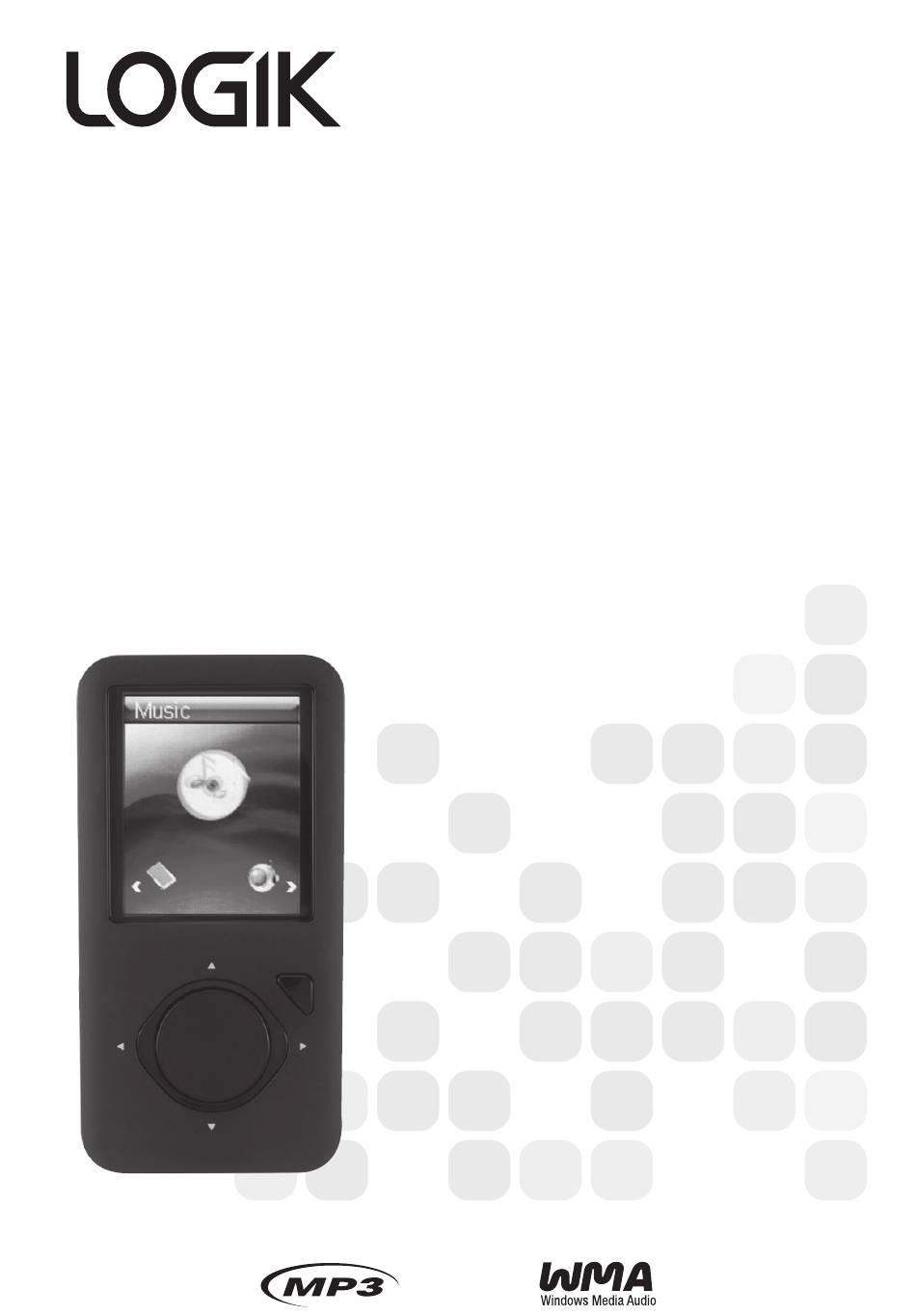

- Page 1 2GB/4GB/8GB Music and Video Multimedia Player Instruction Manual L2GBMP410 L4GBMP410 L8GBMP410...
- Page 2 Congratulations on the purchase of your new Logik Multimedia Player. It has many exciting features to make your listening to music experience more enjoyable. We recommend that you spend some time reading this instruction manual in order to fully understand these features.
-
Page 3: Table Of Contents
Contents Product Overview ....................5 Unpacking the Multimedia Player ..................5 Features ............................5 Identification of Parts and Controls ..................6 Connecting to a Computer ..................7 System Requirements ......................... 7 Installing the Driver for Windows 98 SE ................7 Loading Files from a Computer to the Multimedia Player ..........7 Disconnecting the USB Cable .................... - Page 4 Voice Recording and Playback ................15 Entering the Voice Setup Menu.....................17 – To Set Repeat ........................17 – To Set Equalizer ........................18 – To Set 3D Sound Effect ....................19 – To Set Play Rate ........................19 – To Navigate Recorded Files ..................20 – To Record Voce .........................20 Photo Playback .....................21 Entering the Photo Setup Menu ...................21 Movie Playback .....................22...
-
Page 5: Product Overview
Product Overview Unpacking the Multimedia Player Remove all packaging from the unit. Retain the packaging. If you dispose it please do so according to local regulations. The following items are included: Multimedia Earphones USB Cable Installation CD with Player part number: part number: Instruction Manual 50-110-26900119... -
Page 6: Identification Of Parts And Controls
Identification of Parts and Controls MENU Power on/off; Open or exit sub-menu; Stop recording Microphone for voice recording Screen Screen display area Increase volume; Navigate upwards; Previous picture/line Previous track/page/screen; Fast backward; Navigate leftwards; Return to previous screen Start /Pause playback; Enter main menu; Confirm selection in the main menu Next track;... -
Page 7: Connecting To A Computer
Connecting to a Computer System Requirements Your computer system must meet the following requirements: • Pentium 200MHz or above • Microsoft Windows 98SE / 2000 / ME / XP / Vista® • 120MB of available hard disk space • USB port supported • CD-ROM drive Installing the Driver for Windows 98 SE If your computer is running Windows ME / 2000 / XP / Vista®, no driver is required. -
Page 8: Disconnecting The Usb Cable
Disconnecting the USB Cable After completing the file transfer, disconnect the USB cable in the following way: 1. Double click the green arrow “Safely Remove Hardware” in the taskbar on the bottom right of the window. 2. Select “USB Mass Storage Device” and click “Stop”. 3. -
Page 9: Basic Operation
Basic Operation Power On/Off the Multimedia Player Make sure the battery is sufficient and the earphones are connected. • Press and hold the MENU button to power on. • Press and hold the MENU button to power off. Resetting the Multimedia Player If the user interface is not responding, you will need to use a pointed object to insert into the RESET hole/button to re-initialise the system of your Multimedia player. -
Page 10: Music Playback
Music Playback Playing Music Make sure the battery power level is sufficient and the earphones are connected correctly. 1. Press and hold the button to enter the main menu. buttons to select Music. Press the 2. Press the button to display the following screen. 1. -
Page 11: Displaying Lyrics
• Searching: Press and hold the buttons to fast rewind / fast forward within a track. • Adjusting the Volume: Press the buttons to increase / decrease the volume. • Exit: Press and hold the button to return to the main menu. Displaying Lyrics This Multimedia player supports lyrics display while playing music. -
Page 12: To Set Equalizer
2. Press the button to enter the Repeat Mode Menu. Press Music buttons to select the desired mode as below and Repeat Mode then press the button to confirm and exit. No Repeat • No Repeat Repeat One Play all the saved music files in order once. Repeat All • Repeat One Random All... -
Page 13: To Set 3D Sound Effect
To customise EQ, select Custom EQ, and press the button. The Custom EQ value bars appear on the screen. 1. Press the buttons to navigate between the value bars. 2. When navigating to a value bar, press the button to select it. -
Page 14: To Navigate Music Files
2. Press the button to enter the Play Rate Menu. Press the Music buttons to select a play rate from 1.00X, 1.14X, 1.33X, Play Rate 0.67X and 0.80X. Press the button to confirm and exit. 1.00X 1.14X 1.33X 0.67X 0.80X To Navigate Music Files 1. -
Page 15: Voice Recording And Playback
Voice Recording and Playback You can make voice recordings using the integrated microphone. 1. Press and hold the button to enter the main menu. buttons to select Voice. Press the button and then the MENU button. Press the 2. Press the Voice buttons to select Record. - Page 16 4. During recording, you can: • Pausing/Resume Recording: Press the button to pause recording. Press the button again to resume recording. • Stop Recording: Press the MENU button to save the recordings. The Multimedia player will go to the Voice playback interface automatically. 1.
-
Page 17: Entering The Voice Setup Menu
Entering the Voice Setup Menu 1. While playing the recording, press the MENU button to enter the Voice Setup Menu. 2. Press the buttons and then the button to access the following: Repeat Mode, Equalizer, 3D, Play Rate, File, Record. 3. -
Page 18: To Set Equalizer
To Set Equalizer The equalizer setting enables you to select an equalizer from the six preset equalizer settings to suit the type of audio output or customise your personal equalizer effect. 1. Press the MENU button while listening to a track. The Voice Voice Setup Menu appears on the screen. -
Page 19: To Set 3D Sound Effect
To Set 3D Sound Effect 1. Press the MENU button while listening to a track. The Voice Voice Setup Menu appears on the screen. Press the Repeat Mode buttons to select 3D. Equalizer Play Rate File Record 2. Press the button to enter the 3D Menu. -
Page 20: To Navigate Recorded Files
To Navigate Recorded Files 1. Press the MENU button while listening to a track. The Voice Voice Setup Menu appears on the screen. Press the Repeat Mode buttons to select File. Equalizer Play Rate File Record 2. Press the button. The recorded file list appears on the Voice screen. -
Page 21: Photo Playback
Photo Playback This Multimedia player supports the playback of pictures in JPEG and BMP format. 1. Press and hold the button to enter the main menu. buttons to select Photo. Press the 2. Press the button. The picture list appears on the screen. Photo PHOTO al.jpg... -
Page 22: Movie Playback
Movie Playback This Multimedia player supports the playback of converted videos in MTV format. 1. Press and hold the button to enter the main menu. buttons to select Movie. Press the 2. Press the button. The movie list appears on the screen. Movie pride.mtv 3. -
Page 23: Deleting Files And Folders
Deleting Files and Folders In the Delete mode, you can delete the files and folders stored on your Multimedia player without a computer. 1. Press and hold the button to enter the main menu. buttons to select Delete. Press the 2. -
Page 24: E-Book Viewing
E-Book Viewing This Multimedia player only supports the playback of files in TXT format. Other formats must be saved as TXT formats before transfering to the Multimedia player. 1. Press and hold the button to enter the main menu. buttons to select E-Book. Press the 2. -
Page 25: Customising Settings
Customising Settings The Multimedia player settings can be customised by accessing the Settings Menu. The Settings Menu consists of several items where various functions can be selected concerning language, play mode, recording, contrast, time off, storage, reset, etc. 1. Press and hold the button to enter the main menu. -
Page 26: Power
Power Auto off Settings To set the auto off time. Power The available options include: 15, 30, 60, 90, 120 minutes and Auto off Disable. Always on Always on The Multimedia player will be always on while playing. However, it will turn off automatically in any other mode if no button is pressed for the set time. -
Page 27: Record
Record Before starting the recording, you can set the recording quality. Settings Record 1. Press the buttons to select a recording quality from Long Time, Normal Quality and High Quality. Quality 2. Press the button to confirm and return to the pervious screen. -
Page 28: Converting Video To Mtv Format
Converting Video to MTV Format This Multimedia player supports the playback of videos in MTV format. Other formats (AVI, WMV, MEPG1, Quick Time, MPEG2, RealMedia, MPEG4, 3GP) must be converted to MTV format. The “MTVVideo Converter” is supplied on the CD to enable you to convert the other formats to MTV format. -
Page 29: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Cannot power on • The battery may be exhausted. Recharge the battery. Files cannot be • Check if the driver is installed correctly in the computer. downloaded • Check the connection between the Multimedia player and the computer. -
Page 30: Specifications
Specifications Model L2GBMP410 / L4GBMP410 / L8GBMP410 Audio Format MP3 / WMA / WAV Photo Format JPEG / BMP Video Format MP3 bit Rate 8Kbps-320Kbps WMA bit rate 5Kbps-320Kbps S/N rate ≥85dB Distortion <0.2% Size 43 x 84 x 8.3 mm Weight <40g (without accessories) -
Page 31: Safety Warnings
Safety Warnings • Retain the manual. If you pass the unit onto a third party make sure to include this manual. Damage • Please inspect the unit for damage after unpacking. • Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off and consult your dealer. - Page 32 Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number USB Cable 38-012-10300019 Earphones 50-110-26900119 Installation CD with Instruction Manual 54-809-30000209 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
