DABS – DATA

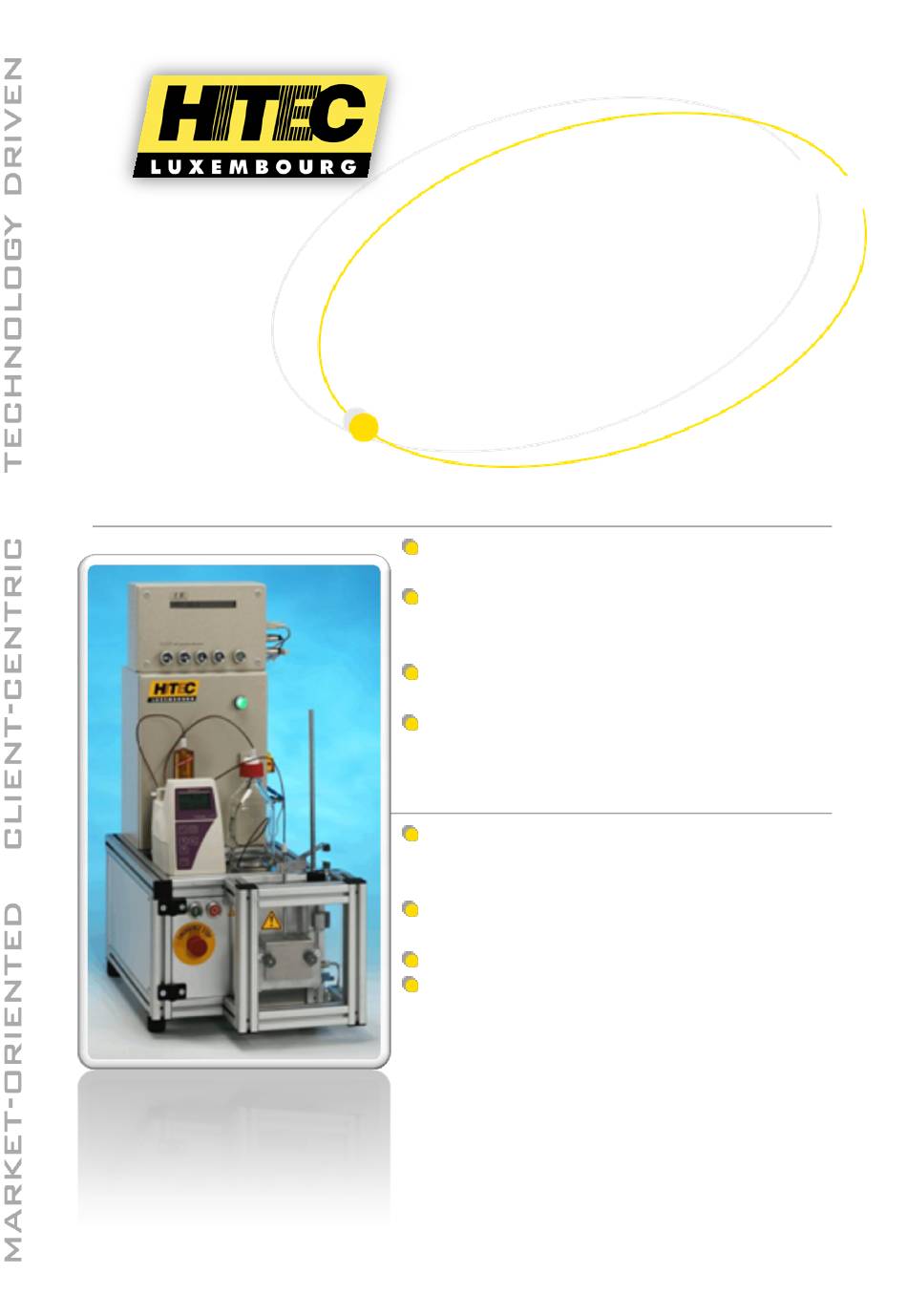

ABSORPTOMETER SYSTEM
Oil Absorption, OAN/COAN ASTM D2414 and D3493
Key Data
Connects to PC via serial port or via LAN with
optional ComServer
Terminal fully dust proof, resistant to DBP, can
be handled by operator wearing protective
gloves
Options: Mixing chamber cooling block, chamber
extension funnel for testing of fluffy material
Table model dimensions: 400 x 500 x 700 mm
(WxDxH) - Weight: 60 kg
Design Objectives
Fits standard mixing chambers - handy access to
chamber, safety cage opens fully for cleaning
and filling, no hindering safety switch brackets
Frequency inverter driven asynchronous motor
for variable speed and smooth start
Full burette control including variable debit speed
Integrated DADS Oil Absorption Data System
Due to continual product research and development,
the information contained herein is subject to change without notification.
