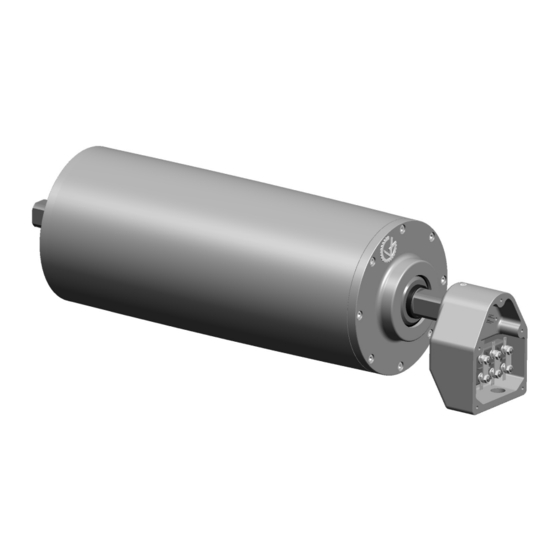

Summary of Contents for VDG TM100B25
- Page 1 Drum Motor Installation Manual...
-
Page 2: Table Of Contents
Table of Contents Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Electrical Connection . -
Page 3: Installation Instructions
. This will ensure that the gear reducer is properly lubricated . For special mounting arrangements, consult your Van der Graaf (VDG) representative . NOTE: The Drum Motor has been factory filled with the correct amount and type of oil, and does not require any additional oil. -
Page 4: Drum Motor With Sprockets (Stm) Assembly Procedure
Drum Motor with Sprockets (STM) Assembly Procedure 1 . Align pin slot in Sprocket (3) to the welded pins (2) on the shell (1) . 2 . Slide sprocket (3) over the Drum Motor shell (1) . 3 . Insert Set Screws (4) in their respective positions . Do not overtighten. 4 . -
Page 5: Connection Diagrams
Connection Diagrams SINGLE VOLTAGE - THREE PHASE 325 (12/2003) DUAL VOLTAGE - THREE PHASE (STAR/DELTA) 326 (12/2003) -
Page 6: Dual Voltage - Three Phase (240/480 Volts)
Connection Diagrams DUAL VOLTAGE - THREE PHASE (240/480 VOLTS) 327 (12/2003) SINGLE PHASE (110 VOLTS) 328 (12/2003) -
Page 7: Single Phase (220 Volts)
Connection Diagrams SINGLE PHASE (220 VOLTS) 329 (12/2003) THREE PHASE WITH BRAKE (RTM) 330 (04/2006) -
Page 8: Three Phase (240 Volts) With Brake (Rtm)
Connection Diagrams THREE PHASE (240 VOLTS) WITH BRAKE (RTM) VGC-11-240 INSTALLATION NOTES: Motor To reverse direction interchange BRAKE MODULE with Brake motor leads 2 & 3. 1 2 3 GND Brake THERM When wired with a soft starter or 4 5 6 variable frequency drive (VFD), —... -
Page 9: Connecting A Drum Motor Equipped With A
Connecting a Drum Motor Equipped with a Backstop (TB) Device 1. Look for the brass arrow on the end flange . It will indicate which direc- tion the drum motor will rotate . 2. Mark the three incoming power supply leads with numbers L1, L2, L3 . Ensure that the ground lead is properly connected to the ground . -
Page 10: Releasing & Engaging A Drum Motor Equipped With A
4. Once re-engaged, remove the socket and re-install the shaft cap . The motor will operate in only the direction indicated by the brass arrow mounted on the side of the unit . If you require assistance, contact VDG (Van der Graaf) Technical Support: 1 (866) 595-3292 or email: service@vandergraaf .com... -
Page 11: Oil Change Instructions
4 o’clock position as shown in the diagram . The minimum oil level should be up to the level of the oil plug . For exact oil quantities consult VDG (Van der Graaf) Technical Support* . Note: typical levels are higher but should not exceed the level where the oil plug is in the 3 o’clock position . - Page 12 Oil Types Oil Type Manufacturer Oil Type Petro Canada Enduratex EP 220 Gear Oil Castrol Molub-Alloy Gear Oil 90/220 or Alpha SP 220 Chevron Meropa XL 220 Mobil / Esso / Imperial Oil Spartan EP 220 Citgo EP Compound 220 Gulf EP Lubricant HD 220 Shell...
-
Page 13: Drum Motor Oil Content
Drum Motor Oil Content (in Litres) -
Page 15: Troubleshooting
3 . Check for excess belt tension and relieve . NOTE: If any of the above mentioned attempts to correct the problem have been performed and the problem persists, contact VDG (Van der Graaf): Technical Support: 1 (866) 595-3292 Email: service@vandergraaf.com... - Page 16 Notes...
- Page 17 Notes...
- Page 18 VDG (Van der Graaf) CANADA 2 Van der Graaf Court Brampton, Ontario L6T 5R6 Michigan 13771 Cavaliere Drive Shelby Township, MI 48315 Georgia 1420 Calvary Church Rd. Gainesville, GA 30507 Tel: 1-888-326-1476 Fax: 1-888-326-0089 Technical Support: 1-866-595-3292 service@vandergraaf.com e-mail: info@vandergraaf.com www.vandergraaf.com...
