Summary of Contents for SSANGYONG DGU-7T45-A161SA

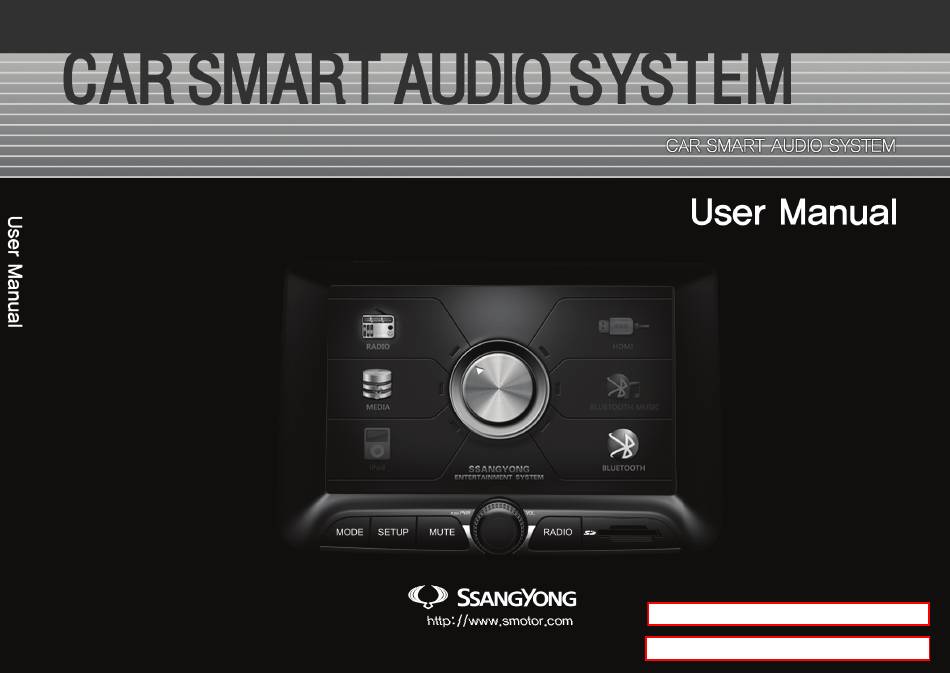

- Page 1 Model name: DGU-7T45-A161SA FCC ID: 2AE77DGU7T45A161SA...
- Page 2 Please read this manual carefully before operating your set and retain it for future reference. Designs and specifications are subject to change without prior notice. Please visit the Ssangyong Motor online Webpage for the detail information about the Smart Audio system. - Smart Audio manual download website address : http://www.smotor.com...
-
Page 3: Table Of Contents
Contents Precautions Smart Audio Manual · · · · · · · · ·· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Smart Audio Detailed Manual download URL : Key Product Features ·... - Page 4 Precautions For Safe Use Safety Cautions The product is designed for DC 14V negative-ground vehicle use only. Do not use a non-standard power supply. Caution! - To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
-
Page 5: Key Product Features
Key Product Features Key Product Features This device is a Smart Audio system that supports Radio (FM, AM, RDS), USB Music, HDMI, iPOD. The 7-inch WIDE VGA LCD provides high quality resolution while the powerful and rich sound system adds to driving enjoyment. In addition, the rear view cam- era increases safety when reversing by providing a wide field of vision of the rear side. -
Page 6: Location Of Controls(Front View)
Location of controls Front View Button Description POWER/VOL 1. Used the turn the power ON/OFF or control the volume. 2. Press and hold (over 1.5 seconds) to turn the power OFF. 3. Press shortly to turn the AV ON/OFF. 4. Turn left/right to control volume. MODE 1. - Page 7 Location of controls Rear View Smart Audio 42P CONNECTOR Smart Audio PIN NO. SPEC PIN NO. SPEC NC(CAN_H) NC(UCOM_TX) NC(MULTI-BOX PWR) ST_REMO B/V_GND NC(SPDIF_DP) B/V_POWER NC(SPDIF_DM) 1) Radio Antenna Jack ALT_IN NC(AUX_CVBS_IN) To plug the radio antenna cable ILL+ NC(AUX_R_IN) REVERSE NC(AUX_REF) 2) USB Port...
-
Page 8: Steering Wheel Controller
Steering Wheel Controller Steering Wheel Controller Button Description During a call, press the button shortly to mute call volume In listening mode, mutes broadcast volume - Press the button to select the desired function mode. ( RADIO → USB → BT Audio → HDMI → iPOD ) - Press and hold the button to select radio frequency bands. - Page 9 Basic Operation Starting the System MODE Set the ignition key to ON or The Ssangyong Motors logo is Press the MODE button to con- Once booting is complete, User agreement screen is displayed, and ACC. displayed and the system will vert to MODE selection screen.
-
Page 10: System Settings
SYSTEM SETTINGS Smart Audio Settings Menu Sound Settings Display Settings Press and hold (over 1.5 sec- In Settings screen, select the Used to set sound fader/bal- Used to set screen brightness, onds) the SETUP button on the desired mode. ance, EQ and other sound size and other display settings. -
Page 11: Selecting Mode
Selecting MODE MAIN MODE RADIO MODE Smart Audio MEDIA MODE Press the MODE button on the In Mode screen, select the You can enjoy RADIO and RDS You can enjoy preferred MEDIA, front panel. desired mode. information. such as USB MUSIC. Bluetooth MODE Bluetooth Music MODE Mobile phones can be con-... - Page 12 Selecting MODE HDMI MODE IPOD MODE Devices can be connected via iPOD/iPhones can be connected HDMI to watch Phone Screen. via USB to listen to music. MHL/HDMI Gender & iPod/iPhone Cable Cable Connection Connection USB Cable Caution Caution - When connecting MHL/HDMI, - When connecting USB Cable, use only authentic connection use only authentic connection...
-
Page 13: Starting Rear Detection Camera Mode
Starting Rear Detection Camera Mode This device is connected to a rear detection camera to acquire rear field of vision for safe reversing. When placing the car in reverse, the rear detection camera will begin operating regardless of the current mode and display the rear view on the monitor. -
Page 14: Product Specifications
Product Specifications Name Car TFT LCD Display Smart Audio UNIT 1 slot, SD-HC DC 13.5V Power Supply Storage 1 port , USB2.0 HOST Device DC 9V ~ DC 16V Operating Power FAT 32 Format Current Con- sumption Supported Files MP3, WMA, OGG, AC3, APE, FLAC Sleep Current 3mA(Head Unit Only) Audio... - Page 15 Notice FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection subject to the following two conditions: (1) This device may not cause harmful interference, and (2) against harmful interference in a residential installation.
