Summary of Contents for DTM Print 74398

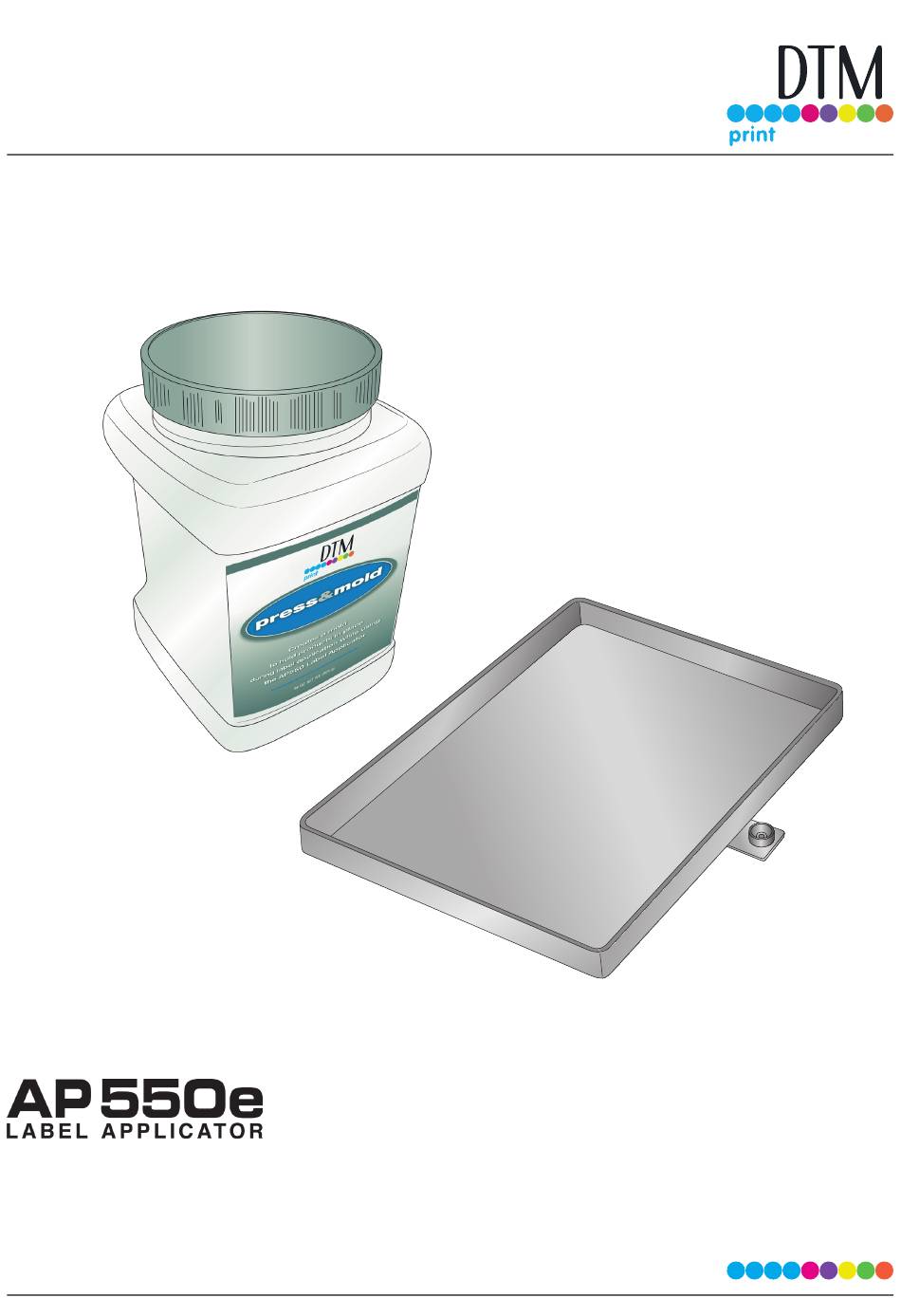

- Page 1 Container Holder Kit for use with the AP550e Label Applicator Instruction Manual © 2019 All rights reserved. For the most recent version of this manual please visit dtm-print.eu...
- Page 2 Application Arm. The Kit comes in “small tray” and “large tray” versions. The following parts are included in the kits: Small Tray - 15 x 20 cm (#74398 includes 2 Small Trays) Press & Mold Molding Compound Large Tray - 25.4 x 30.4 cm...
- Page 3 Section 2: Prepare the Tray Choose the appropriate size tray for your container. Fill the tray completely full with the Press & Mold Molding Compound. Place the tray in an oven. Set the oven temperature to 65°C. Do not microwave! Bake at this temperature for up to 2 hours or until the molding compound pellets have melted together and turned clear.
- Page 4 Section 4: Place the Tray on the Applicator Platform The tray has pins on the bottom that correspond to holes on the movable Container Guide attached to the AP550e Container Platform. Place the tray on the platform so the pins drop into the corresponding holes. If the container does not sit square to the platform (labels will be applied crooked), adjust the angle of the tray.
