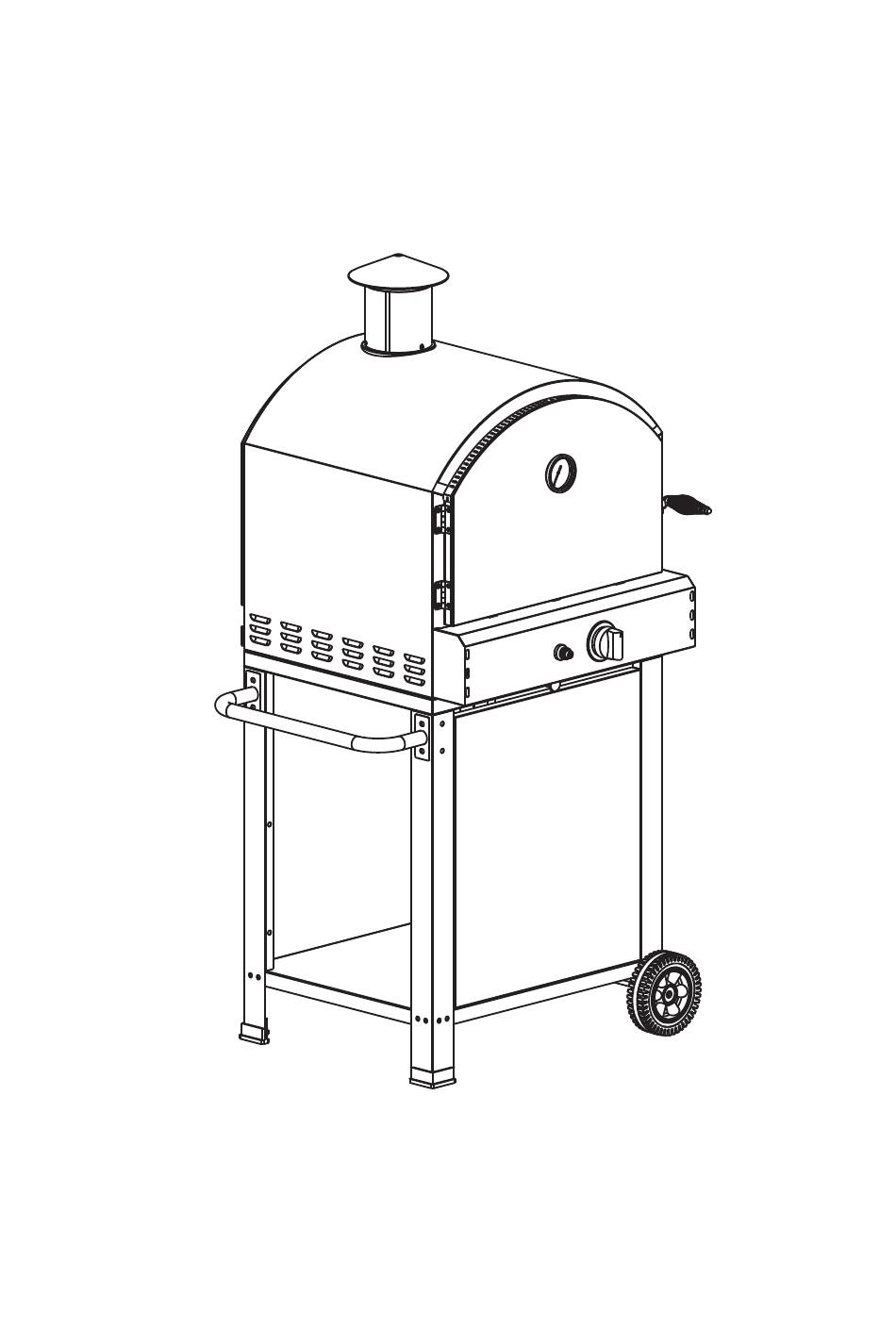

TABLE OF CONTENTS Safety Information…………………………………………………………………....2 Exploded Diagram……………………………………………………………......4 Assembly Instructions………………………………………………………....……7 Gas Cylinder use…………………………………………………………………....13 Operating Instructions..…………………………………………………………....14 Care and Maintenance…………………………………………………………....…16...
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. 1. The installation of this appliance must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Code, CSA/CGA-B149.1.
Page 4
IMPORTANT: We urge you to read this manual carefully and follow the recommendations enclosed. This will ensure you receive the most enjoyable and trouble-free operation of your new gas grill. We also advise you retain this manual for future reference. WARNING: Your grill has been designed to operate using only the gas specified by the manufacturer on the rating plate.
Page 6
Exploded Diagram PART NAME CHIMNEY OVEN DOOR HING HEAT SPACER BACK HEAT-SHIELD BACK PANEL EXTERIOR INTERIOR ASSY LATCH GAS PIPE JOINT GAS PIPE WHEEL CART SUPPORT WHEEL AXLE CHECK NUT CART BOTTOM PLATE CART FRONT PLATE LEG R LEG PLUG LEG L GREASE TRAY HOLDER GREASE TRAY...
ASSEMBLY INSTRUCTIONS Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Assembly tip! (Please lightly tighten the screws during assembly of the cart. When the cart is completed THEN TIGHTEN ALL THE screws.
Page 9
STEP2 Assemble the wheel and wheel axle with 2 pcs check nut as shown. STEP3 M6*10×6 pcs and nut M6×6pcs to Assemble the wheel and wheel axle as shown.
Page 10
STEP4 M6*10×4 pcs and nut M6×4pcs to Assemble the handle as shown. STEP5 Use M4*12×3 pcs to Assemble the chimney as shown.
Page 11
STEP6 Insert the knob as shown. STEP7 Use screw M5*30×4 pcs and heat insulation washer to fix the back heat shield onto the back panel of the oven as shown.
Page 12
STEP8 Use M6*10×4 pcs and nut M6×4pcs to Assemble the body and the cart as shown, use bolt to tighten. STEP9 OPTIONAL ACCESSORIES Put the flame temper and smoker box assy (hang on the cooking grill ,exact position is according to the food position ) into the oven as shown .
GAS CYLINDER USE GAS CONNECTIONS In the case of a problem arising with the hose and regulator please contact your gas oven supplier for a list of approved replacement parts . The hose and regulator assembly parts must be an indication gas association approved part. LEAK TESTING This should be done the first time you connect up the barbecue, and again every time you disconnect and reconnect any fitting.
OPERATING INSTRUCTIONS LIGHTING PROCEDUE 1, Lighting the gas oven is easy ,but must be done with due care. 2, Make sure that gas is turned on at the cylinder ,or that gas is available to the gas oven . 3, Make sure the LPG cylinder is filled. 4, Check that the end of the burner tube is properly located over the valve orifice.
Page 16
Note: “Blowback” is a situation where the flame burns inside the burner , towards the front, recognised by a sharp roaring sound coming from the burner .It is not dangerous unless allowed persist. If this occurs, simply turn the burner off, wait a fem seconds, and then relight.
Care & Maintenance GENERAL MAINTENANCE - Keep outdoor cooking gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. - Do not obstruct the flow of combustion and ventilation air. - Keep the ventilation openings of the cylinder enclosure free and clear from debris. - Visually check the burners.
