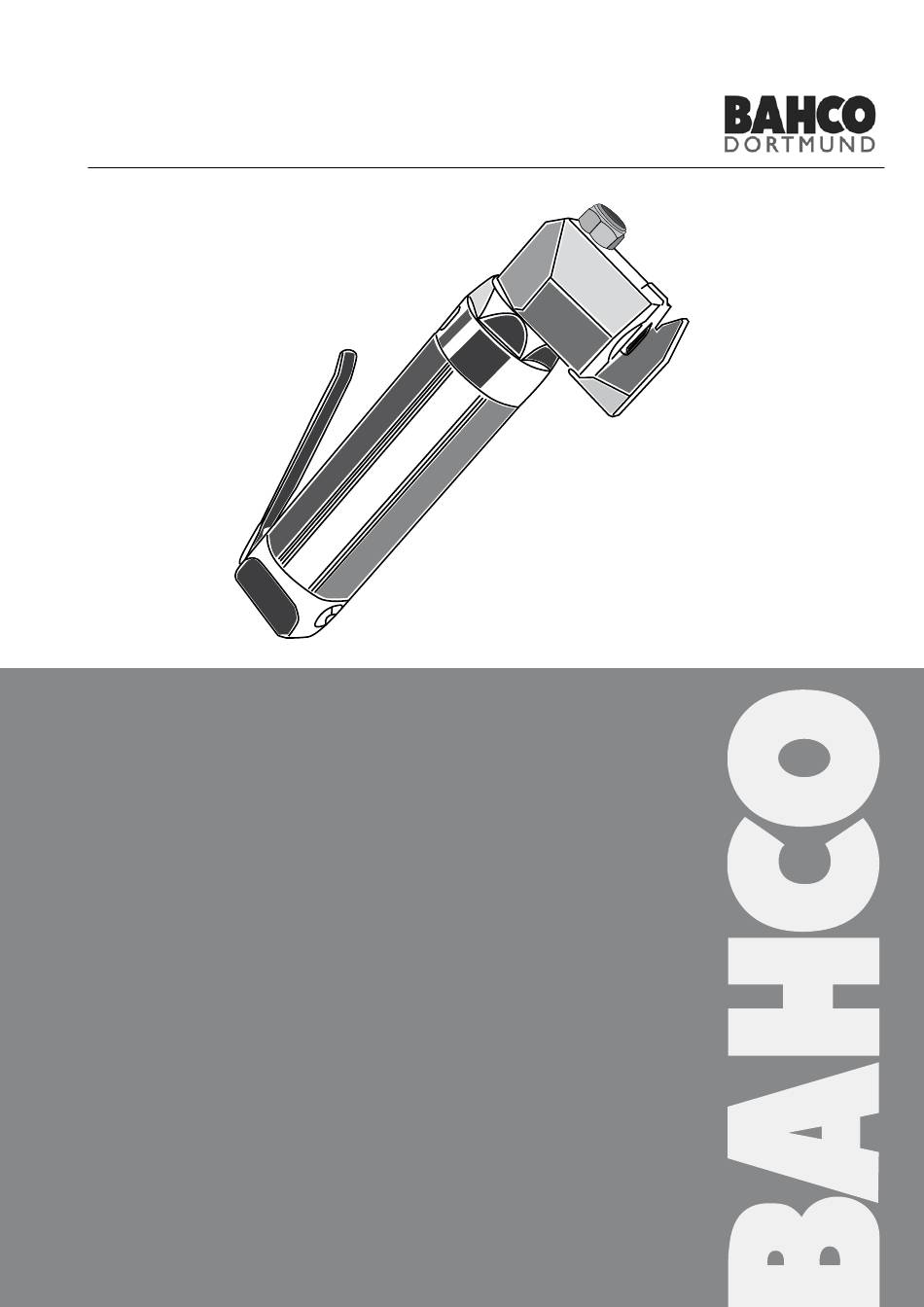

- Page 1 INSTRUCTION MANUAL BAND CUTTER TA10-D327 Documentation commissioner: Andreas Bos Edition: 02-2017...
-
Page 2: Tool Specifications
8. The tool shall be maintained in a safe working condition and examined regularly by trained and competent personnel. 9. Use only parts with this tool, which are recommended an supplied by BAHCO. 10. Any modifi cation undertaken by the customer to the tool, shall be the customers entire resonsibility. -
Page 3: Technical Description
INSTRUCTION MANUAL CONNECTION TO THE AIR SUPPLY We recommend the use of pressure regulators and oiling/ fi lter systems on the main air supply (see diagram below). All air hoses must have a minimum inner diameter of 6 mm or 1/4 inch. The tool is operated at an optimum pressure of 6 bar or 90 Psi. TA10D-327 Pressure gulator and filter... -
Page 4: Maintenance
INSTRUCTION MANUAL MAINTENANCE PRIMING. Priming is always necessary after the tool has been dismantled and prior to operating. It may also be necessary to restore the full stroke after considerable use. The priming procedure should be carried out in a clean area with clean hands. Ensure that the oil is perfectly clean and free from air bubbles. - Page 5 INSTRUCTION MANUAL REPLACING CUTTING BLADE AND CUTTING EDGE. Dismantling • Remove the Pins (36) • Remove the Cutting blade (39) Assembly • Assembly in reverse order of dismantling. • Priming, see above. Dismantling Power Unit • Loosen nut (33) • Remove cross head (28) from hydraulic piston (27). Take care of the hydraulic oil.
-
Page 6: Trouble Shouting
INSTRUCTION MANUAL TROUBLE SHOUTING SYMPTOM POSSIBLE CAUSE REMEDY PAGE Does not cut Low air pressure Adjust to 5-7 bar / 75-100 Psi Low oil level Prime tool Cutting edges unsharp Sharpening Damaged cutting edges Replace cutting blade and edges Leaks oil Worn or defected seals Replace seals and prime tool RECOMMENDED SPARE PARTS... - Page 7 INSTRUCTION MANUAL...
- Page 8 INSTRUCTION MANUAL SPARE PART LIST - TA10D-327 DESCRIPTION ART. NO. DESCRIPTION ART. NO. Spring 1336 5406 Valve 1337 Hydraulic-piston 3402-1 Spring 1339 Cross bar 3403 Silencer 1565 Bearing 6363 5448 O - Ring 6328 Screw 5023 Seal 6514 O - Ring 6320 Oil screw 5047...
- Page 9 BAHCO GmbH & Co.KG Martener Hellweg 60 DE- 44379 Dortmund Phone +49 231 / 91 72 11-0 +49 231 / 91 72 11-22 www.bahco.de info@bahco.de...
