CamPilot URH900A
Full HD 1ch. Network Video Server
User Manual
CamPilot URH900A
Before installing and using the product, please read this
manual carefully.
Be sure to keep it handy for later reference.
The adaptor and LAN cable are sold separately.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CamPilot URH900A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cellinx CamPilot URH900A

  • Page 1 CamPilot URH900A Full HD 1ch. Network Video Server User Manual CamPilot URH900A Before installing and using the product, please read this manual carefully. Be sure to keep it handy for later reference. The adaptor and LAN cable are sold separately.
  • Page 2 ■ Mounting Surface The mounting surface material must be strong enough to support the product. ■ CamPilot URH900A can be used for surveillance purpose. Be thoroughly informed of related regulations prior to installation to ensure compliance with such regulations.

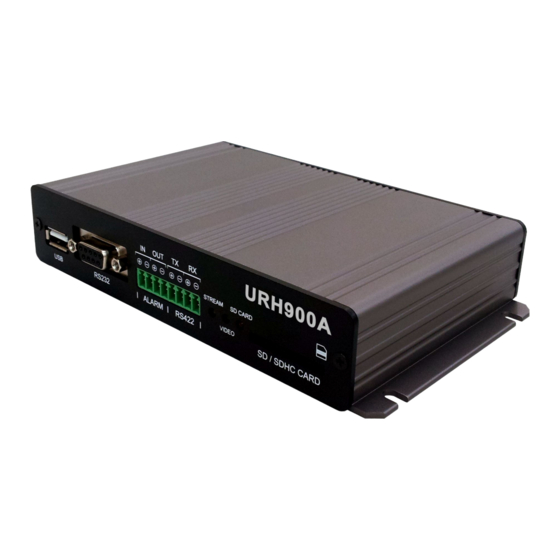

  • Page 3 Overview Features CamPilot URH900A is a Network Video Server that transmits real-time high-resolution digital video and audio data with H.265 / H.264 high compression rate over Internet or Intranet. Appearance 8 Pin connector 1. USB : Reserved 2. RS232 3. ALARM IN / OUT, RS422 4.

  • Page 4: Specification

    Network Protocol SNMP, Syslog, UPnP, Bonjure, ZeroConf, RTP/RTSP, Onvif, Genetec Protocol Web Browser IE 8.0 or above Software Cellinx SDK 4.0 Security MD5 Password / iptables (firewall) / SSL Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Power Requirement DC 12V 1.0A / PoE (IEEE802.3af )

  • Page 5: Basic Connection

    (8) LINE OUT : Line Level ouput (Ø3.5 stereo jack, 8Ω) (9) Video Output : for maintenance (BNC jack) Device control PTZ control by RS422 (485) (ex. Display board) PTZ camera CamPilot URH900A (HD-SDI output) Power Video Output (for test) Condensor Mic.
  • Page 6 Connection PTZ Camera Camera (HD-SDI output) (HD-SDI output) (Coaxial Cable) (Coaxial Cable) (Coaxial Cable) CamPilot URH900A (LAN) (LAN) CamPilot URH900A Router Router (LAN) (WAN) (WAN) (LAN) Internet (Intranet) Monitoring Monitoring Network Connection Configuration Diagram...

  • Page 7: Setting An Ip Address

    Network Setting an IP address Change the network setting value with the program “NVTManagement” 1. NVTManagement execution • Execute the file “NVTManagement.exe” | NVTManagement 2. IP address set-up • Click the button “Discovery”, select the model. • Input the IP address, Subnet Mask, Gateway and DNS Server IP address, click the button “Apply”...
  • Page 8 Network 3. Accessing to CamPilot URH900A with a web browser • Open a web browser on a monitoring PC and enter the IP address assigned to a CamPilot URH900A as following Example> http://192.168.1.2 • The page as below shows up after the connection is completed.
