Table of Contents

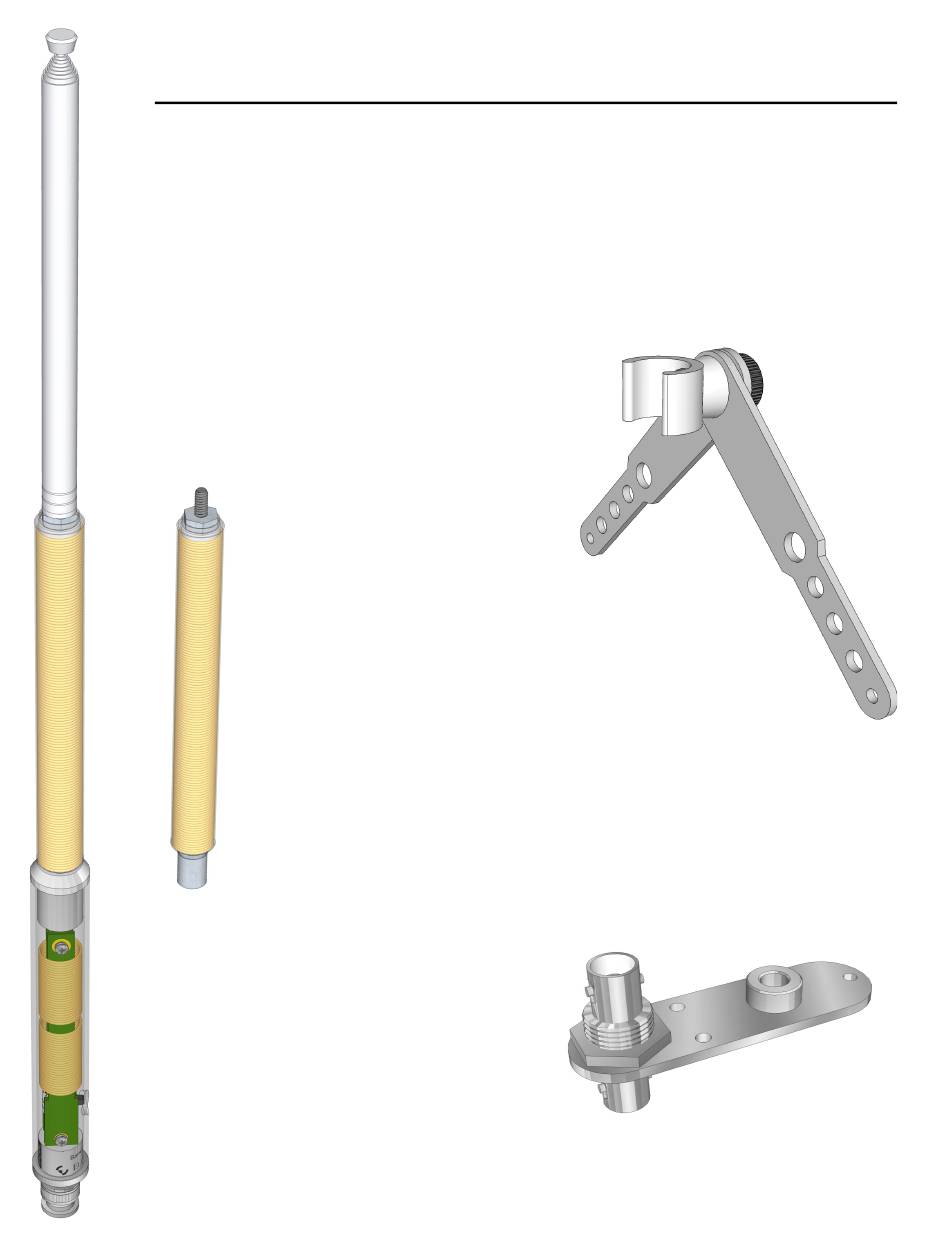

E
LECRAFT
AX1
DUAL BAND (+)
WHIP ANTENNA
Page 2
AXE1
40 METER
EXTENDER
E 7 4 0 3 3 0
R e v . C 2 , 2 1 A u g . 2 0 1 9
AX
-LINE OWNER'S MANUAL
Page 7
C o p y r i g h t 2 0 1 9 , E l e c r a f t , I n c . A l l r i g h t s r e s e r v e d
1
AXB1
WHIP BIPOD
Page 5
AXT1
TRIPOD ADAPTER
Page 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELECRAFT AX Series

Summary of Contents for ELECRAFT AX Series

  • Page 1 LECRAFT -LINE OWNER’S MANUAL AXB1 DUAL BAND (+) WHIP BIPOD WHIP ANTENNA Page 5 Page 2 AXE1 40 METER EXTENDER Page 7 AXT1 TRIPOD ADAPTER Page 6 E 7 4 0 3 3 0 R e v . C 2 , 2 1 A u g . 2 0 1 9 C o p y r i g h t 2 0 1 9 , E l e c r a f t , I n c .
  • Page 2 Introduction The Elecraft AX1 is a compact telescoping whip that disassembles into 6” (15 cm) pieces, so it will fit into small “grab & go” bags... or your back pocket. On the basic unit, a two-position switch selects 20 meters (resonant) or 17/15 meters (a low-loss match can be achieved using an antenna tuner on both bands).

  • Page 3: Manual Adjustment

    NOTE: In cases where it is difficult to achieve a low SWR (< 3:1), transmitting may still be possible at reduced power. Elecraft transceivers can be safely used at high SWR.

  • Page 4: Operating Tips

    Attach the wires to the transceiver via a BNC-to-binding post adapter, such as our model BNC-BP. Elecraft ATUs will usually match this efficient antenna on 40 through 10 m.
  • Page 5 • Firmly tighten the AXB1’s thumb screw. • For storage or transport, fold the legs of the AXB1 together. An AX1, AXB1 and KX2 will all fit in an Elecraft CS40 or ES40 bag. NOTE: The legs of the AXB1 may not be in electrical contact with the whip’s BNC...
  • Page 6 AXT1 Elevating a whip antenna using a tripod may improve effectiveness on both transmit and receive. An AXT1 adapter will Tripod work with most camera tripods having a 1/4-20 threaded mount. Adapter Any lightweight whip with a BNC connector may be used. To use the AXT1: •...
  • Page 7 To set up the AXE1: • Attach the supplied 33 ft (10 m) radial wire to the transceiver at a point near the antenna jack. The Elecraft KX2 and KX3 provide thumb screws for this purpose. (The AX1’s 20/17/15 meter radial and the AXE1 radial may both be connected to the rig at the same time.)

  • Page 8: Specifications

    Counterpoise The counterpoise (or radial) wire supplied with the basic AX1 is usable on all three covered bands (20, 17, and 15 meters). The Wires two inductors in the base unit have been adjusted to provide resonance close to the 20 meter band with this radial length. The AXE1’s longer counterpoise wire is usable on 40 and 30 meters.

  • Page 9: Customer Service And Support

    Elecraft at the time of order. Elecraft products transferred by the purchaser to a third party, either by sale, gift, or other method, who is not disclosed to Elecraft at the time of original order, are not covered by this warranty. If the Elecraft product is being bought indirectly for a third party, the third party’s name and address must be provided at time of order to ensure warranty coverage.
