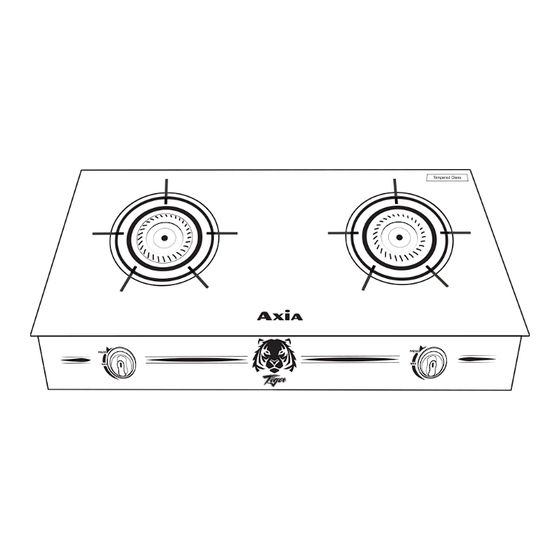

Summary of Contents for Tiger CRYSTAL
- Page 1 USERS’ OPERATION MANUAL CRYSTAL DIAMOND...
- Page 2 TIGER These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.
- Page 3 This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. accident, do The gas cooker is designed for cooking and water boiling purpose. To avoid ...
- Page 4 Features and characteristic Japan-made thickened stainless steel panel or heat-resistant Teflon coated steel panel with shiny, corrosion resistant and anti-abrading surface. With fashioned profile design, luxury, elegant and decent. Big diamenter burner and lengthened gas passage, together makes sufficient gas mixing and ...
- Page 5 Technical parameter Product Name CRYSTAL Class of appliance Class 1 Gas Pressure 2800Pa Heat Iuput (kW) 5.0 kW Destination of country Thailand This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.
- Page 6 Procedures: 1. Take out the gas cooker from its package and check if any accessories missing. 2. Put the accessories such as pan support on to the gas cooker. 3. Turn the gas inlet (at the rear side of the gas cooker) to a proper angle, connect to the gas tube and fasten with tube clamp (tube and clamp to be prepared by user).
- Page 7 Air adjustment To obtain optimum combustion, gas should be mixed with proper proportion of air. Air plate for air incoming control is at the air inlet of burner. When flame shows an abnormal combustion, turn the air plate to adjust the amount of air letting in until the flame color becomes blue. (see fig below) Warning ...
- Page 8 Do not use the appliance for igniting the charcoal. Do not hang up the clothes or towels for drying with the appliance. Do not use the appliance as a barbecue. If there are any leakage, turn off the appliance and the gas supply.
