Exibel ANDVB2692A Quick Manual

Outdoor antenna
with built-in amplifier
Art.no 38-3633 Model ANDVB2692A
Please read the entire instruction manual before use and save it for
future reference. We reserve the right for any errors in text or images
and for making any necessary technical changes to this document.
If you should have any questions concerning technical problems please
contact our Customer Services.
Product description
Outdoor antenna with built-in amplifier. Specially constructed reception
for the terrestrial digital network (DVB-T) or DAB radio.
The packaging includes
• DVB-T outdoor antenna
• Assembly details for wall and pole mounts
• Coaxial cable
• Power inserter
• AC/DC adaptor (230 V AC)
• User's manual
Parts
1. Outdoor antenna
2. Coaxial cable
3. DVB-T digital receiver (not included)
4. Antenna cable (not included)
5. TV (not included)
6. AC/DC adaptor (230 V AC / 50 Hz)
7. Power inserter
8. TV with built-in DVB-T digital receiver (not included)
Installation
Note! The built-in amplifier in the antenna needs power in order
to function. Most terrestrial digital receivers can send out power
via the antenna output. Often one must active the power supply in
the menu of the digital receiver. This function is often called:
Antenna voltage, 5 V or Active antenna in the menu. Check in
the user's manual of the digital receiver, if you are uncertain.
If the digital receiver (or TV with built-in digital receiver) does not have
this function, you must use AC/DC adaptor (6) and the power inserter (7).
GREAT BRITAIN - CUSTOMER SERVICE contact number: 020 8247 9300 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk postal: 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
English

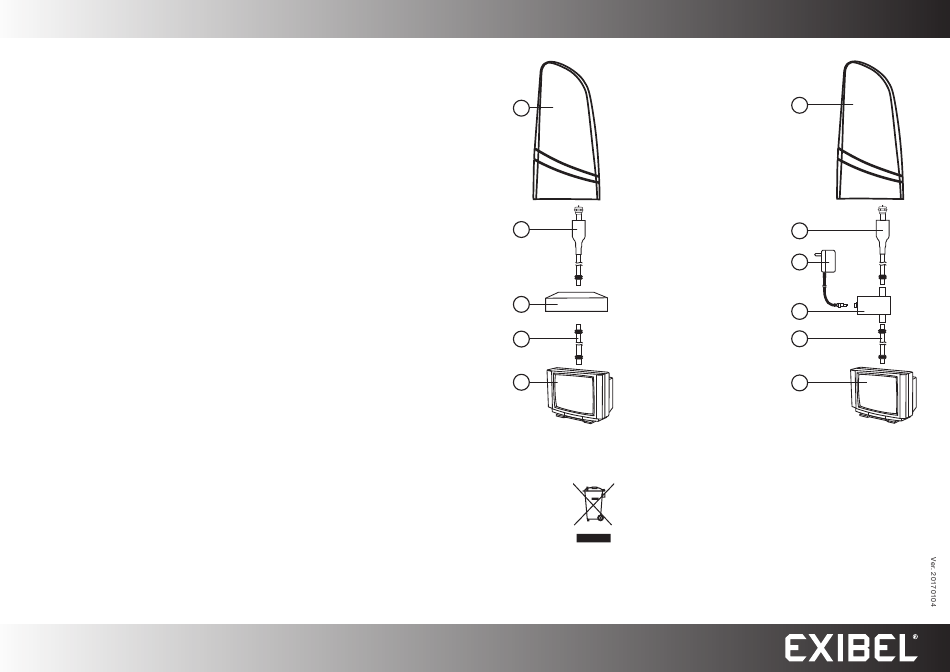

Installation without
AC/DC adaptor
1. Connect the outdoor antenna
(1) to the DVB-T receiver (3) with
the enclosed coaxial cable (2).
2. Connect an antenna cable (4) (not
included) between DVB-T receiver (3)
and the TV (5).
3. Mount the outdoor antenna as high
up as possible for the best possible
reception (the coaxial cable is
5 meters long).
4. Adjust the location of the outdoor
antenna before the final assembly.
Responsible disposal
This symbol indicates that this product should not be
disposed of with general household waste. This applies
throughout the entire EU. In order to prevent any harm to
the environment or health hazards caused by incorrect
waste disposal, the product must be handed in for
recycling so that the material can be disposed of in a
responsible manner. When recycling your product, take
it to your local collection facility or contact the place of
purchase. They will ensure that the product is disposed of
in an environmentally sound manner.
Installation with
AC/DC adaptor (6)
1. Connect the outdoor antenna
(1) to power inserter (7) with
1
the enclosed coaxial cable (2).
2. Connect an antenna cable
(4) (not included) between
the power inserter (7) and TV
with built-in digital receiver (8).
3. Mount the outdoor antenna
as high up as possible for
the best possible reception
(the coaxial cable is 5 meters
long).
4. Adjust the location of
2
the outdoor antenna before
the final assembly.
3
4
5
Specifications
Power supply
Receiving frequency
Amplifying
1
2
6
7
4
8
6 V DC, 50 mA
VHF 174–230 MHz
UHF 470–790 MHz
VHF 15 dB Min.
UHF 15 dB Min.
