Summary of Contents for Engel MT60F-U1

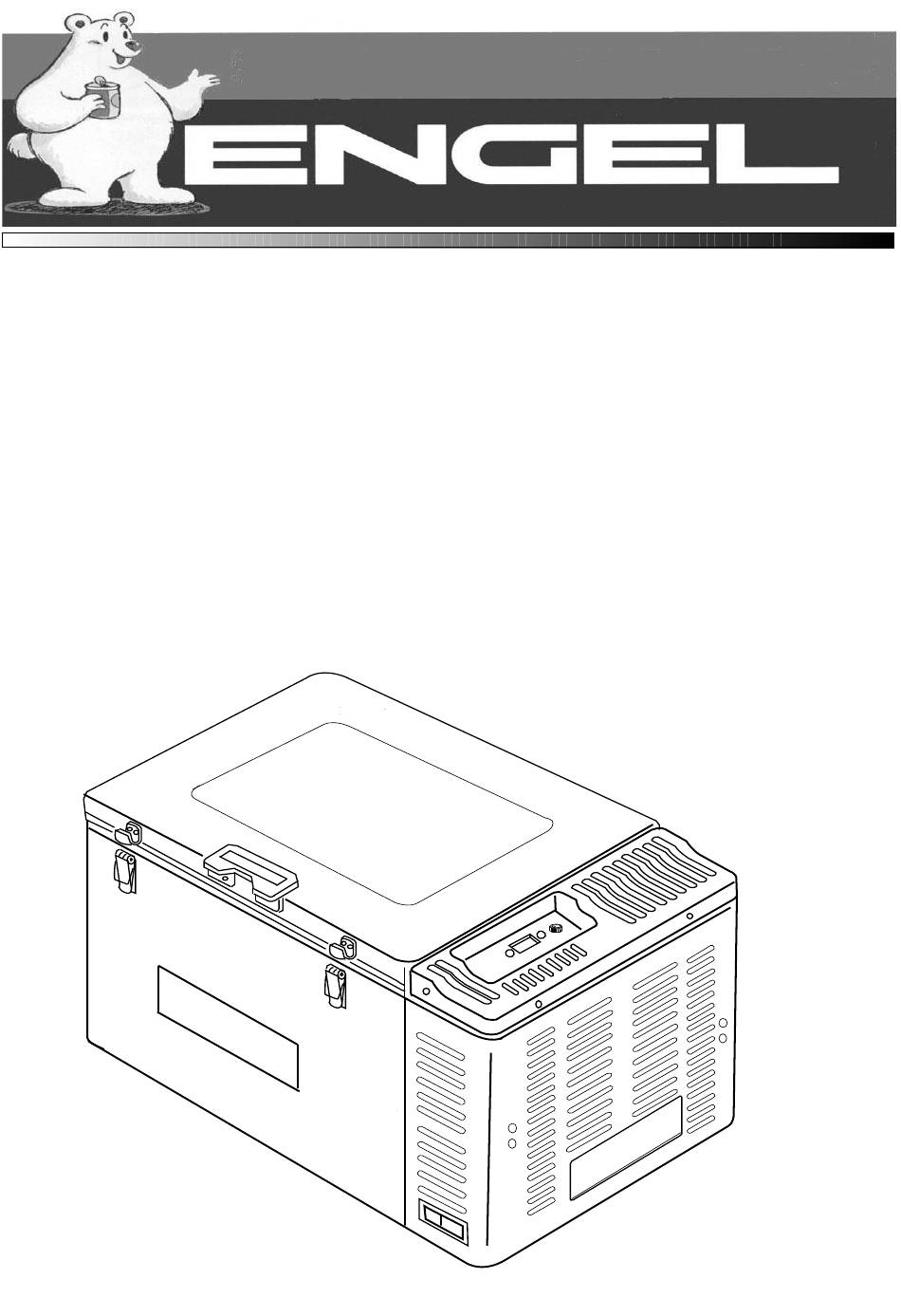

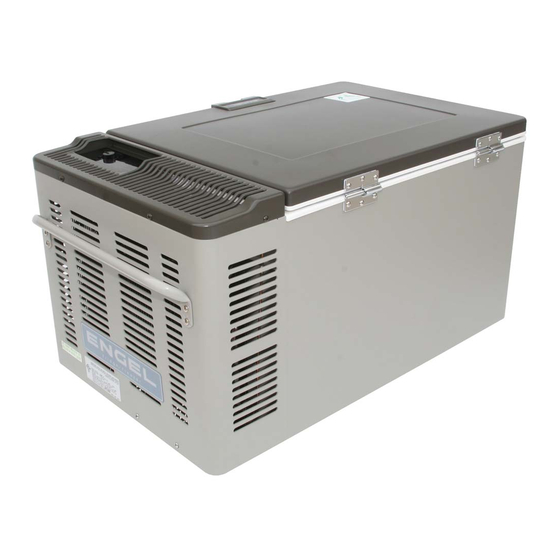

- Page 1 SERVICE MANUAL MODEL : MT60F-U1 0642 060 1R21 MT60F-U1-C 0642 060 2R00 MT80F-U1-S 0642 080 1R01 2021.11#0...
-
Page 2: Table Of Contents
2. WIRING DIAGRAM ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-1 Block Diagrams ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-2 Wiring Diagrams ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 3. PART NAME ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 3-1 Parts name (MT60F-U1 / MT80F-U1-S) ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 3-2 Parts name (MT60F-U1-C) ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4. INSTALLATION ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4-1 How to Install the Refrigerator ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 5. TROUBLE SHOOTING ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・... -
Page 3: Specifications
1. SPECIFICATIONS ■ Specifications Table MODEL MT60F-U1 MT80F-U1-S MT60F-U1-C 25 (Freezing side) STORAGE VOLUME liter 32 (Refrigerator side) EXTERNAL 31.6×20.5×17.4 31.6×20.5×22.1 31.6×20.5×17.4 DIMENSIONS 802×520×441 802×520×561 802×520×441 W×D×H 8×15×12.5 (FREEZER) INTERNAL 20.4×14.9×12.4 20.2×16.1×14.8 10×15.5×12.5 (FRIDGE) DIMENSIONS 205×378×315 (FREEZER) 517×378×315 514×410×375 W×D×H 260×400×315 (FRIDGE) -
Page 4: Dimensions (Mt60F-U1 / Mt80F-U1-S)
1. SPECIFICATIONS ■ Dimensions (MT60F-U1 / MT80F-U1-S) Unit (mm) ※ Tolerance is omitted 802 (MAX. OUTSIDE) 517(MT60F) 514(MT80F) 520 (MAX.OUTSIDE) -
Page 5: Dimensions (Mt60F-U1-C)
1. SPECIFICATIONS ■ Dimensions (MT60F-U1-C) Unit (mm) ※ Tolerance is omitted 802 (MAX. OUTSIDE) 520 (MAX.OUTSIDE) -
Page 6: Wiring Diagram
2. WIRING DIAGRAM ● Block Diagrams ● Wiring Diagrams... -
Page 7: Part Name
3. PARTS NAME ■ Parts name (MT60F-U1 / MT80F-U1-S) -
Page 8: Parts Name (Mt60F-U1-C)
3. PARTS NAME ■ Parts name (MT60F-U1-C) -
Page 9: Installation
4. INSTALLING A REFRIGERATOR ■ How to Install the Refrigerator. Your shockproof fridge is best installed on a solid surface. Be sure your fridge is not placed near a gas stove, heater or other heat-generating appliances. Adequate ventilation and suitable distance from each wall (at least 150mm or more) is necessary for the maximum cooling efficiency and minimum electric current consumption for "free standing use"... -
Page 10: Trouble Shooting ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 8~10
5. TROUBLE SHOOTING Checking Test result Judge Fixing Is the output voltage from the power Power supply is Abnormal supply to the compressor normal? Replace the Lower than AC１３Ｖ Approx. AC13V - 18V ※１ broken power supply. ■ Does not get Cold Normal See page 11 【Check 2】... -
Page 11: Cooling Is Weak
5. TROUBLE SHOOTING Checking Test result Judge Fixing ■ Cooling is Weak Ambient temperature is Please keep the ambient Ambient temparature is higher than 30℃ temperature below 30℃. too high. Make at least 150mm room Insufficient ventilation. Is the machine part ventilated enough? between unit and wall. -
Page 12: Refrigerator Is Too Cold
5. TROUBLE SHOOTING Checking Test result Judge Fixing ■Ｒｅｆｒｉｇｅｒａｔｏｒ is too cold. (Can not be temperature adjustment) Replace the Thermistor is 0Ω shorted. thermistor. Resistance of the thermistor. Abnormal (Power supply, temperature controller side) See page 11 Replace the Approx. 2kΩ-10kΩ ※2 Power supply &... -
Page 13: Checking Points ＆ Measurement
5. CHECKING POINT ＆ METHOD 【Check 1】 Fuse (Fig.1) Fig.1 ◇ Check the resistance of fuse by tester. Test result Assessment 0Ω Normal ∞Ω Broken FUSE 15A 【Check 2】 Input Voltage of the Compressor (Fig.2) Fig.2 ◇Checking point ・Check at 2 pin coupler of Inverter (Fig.2) or at input terminals of the compressor. -
Page 14: Check 5】 Resistance Of Control Assy
5. CHECKING POINT ＆ METHOD 【Check 5】 Resistance of Control Assy （Fig.5) Fig.5 ◇Checking point Remove 6pin coupler. Check the resistance at between terminals brown and black. Test result Assessment Dial position OFF ～ 5 Approx. 17kΩ～5kΩ Normal ∞Ω Broken 0Ω Short Circuit 【Check 6】... -
Page 15: Replacement Procedures ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 13~17
(2) Remove 2 screws. 〔2〕 (MT60F ONLY) (3) Remove 2 screws and take off the pipe cover. 〔3〕 〔3〕 〔4〕 (4) Detach the rubber grommet. 〔4〕 MT60F-U1-C MT80F-U1-S (5) Cut the fasteners. 〔5〕 〔5〕 ③ Remove the thermistor (Fig.4) Fig.4... - Page 16 PRODCEURES FOR REPLACING 〔1〕 ④ Remove screws at the hanger of the compressor. (Fig. 5) Fig.5 (1) Remove 5 screws. 〔1〕 〔2〕 (1) Remove the earth wire. 〔2〕 EARTH WIRE 〔1〕 ⑤ Remove the cooling unit. (Fig.6), (Fig.7) Fig.6 (1) Take out cooling unit from the cabinet. WORK TIPS Please remove evaporator and capillary tube carefully for not to damage.
-
Page 17: How To Replace Power Supply
PRODCEURES FOR REPLACING ■ How to Replace Power Supply Fig.1 ① Remove motor cover. (Fig.1) (1) Remove 6 screws. ② Pull out all the couplers at power supply. (Fig.2) Fig.2 POWER SUPPLY (1) Motor input coupler. 〔1〕 (2) Fan motor coupler. 〔2〕 〔4〕... - Page 18 PRODCEURES FOR REPLACING ■ How to Replace Control Assy and Degital Thermometer Fig.1 (MT60F-U1-C / MT80F-U1-S) ① Remove the motor cover (Fig.1) (1) Remove 4 screws which hold Motor Cover. ② Remove the control assy and degital thermometer. (Fig.2) 〔1〕...
-
Page 19: How To Replace Fan Motor
<Compressor side> ① Remove the cooling unit. (See page 13) ② Remove the fan motor. (Fig.1) (1) Remove 2 screws. 〔1〕 〔1〕 <Refrigerator inside> (MT60F-U1-C) Fig.1 ① Remove the cooling unit. (See page 13) 〔2〕 ② Remove the fan code. (Fig.1) (1) Remove the screw from the clamp.
