Sound Pick-up Microphone Kits
WARNING:
Please consult with your legal advice regarding Audio Recording. See Important Notice on page 6.
Copyright © 2010. All Rights Reserved.
High Performance
Installation and Operating Manual

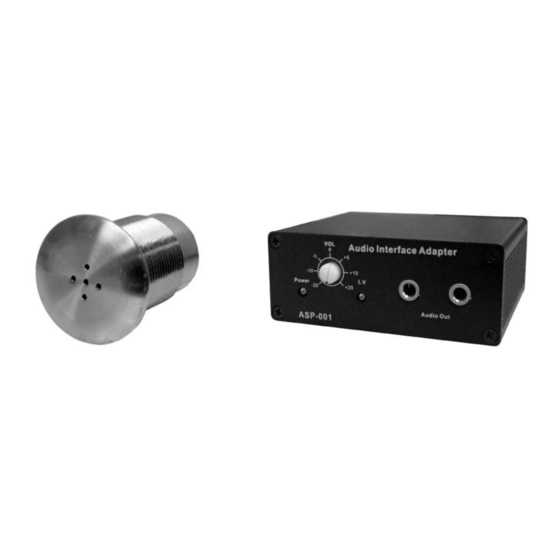

Audio Monitoring System Kit A
For Indoor & Outdoor
Audio Monitoring System Kit B
ASM-AK
ASM-BK
For Indoor Only
1
OEM Version
REV012011-V31
Advertisement
Table of Contents
Summary of Contents for Sentry US ASM-AK
- Page 1 OEM Version High Performance Sound Pick-up Microphone Kits Installation and Operating Manual Audio Monitoring System Kit A ASM-AK For Indoor & Outdoor Audio Monitoring System Kit B ASM-BK For Indoor Only WARNING: Please consult with your legal advice regarding Audio Recording. See Important Notice on page 6.
- Page 2 WARRANTY Sentry US warrants that at the time of shipment products manufactured by Sentry US to be free of defects in material and workmanship. Should a defect appear with one year (12 months) from date of shipment, Sentry US will, at its sole discretion, repair or replace the defective equipment.
- Page 3 FEATURES ASM-AK • Advanced Denoise & Echo Cancelling Circuit • Omni-Directional Monitoring Range 100ft / 9m • 12V DC Current: 30mA • Output Level: 0~6V • Sensitivity: -47dB • Frequency Response: 20Hz~20KHz • Impedance: 600Ω (Imbalance) ASM-BK • Advanced Denoise & Echo Cancelling Circuit •...
- Page 4 Installing the Audio Interface Adapter The ASP-001 Audio Interface Adapter serves as an interface device between the microphone and the audio receiver (DVR/VCR, PC sound card, etc.). The ASP-001 can be installed several ways: 1. Wall mounted close to DVR/VCR or IP Network Camera, etc. 2.
- Page 5 To apply power to the system, P12DCL500 12V DC linear power supply is recommended. First connect small end (female 90° plug) into 12V DC jack on the ASP-001 audio interface, then connect 2-prong power block to a standard 110V A outlet or power strip. CONNECTION BETWEEN THE ASP-001 AND A DVR, IP NETWORK CAMERA WITH 3.5mm MONO/RCA TYPE AUDIO CONNECTIONS To make connection to DVR, plug the 3.5mm cable (supplied) into the audio out jack located on the front of ASP-001,...
- Page 6 SPECIFICATIONS Audio Monitoring System Kit P.I.C. D-51 D-52 Model ASM-A ASM-B Indoor & Outdoor Indoor Indoor/Outdoor Wall Ceiling Mount Type 100ft / 9m 380ft / 35m Monitoring Range Omni-directional Omni-directional Denoise Technology Echo Canceling Microphone 0~6V Output Level -47dB Sensitivity 20Hz~20KHz Frequency Response 600Ω...
