Operating Instructions
CHARGERY
BM16LF
V3.0
Microprocessor controlled high performance Battery Monitor
For 3S~16S LiFePO4 battery pack.
Chargery Power Co., Ltd.
Head Office
Road, Nanshan Shenzhen, 518054, China.
Add: Chuangye
Zip code: 518054
Tel: +86 755 2643 6165
Fax: +86 755 2641 2865
Email:
admin@chargery.com.cn
Web: www.chargery.com
Advertisement
Table of Contents
Summary of Contents for Chargery BM16LF
- Page 1 Operating Instructions CHARGERY BM16LF V3.0 Microprocessor controlled high performance Battery Monitor For 3S~16S LiFePO4 battery pack. Chargery Power Co., Ltd. Head Office Road, Nanshan Shenzhen, 518054, China. Add: Chuangye Zip code: 518054 Tel: +86 755 2643 6165 Fax: +86 755 2641 2865 Email: admin@chargery.com.cn...

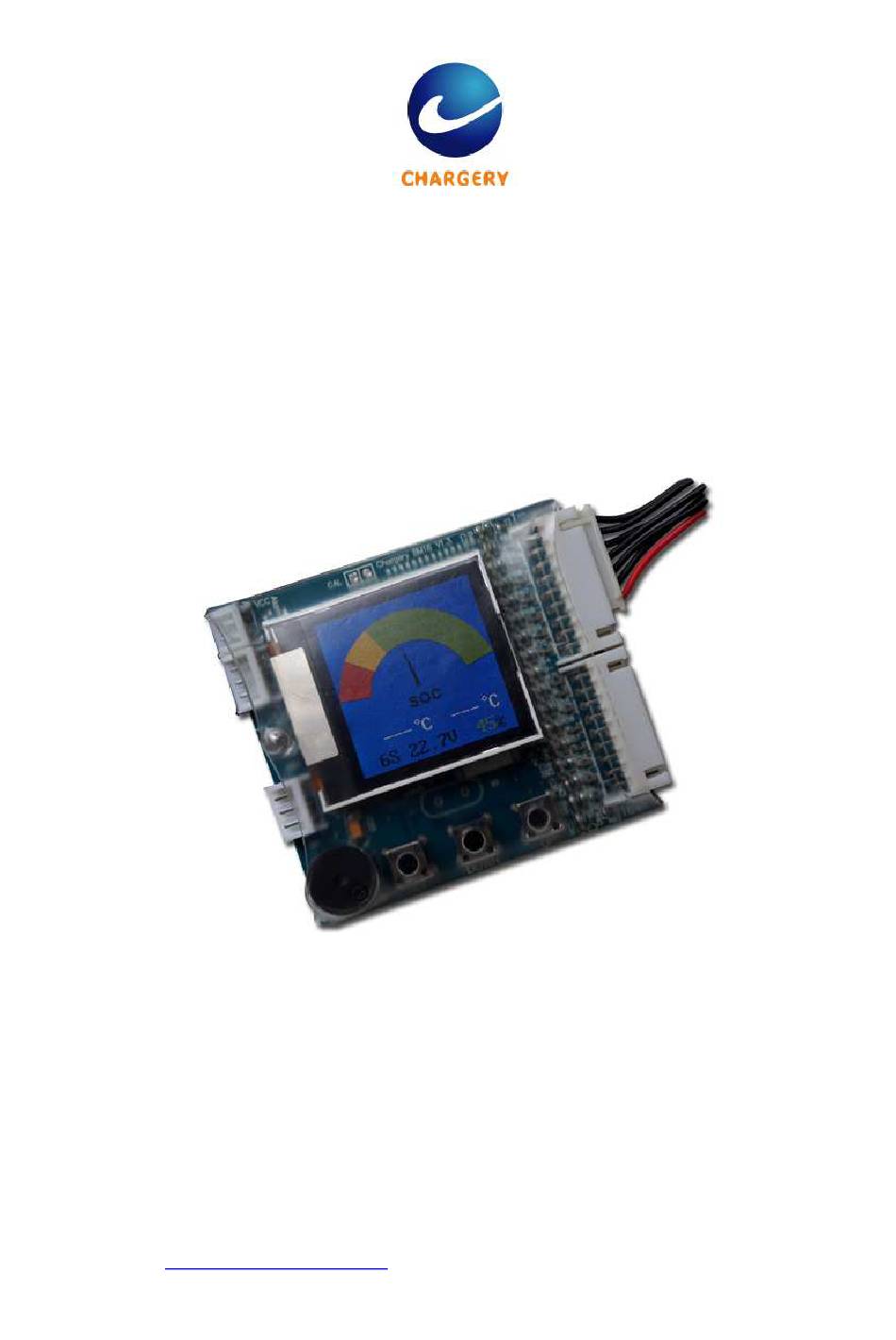

- Page 2 Thanks for your purchasing the Battery saver, please read the manual carefully before using. Chargery Battery Saver BM16LF is for 3S ~ 16S LiFe battery applied to E-bike, E-scooter etc., High light red LED and loud beepers (85Db) make sure battery operation safety. The unit is with TFT color LCD display battery voltage, cell voltage, 2 battery temperature, and battery SOC (State of Charge).
- Page 3 The unit will initialize the beeper and LED, beeper sounds once time, warning LED flash once time. 2 seconds later, the BM16LF will display battery SOC (State Of Charge) as same as car dashboard., two battery temperatures, cell count, battery pack voltage, and battery gauge in digital percentage on the bottom line from left to right.
- Page 4 3S-16S LiFePO4 battery Monitor and Saver BM16LF V3.0 battery 2# into socket 2 separately. Take one 8S battery and one 4S sample as following: Figure 2 Cell 1 Socket 1 Cell 2 Alarm Port Cell 3 Temperature sensor Cell 4...
- Page 5 Connect your battery to BM16LF Press SET button for 3 seconds enter into Program Setup menu. Press UP or DOWN button select the item, press SET shortly make the value flash, and press UP or DOWN change the value.
- Page 6 3S-16S LiFePO4 battery Monitor and Saver BM16LF V3.0 Alarm Remind If the device detects the alarm events, including over charge, over discharge, over temperature and over difference voltage, it can do: The buzzer beeps and LED flash. You can press UP or DOWN button check the...
- Page 7 BM16LF V3.0 Warranty and Service Chargery Power Co., Ltd. as manufacture of R/C model power warrants its charger and saver, monitor etc. to be free of defects in material and workmanship. This warranty is effective for 12 months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect, the accessory will be replaced or repaired.
