CTM-ONE M SOLAR INSTALLATION GUIDE

CTM-ONE M SOLAR

1.1

Overview

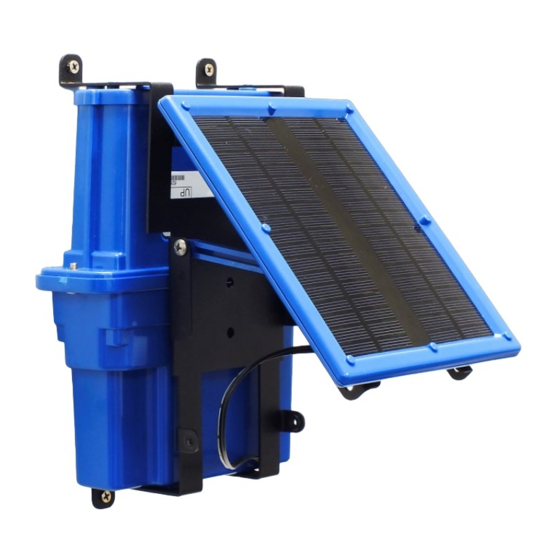

The CTM-ONE M Solar is a standalone ruggedized system for remote telemetry monitoring. It has an

integrated solar panel and battery, with advanced logic for monitoring charge level and battery level, to

optimize reporting in the most adverse of conditions. It is designed to be field installed with minimal

tools and setup. This Guide does not cover SIM installation or device configuration. The CTM-ONE will

be pre-configured with sensors and/or interconnects to downstream sensors.

The CTM-ONE M can be mounted vertically or horizontally. The mounting bracket can be adapted for

pipe or wall or platform mounting.

SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0

Quick Installation Guide

Table of Contents

Need help?

Do you have a question about the CTM-ONE M SOLAR and is the answer not in the manual?

Questions and answers

Summary of Contents for cypress solutions CTM-ONE M SOLAR

Page 1 CTM-ONE M SOLAR Overview The CTM-ONE M Solar is a standalone ruggedized system for remote telemetry monitoring. It has an integrated solar panel and battery, with advanced logic for monitoring charge level and battery level, to optimize reporting in the most adverse of conditions. It is designed to be field installed with minimal tools and setup.
Page 2 Installation The CTM-ONE M Solar should be mounted facing true South (non-magnetic) in the Northern Hemisphere, or true North in the Southern Hemisphere. The solar panel can be tilted to various angles based on geographic location of installation (refer to Appendix A for information about setting Solar panel tilt angles).
Page 3 Device Activation The CTM-ONE M Solar has two embedded magnets activated (reed) switches that are used to turn power on to wake up the device. Removal of the magnets held in place by adhesive tape will trigger the switch. 1.3.1 Initial Power UP After installation remove the magnet held in place by the fiber tape.
Page 4 For Solar panel tilt angles this document refers to Tilt angles measured from horizontal. The tilt angle can be adjusted by moving the two small braces to different hole positions on the mounting bracket and solar panel L-brackets. © 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE- SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0...
Page 5 © 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE- SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0...
Page 6 © 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE- SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0...
Page 7 The magnet can be attached to the black metal frame when not being used to reset the device. If revisiting the site at a later date make sure to bring strong adhesive tape to hold the magnet in place. © 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE- SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0...
Page 8 Technical Support Cypress Solutions Service Support Group 1.877.985.2878 or 604.294.4465 9.00am to 5.00pm PST support@cypress.bc.ca © 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE- SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0...
