Summary of Contents for Atom AWE-T1200
- Page 1 AWE-T1200 Multifunction Cold Welding Machine USER MANUAL CAUTION : PLEASE READ THIS USER MANUAL CAREFULLY BEFORE WELDING !
-
Page 2: Instructions For Safe Use
1: INSTRUCTIONS FOR SAFE USE The design of this welding machine has taken safety into account, but be sure to follow the precautions in this manual when using it, as this may cause a major accident ！ To avoid major accidents, please observe the following regulations: This machine must not be used for jobs other than welding Read this manual carefully before use to avoid causing major accidents... -
Page 3: Working Principle
It automatically controls arcing to improve welding stability ignorer to get a beautiful welding surface. AWE-T1200 can be used in stainless steel, alloy steel, carbon steel, copper and other non-ferrous metals welding. The overall power conversion efficiency of the welder is more than 85% in general. -
Page 4: Machine Installation

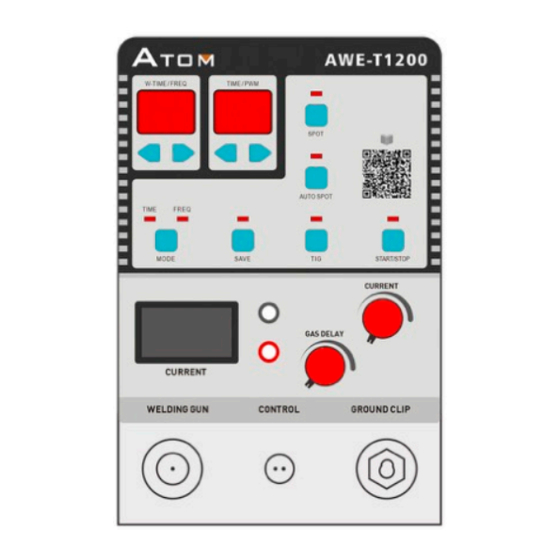

Please use 220V single-phase AC power supply. If power supply is not stable please use a stabilizer, if higher than 220v it may cause a damage to the machine. SWITCH/CABLE SPECIFICATION SHEET MODEL NUMBER AWE-T1200 POWER SWITCH RATED CURRENT INPUT >= 2.5m㎡... - Page 5 Both of the two modes can adjust pulse time and interval time on AUTO SPOT mode SAVE button: AWE-T1200 can save 20 groups of settings. When parameters set to right values press and hold SAVE button for 3 seconds, LED will turn to red, release SAVE button you will see “CC”...
-
Page 6: Start Welding
4: START WELDING A. Press power switch on the back side of the machine, fan start rotating. B. Press START/STOP button on the front panel. C. Select welding mode base on different materials (SPOT / AUTO SPOT / TIG). D. Rotate CURRENT knob to set welding current. E. - Page 7 Flat surface welding method: Here mentioned flat surface include flat and arc surface. Welding arc should heat the workpiece first, only after the workpiece melted then the welding wire can transition to the workpiece to form qualified welding points. During operation the tungsten needle distance from the workpiece should close than tungsten needle distance from the wire.
- Page 8 5: FAULT DIAGNOSIS AND ELIMINATION QUESTIONS REASONS SOLUTIONS Put tungsten needle from wire about 0.3-1.0mm distance, at the same time 1、Tungsten needle too close keep 0.2-0.7mm to the workpiece. do to the wire and too far from the not move the torch when step on the workpiece foot pedal.
- Page 9 Made in China. QINGDAO ATOM WELDING EQUIPMENTS CO., LTD. Website: www.atomwelding.com Support email: info@atomwelding.com...
