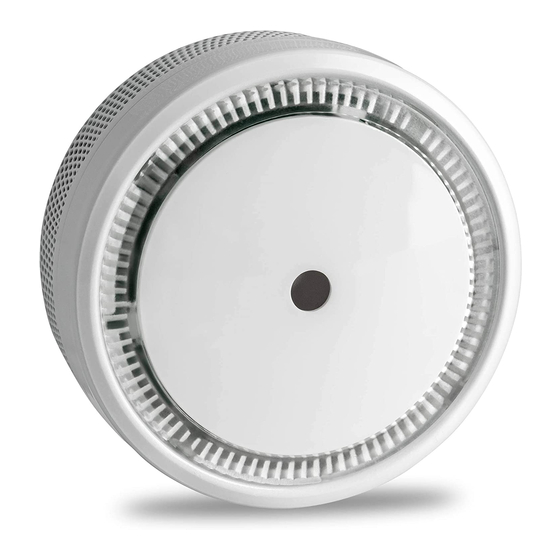

Operating instructions for the smoke alarm detector type: GS522
Index
1.
Safety instructions............................................................................................................................ 3
2.
Mounting location in rooms of the smoke alarm detectors .............................................................. 3
2.1 Smoke alarm detectors should be installed in the following rooms: ................................................ 3
2.2 Rooms where no smoke alarm detector should be installed ........................................................... 5
3.
Installation ........................................................................................................................................ 6
4.
Startup .............................................................................................................................................. 7
4.1 Activation of the smoke alarm detector............................................................................................ 7
4.2 Function Control of the smoke alarm detector ................................................................................. 7
4.3 Temporary muting the Alarm ............................................................................................................ 8
4.4 Recurrent self-test of the smoke alarm detector on its function ...................................................... 8
5.
Explanation of the LED modes ........................................................................................................ 8
6.
Technical Data ................................................................................................................................. 8
7.
Information to the re-built battery ..................................................................................................... 9
8.
Reasons for triggering a false alarm ................................................................................................ 9
9.
Behavior in case of fire .................................................................................................................... 9
10. Maintenance and cleaning ............................................................................................................. 10
11. Disposal of waste batteries ............................................................................................................ 10
12. General Disposal ............................................................................................................................ 11
13. CE Declaration of Conformity ......................................................................................................... 11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEBSON GS522

Summary of Contents for SEBSON GS522

  • Page 1: Table Of Contents

    Operating instructions for the smoke alarm detector type: GS522 Index Safety instructions..........................3 Mounting location in rooms of the smoke alarm detectors .............. 3 2.1 Smoke alarm detectors should be installed in the following rooms: ..........3 2.2 Rooms where no smoke alarm detector should be installed ............5 Installation ............................
  • Page 2 Thank you for choosing a product of SEBSON. Please read the instructions carefully and keep them for looking up before start-up this product. A long and failure-free operation can only be guaranteed if the installation and start-up is done properly.

  • Page 3: Safety Instructions

    1. Safety instructions  Note: The alarm sound is very noisy! Your hearing can be damaged if you are exposed to the loud alarm sound over a longer period of time!  Please do not paint over the smoke alarm detector with paint or similar! ...
  • Page 4  Bedrooms: If several bedrooms are in the house, then the attachment of smoke alarm detectors in each bedroom are advised.  Corridors: Install a device in each corridor that leads to a bedroom. If the corridor is longer than 9m, install a device at the beginning and end of the corridor. ...

  • Page 5: Rooms Where No Smoke Alarm Detector Should Be Installed

    be placed possible so that this is at least 50cm from the side wall and 61cm mounted away from the corner of the room (see Figure 3). Figure 3: Mounting the smoke alarm detector on the ceiling  On ceiling beams, which are thicker than 20 cm, no installation of smoke alarm detector should be done.

  • Page 6: Installation

    1. LED control lamp 2. Speaker 3. TEST-Button 3. Installation Before starting up this product, please check for external damage. In case of visible external damage we immediately dis-advise the start-up of this product! Please remove all packaging material of this product before the first start-up. 1.

  • Page 7: Startup

    1. Dowel (Ø 5mm) 2. Mounting base 3. Holes for screws for fixing 4. Screw 5. Retainer of the bayonet connection 6. Body-housing 4. Startup Activation of the smoke alarm detector The smoke alarm detector will be activated by fixing the alarm housing to the mounting cover (see chapter 3).

  • Page 8: Temporary Muting The Alarm

    Attention: Test the smoke alarm detector weekly to its function by pressing the test button. It even beeps once and the alarm stops automatically after releasing the TEST button. Temporary muting the Alarm In a false alarm, which was not caused by a fire, the alarm can be switch off for about 10 minutes. However you must absolutely make sure that the alarm was not activated by a fire, but rather e.g, by strong smoke during the cooking or by strong smoking of cigarettes or cigars in small rooms! To temporarily turn off the alarm, press the TEST button.

  • Page 9: Information To The Re-Built Battery

    Temperature region: 0°C until +45°C ≥ 85dB (A) within 3m Alarm Volume: 7. Information to the re-built battery This smoke alarm detector is equipped with a non-replaceable lithium battery. The battery will last approximately 10 years during normal operation. Should the battery will be weaker, every 40 seconds a clearly perceptible signal will be sent out from the smoke alarm detector.

  • Page 10: Maintenance And Cleaning

    (for example at municipal collection points and trade). Otherwise, you can also return the batteries and / or accumulators by post to us: SEBSON - Gernotstr.17-44319 Dortmund – Germany Batteries and / or accumulators which contain harmful substances are marked with the...

  • Page 11: General Disposal

    1 Battery containing more than 0,002 mass percent of cadmium 2 Battery containing more than 0,0005 mass percent of mercury 3 Battery containing more than 0,004 mass percent of lead The harmful Substances which are contained in the batteries, may cause danger to health and the environment in case of improper disposing.
  • Page 12 Durability of operational reliability; corrosion PASS resistance Durability of operational reliability; electrical PASS stability The declaration of performance for this product can be found under the following link: www.sebson.de/DOP_GS522_EN_N.pdf SEBSON: Sebastian Sonntag - Gernotstr.17 - 44319 Dortmund – Germany - www.sebson.de...
