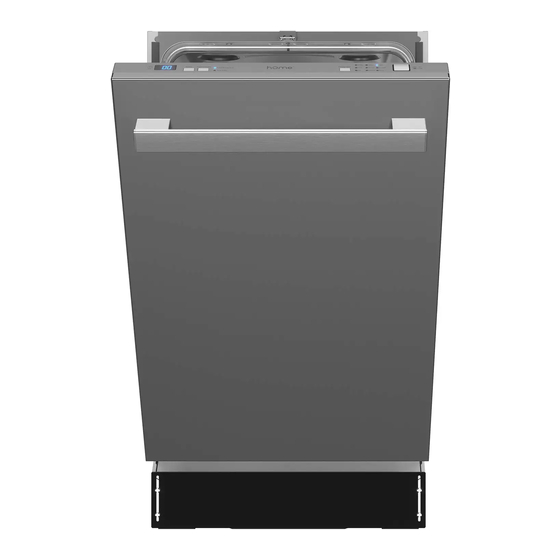

18" Built In Dishwasher
HME030286N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HME030286N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home HME030286N

Summary of Contents for Home HME030286N

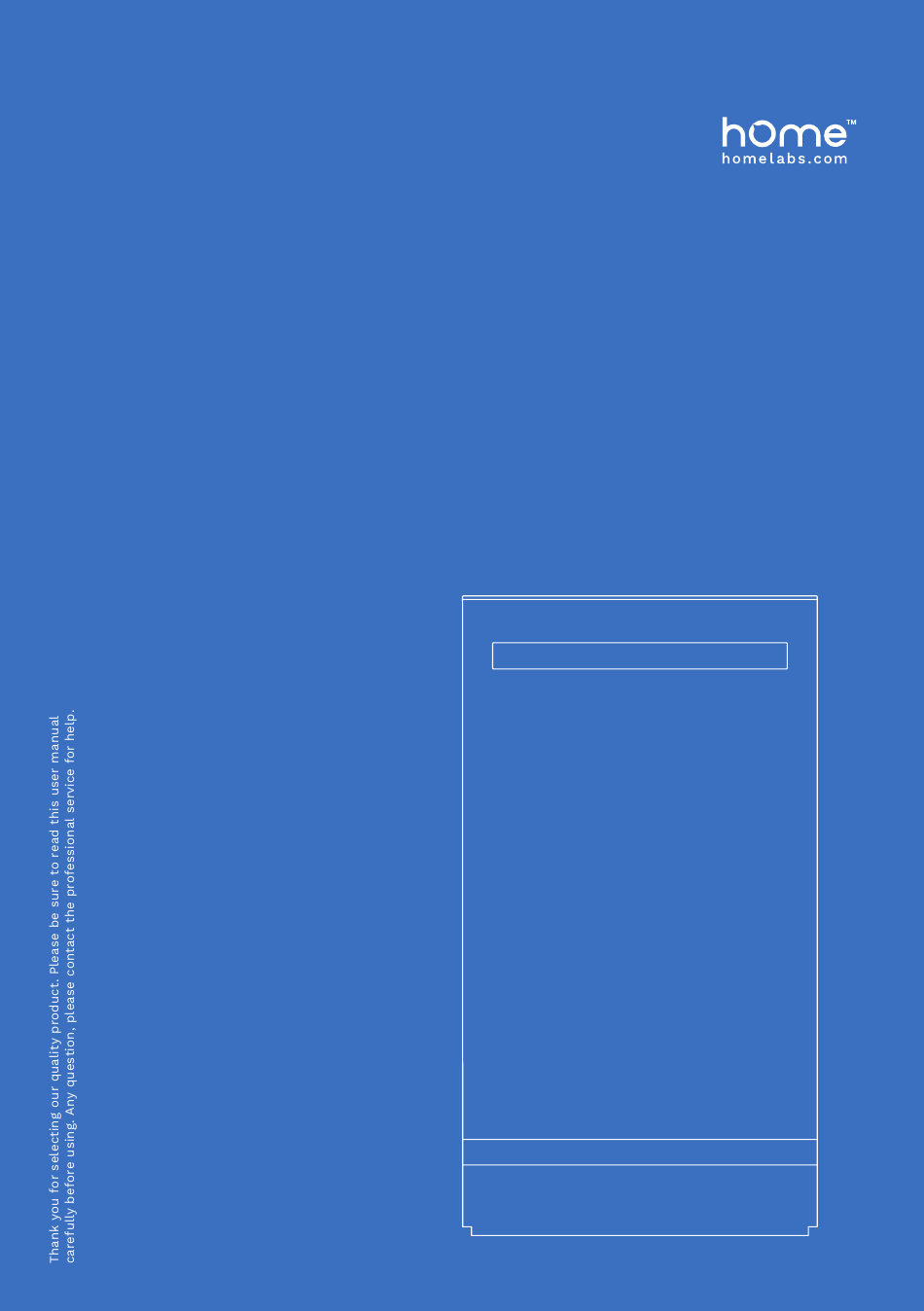

  • Page 1 18" Built In Dishwasher HME030286N...
  • Page 2 Defective product should be clearly marked or stored where it cannot be used again by mistake. Failure to retain the product may impede hOme ™ ’s ability to correct any legitimate problem ™ and may limit the extent to which hOme may provide recourse.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions Installation 8-12 Operation 13-26 Cleaning and Maintenance 27-29 Troubleshooting 30-32 Warranty Manufacturing Info Warning Contact Us...
  • Page 5 Congratulations on bringing home your new appliance! Don’t forget to register your product at homelabs.com/reg for updates, coupons, and other relevant information. Although greatly appreciated, product registration is not required to activate any warranty.

  • Page 6: Important Safety Instructions

    Important Safety Instructions WARNING • Misuse of the dishwasher can result in serious injuries or death. Do not use the dishwasher in any way not covered in this manual or for any purpose other than those explained in the following pages. •...
  • Page 7 Important Safety Instructions • When loading items to be washed: - Locate sharp items so that they are not likely to damage the door seal. - Load sharp knives with the handles up to reduce the risk of cut-type injuries. - Do not wash plastic items unless they are marked dishwasher-safe or the equivalent.

  • Page 8: Installation

    Installation WARNING • This product needs to be installed by a professional. If not, the warranty is voided. • Cut off the power before installing the dishwasher, or electric shock may occur. 1. Dishwasher place requirement • The back of dishwasher should face to the wall. •...
  • Page 9 Installation 3. Fix the ornamental plate The plug with T shape 2-0.16 × 1wooden screw 0.16×1.7wooden screw 0.16×1.7 wooden screw 2-0.16×1 wooden screw Remove 2-ST 0.16×0.4 screw remove 2-ST0.16×0.4 screw ST 0.16×1.7wooden screw ST 0.16×1.7 wooden screw Dishwasher door The plug with T shape ornamental plate (4.4~11Ib) ornamental plate (4.4~11Ib) 4.
  • Page 10 Installation 5. Connect the water inlet hose (for cold water) Connect the elbow connector to the dishwasher and the other end to the water supply, make sure it is fastened tightly in place. Do not over-tight. If the water hoses are new or have not been used for an extended period of time, let the water run to make sure the water is clear and free of impurities, otherwise the water inlet may get blocked and the appliance could be damaged.
  • Page 11 Installation 7. Level adjustment Allowable slope under entire dishwasher is 2 degree. Adjust the height by turning the feet to make sure the dishwasher is level. Adjust the back feet Adjust the front feet 8. Install the skirting board control panel flexible panel 0.2~1 in ornamental plate ornamental plate...
  • Page 12 Installation 9. Fixation of dishwasher × ST0.16 1. Turn the ST0.16×1 screws to fix the dishwasher to the cabinet. hole plug 2. Plug the four hole plugs into the holes in the sketch map.

  • Page 13: Operation

    Operation FEATURES ADDITIONAL FEATURES DESCRIPTION Time remaining indicator Indicates the remaining cycle time. 49dBA Sound Level Quiet washing. Delay start Start of a cycle can be delayed in 1-hour increments up to 24 hours. If you need to pre-rinse dishes to avoid odors, let the dishwasher do the work for you.
  • Page 14 Operation PRODUCT DIAGRAM Cup rack Cutlery basket Upper rack Lower rack Top rack spray arms Detergent dispenser Water softener Rinse aid dispenser Filters Lower rack spray arms...
  • Page 15 Operation DISHWASHER SETUP Before using your dishwasher for the first time: A. Set the water softener B. Load the salt into the water softener C. Fill the rinse aid dispenser D. Fill in the detergent A. Water Softener The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
  • Page 16 Operation B. Load the salt into the softener Always use the salt intended for use with the dishwasher. NOTE: If your model has no water softener, skip this section. WATER SOFTENER The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.
  • Page 17 Operation NOTE: 1. The salt container must be refilled when the salt warning indicator lights up. 2. When the salt is not enough, the indicator light may not be off before the salt is fully dissolved. 3. If there is no salt warning light on the control panel (for some models), you can infer when to load the salt into the softener by the cycles that the dishwasher had run.
  • Page 18 Operation How to operate the rinse aid dispenser 1. To open the rinse aid dispenser, turn the cap to the “Open” (left) arrow and lift it out. 2. The volume of the rinse aid container is 140ml. Pour the rinse aid into the dispenser, be careful not to overfill.
  • Page 19 Operation Use the detergent dispenser The detergent dispenser must be refilled before the start of each washing cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent.
  • Page 20 Operation Detergent type There are 3 sorts of detergents: 1. Detergents with phosphate and with chlorine. 2. Detergents with phosphate and without chlorine. 3. Detergents without phosphate and without chloride. • Normally new pulverized detergent is without phosphate. The water softener function of phosphate is not given.
  • Page 21 Operation LOAD THE DISHWASHER For best performance of the dishwasher, follow below loading guidelines. Features and appearance of baskets and silverware baskets may vary from your model. Attention before or after Loading the dishwasher baskets Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in the following way: 1.
  • Page 22 Operation Adjust the upper basket If required, the height of the upper basket can be adjusted in order to create more space for large utensils either in the upper basket or in the lower basket. The upper basket can be adjusted for height by putting wheels of different height into the rails.
  • Page 23 Operation *Upper and lower basket folding racks (optional) Lower Basket Folding racks consisting of two parts are located on the upper and lower basket of your machine, and they are designed to let you place big items easier such as pots and pans etc. If requested, each part can be folded separately, or all of them can be folded and larger space can be obtained.
  • Page 24 Operation Load cutlery and dishes Before loading the dishes, you should remove large left-over and soften remnants of burnt food in pans. When Loading the dishes and cutlery, please note: • Dishes and cutlery must not impede the rotation of the spray arms. •...
  • Page 25 Operation DISHWASHER CYCLES AND OPTIONS Wash cycles • Heavy: Best for cleaning items with baked-on food or grease. These dishes would normally require soaking. • Normal: This cycle is recommended to completely wash and dry a full load of normally soiled dishes. •...
  • Page 26 Operation CONTROL PANEL ON/OFF Water Heavy Light Supply DELAY START/PAUSE PROGRAM Add Rinse Aid Wash Normal Express Add Salt Delicate Rinse NOTE: Buttons are sensitive and should be touched gently. Avoid any grease or food particles resting on the buttons as this could activate the dishwasher. Wiping and cleaning can also activate the dishwasher. For best results, use bare and clean hands when touching the buttons.

  • Page 27: Cleaning And Maintenance

    Cleaning and Maintenance CHANGE THE PROGRAM • The ongoing cycle can only be modified if the dispenser cover is not open (the door can be opened for viewing). Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.
  • Page 28 Cleaning and Maintenance CLEAN THE FILTER SYSTEM For best performance and results, the filter system must be cleaned. Remove the large food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. •...
  • Page 29 Cleaning and Maintenance CARING FOR THE DISHWASHER • Use a lightly dampened cloth to clean the control panel. Dry it thoroughly. • To clean the exterior, use a good appliance polish wax. Do not use sharp objects, scouring pads or harsh cleaners to wash any parts of the dishwasher.

  • Page 30: Troubleshooting

    Troubleshooting ERROR CODES When some malfunctions happen, the appliance will display error codes to warn you. CODE MEANING POSSIBLE CAUSES Door open The door is opened when the dishwasher is operating. Water inlet Water inlet malfunction Water drainage Water drainage malfunction Temperature sensor Temperature sensor malfunction Overflow/leakage...
  • Page 31 Troubleshooting PROBLEM POSSIBLE CAUSES SOLUTIONS Improper detergent Use only the specific dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the Suds in the dishwasher, then start the “pre-rinse”...
  • Page 32 Troubleshooting PROBLEM POSSIBLE CAUSES SOLUTIONS Clogged detergent residue Clean the detergent from the catch. Detergent is blocking the catch. dispenser lid cannot be closed properly. Detergent Dishes block detergent Re-load the dishes properly. left in Cups dispenser cups Normal phenomenon There is some steam coming through the vent by the door Steam latch during drying and water draining.

  • Page 33: Warranty

    (“warranty period”) on all of our products purchased new and unused from hOme Technologies, LLC or an authorized reseller, with an original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period.
  • Page 36 For household 1-800-898-3002 © 2019 hOmeLabs LLC help@homelabs.com 37 East 18 Street, 7th Floor Use Only homelabs.com/help New York, NY 10003...
