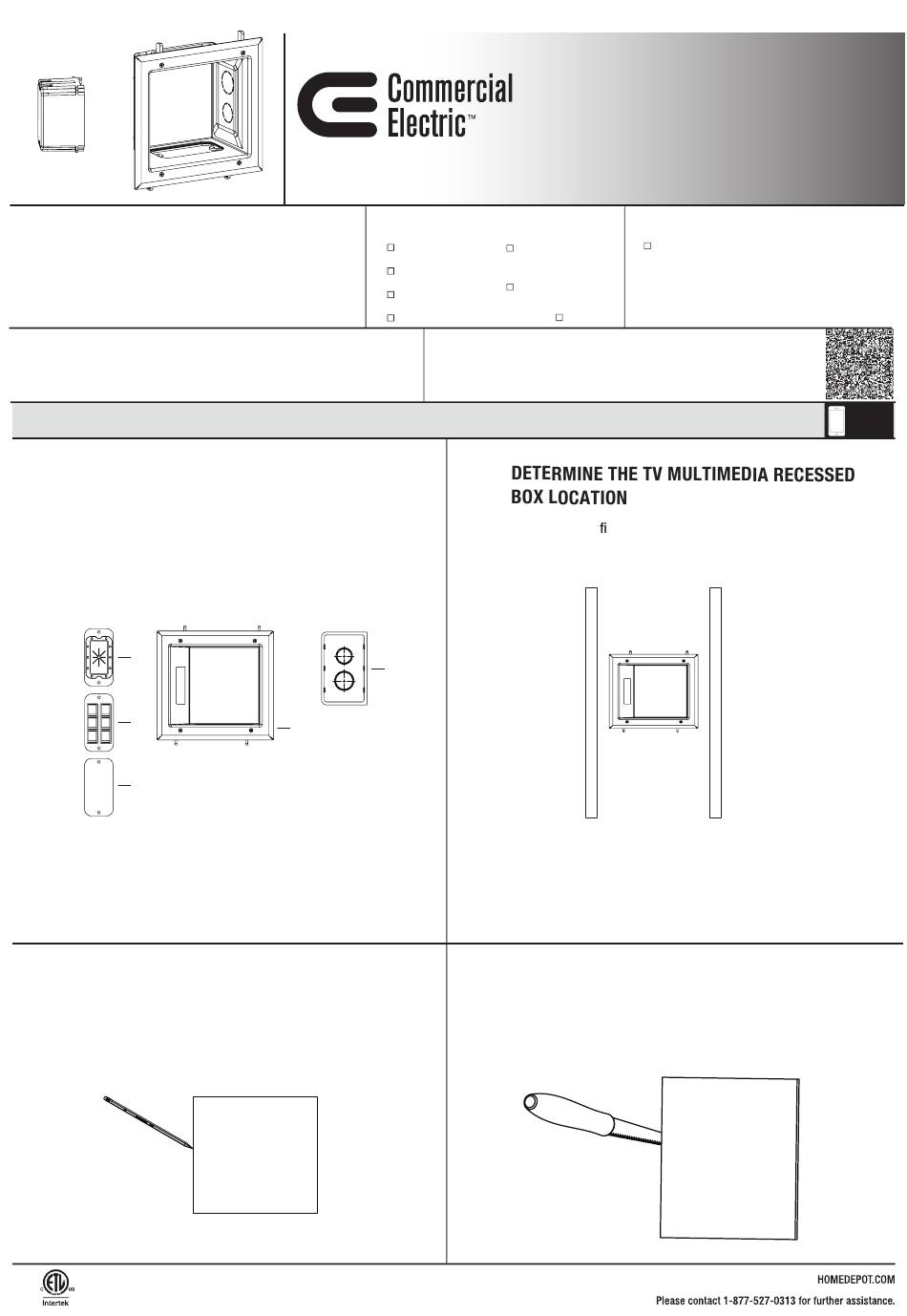

Commercial Electric 5053-WH Installation Manual

PACKAGE CONTENTS

A - Recessed Media Box E - Blank accessory plate
B - Snap-in cover plate with conduit/pipe knockouts
C - Flexible pass-through accessory plate
D - 6-port keystone accessory plate
CAUTION Before installing this product, be sure the
electrical power is off at the circuit breaker or
remove fuse(s).
Installation
1

ATTACHING THE DESIRED ACCESSORY PLATES

□
Attach the desired accessory plates (included) inside the box
with the included screws. Use #2 stubby Phillips screwdriver to
install these plates. Note: If you will be running tubing to this
box, choose the cutout size that best suits your needs and cut
the snap-in plate to make the pass-through.
C
D
E
3

PREPARING THE WALL FOR INSTALLATION

□
Using the template supplied, trace the opening for the plate on the
wall. Remember, the plate is designed to be mounted centered
between the studs. Using a drywall saw, cut a hole in the drywall
the size of the template.
TIP: Loop a piece of tape with the sticky side outward to form a circle and
apply it to the back of the template to secure it to the wall.
ETL LISTED
CONFORMS TO
UL STD 514C

TOOLS NEEDED

B
A
TEMPLATE
Drywall saw
#2 Stubby Phillips
Screwdriver
Stud Finder
Pencil
Level
#2 Phillips screwdriver Tape
For video information visit homedepot.com and search
SKU 1001863174 or model number 5053-WH
2
□
Use the stud nder to center between the wall framing studs.
□
Be sure to frame your plate both vertically and horizontally.
*This product is designed for standard 2x4 framed walls. If your wall does
not have the standard 3.5" spacing between the drywall you will need to
use a kit that mounts on the front of the wall.
4

CUT DRYWALL FOR PLATE

□
With your template secured to the wall with the tape, using a drywall saw,
cut a hole in the drywall the size of the template.
Item #1001863174
Model #5053-WH
Installation Guide

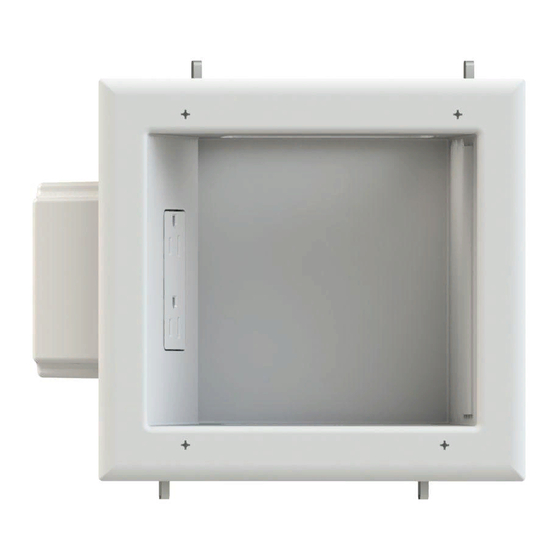

TV Multimedia Recessed Box
TOOLS NEEDED (Not included)
15 amp electrical receptacle
