Summary of Contents for Mission Communications MyDr 150

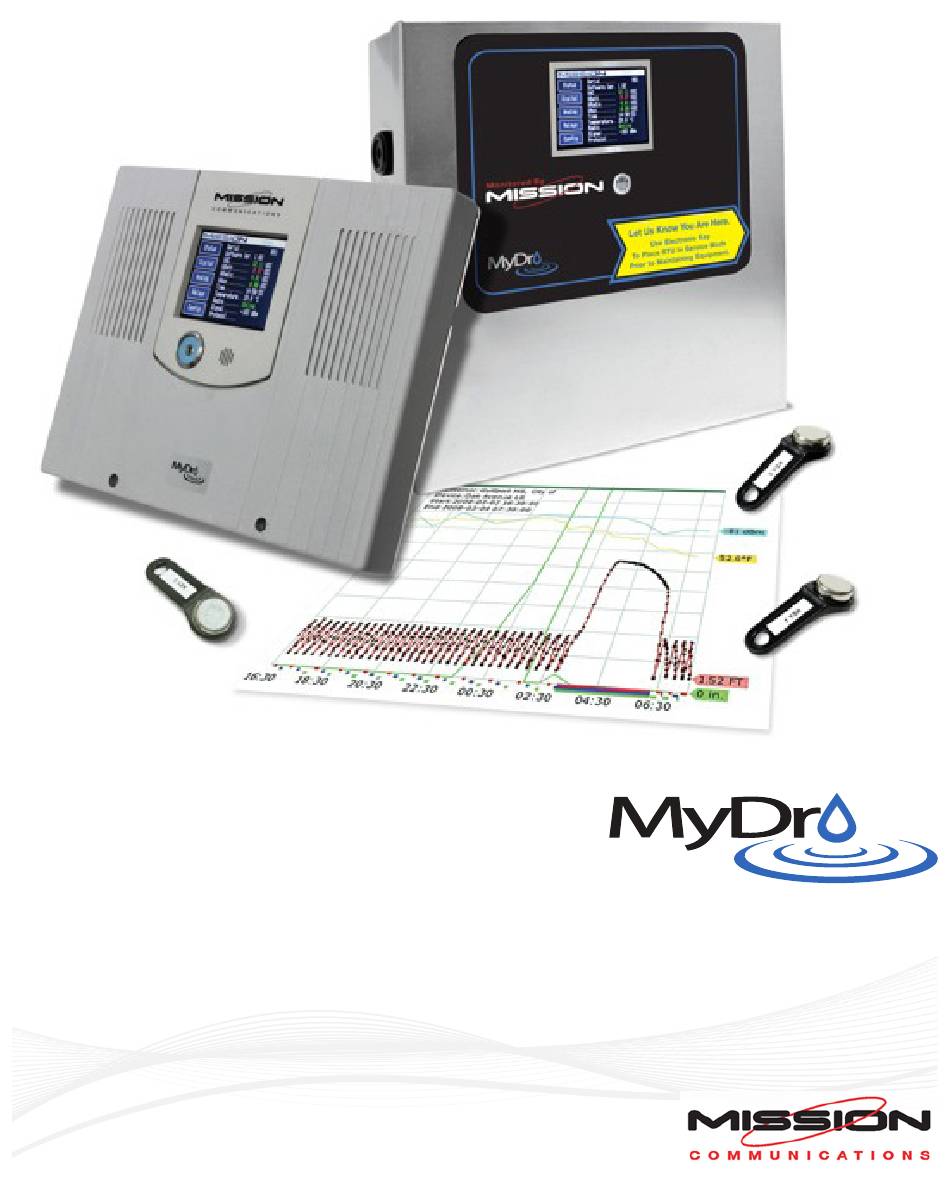

  • Page 1 150/850 Installation Manual PMS 660...
  • Page 2 Welcome, Thank you for choosing Mission Communications for your monitoring and alarm needs! Mission is committed to providing the highest quality in SCADA solutions. All of our products go through a strict testing regimen before leaving our facility to ensure a seamless “out of the box”...

  • Page 3: Table Of Contents

    Contents Chapter 1: Overview ..................M150/M850 at a Glance Enclosures Hardware Included with RTUs Recommended Tools Materials Chapter 2: Site Survey & Connectivity Test ..........Chapter 3: Antenna Installation ..............Antenna Best Practices Wiring Best Practices Chapter 4: RTU Installation and Wiring ............11 Chapter 5: RTU Startup ..................16 Chapter 6: Test the Installation ..............18 Chapter 7: Site Commissioning ..............20...

  • Page 5: Chapter 1: Overview

    Chapter 1: Overview M150/M850 at a Glance Each RTU is packaged with everything needed for a standard installation. Enclosures NEMA 1—indoor mounting NEMA 4—outdoor mounting FlatPak—control panel inner door mounting FlatPak Retrofit—(Convert M110 or M800 to MyDro) Hardware Included with RTUs: RTU (NEMA 1, NEMA 4, or FlatPak enclosure) RTU Installation Packet (RTU Form,...

  • Page 6: Recommended Tools

    Recommended Tools (not included) Mechanical Electrical Drill motor Voltmeter/multimeter Step drill or 3/4” hole saw Wire cutters Hack/reciprocating saw Wire strippers Metal cutting blades Pliers 5/16” nut driver or tip Phillips-head screwdriver or tip Ladder (for antenna mounting if necessary) Materials 18 or 22 gauge wire, 2, 4, or 8 conductor stranded and shielded 12–14 gauge green wire (follow NEC standards) for grounding the RTU...

  • Page 7: Chapter 2: Site Survey & Connectivity Test

    Chapter 2: Site Survey & Connectivity Test Prior to installation, please complete and submit the RTU Installation Form via fax ((770) 685-7913) or email (setupforms@123mc.com) so Mission can set up the new unit(s) on your web portal. New customers must also complete and submit both forms within the New Customer Packet.
  • Page 8 Figure 1: Main Printed Circuit Board Wired for Site Survey...

  • Page 9: Chapter 3: Antenna Installation

    Chapter 3: Antenna Installation Overview The antenna should be mounted outdoors and above other objects. By optimizing the placement of the antenna, you increase the chances that the radio can communicate with more than one cell tower. The coaxial cable should reach the Mission RTU radio connection with no severe routing of the coaxial cable.

  • Page 10: Antenna Best Practices

    Antenna Best Practices Don’t Mount the antenna outside as high as Mount the antenna underground, in a dry well, possible, preferably above the roof or other or inside a canned lift station. objects. Mount the antenna above all metal surfaces Mount the antenna horizontally or bend the close to the installation.

  • Page 11: Chapter 4: Rtu Installation And Wiring

    Chapter 4: RTU Installation and Wiring Locate the RTU as close as Enclosure Options possible to the control cabinet while considering the antenna cable NEMA 4 length. Mount outdoors on unistrut or a wall. Allow Warning: Turn off station clearance for hinge (left) power.
  • Page 12 5. Terminate digital inputs. Refer to the wiring diagram on the M150/M850 cover/door and RTU Installation Form in the packing box. Record input names on the setup form and the diagram. The default digital input (DX) connections are as follows: D1—pump 1 (M150 runtime accumulator, M850 status and runtime accumulator) D2—pump 2 (M150 runtime accumulator, M850 status and runtime accumulator) (M150)
  • Page 13 On M850 RTUs, D1–D8 (on the main board) can be configured as pump runtime, pump runtime with alarm, or alarm inputs. As an option, the system can report multiple pump runtimes on M850 RTUs on D8 Figure 2: Digital Inputs—Load Sensor, Supervision, and Surge Suppression Wire fault supervision: End-of-line (EOL) resistors are optional with the MyDro.
  • Page 14 6. Terminate analog inputs. Two Figure 3: isolated analog inputs are available Analog Input Wiring on the main board (refer to figure 3). These inputs can accept a 4–20 mA or 0–5 V signal. Position analog channel signal selector* to the left for a 4–20 mA signal and to the right for a 0–5 V signal.
  • Page 15 Warning: If power to output relays is supplied by Mission aux power port it is software configurable as 12 or 24 VDC. Specify coil voltage of interposing relays appropriately. Note: Many items should be considered with remote control applications. Refer to our Best Practices for Remote Control Applications document. Wire the auxiliary output to common on the output relay.

  • Page 16: Chapter 5: Rtu Startup

    Chapter 5: RTU Startup Figure 5: 1. Power the Mission RTU with the 12 VDC battery only. Connect Battery Wiring the black lead first, then the red lead. The LCD will illuminate start up screen. Once the radio sequence is complete, you will hear three beeps from the buzzer.
  • Page 17 Figure 6: Main Board Connections...

  • Page 18: Chapter 6: Test The Installation

    Chapter 6: Test the Installation It is imperative that alarm points are tested and that alarm notifications are received so they can be acknowledged by the customer or end-user once the unit is put into production. This includes phone numbers, text messages, email addresses, fax numbers, and pager numbers.
  • Page 19 6. Test the pump runtime inputs. Turn on pump 1. Mission D1 should respond on the touch screen. If not, check the wiring and/or end-of-line resistors. Repeat step for pump 2 and 3, if used. 7. Test the high level alarm. Open the wet well. Pull the high-level float up and put it into alarm condition by tipping it.

  • Page 20: Chapter 7: Site Commissioning

    Chapter 7: Site Commissioning Enable the RTU for alarm call-outs by calling technical support. Setup Forms Ensure setup forms have been submitted to Mission technical support. Verify proper labeling on your web portal and the wiring diagram on the Mission RTU. Users with administrator credentials have the ability to make changes to the web portal, if necessary.

  • Page 21: Appendix A: Terminology

    Appendix A: Terminology Alarm Inputs A digital or analog input that is configured to dispatch a notification when the alarm state or threshold is reached. Analog Inputs Two analog inputs on M150 and M850 series RTUs can be used to report pressure, level, chlorine pH, or any other dynamic readings by way of a 4–20 mA or 0–5 V transducer.
  • Page 22 The requirement for an end-of-line resistor is software configurable for fault (requires resistor) or no fault. M150 vs. M850 Generally, the M850 is more appropriate where analog sensors are present, at master lift stations, and for remote control applications. Both RTUs provide real-time alarms. The M150 accumulates pump starts each hour whereas the M850 reports real-time pump state changes.

  • Page 23: Appendix B - Solid State Relay Wiring Diagram

    Appendix B: Output Relay Diagram...

  • Page 24: Installation Notes

    Installation Notes _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________...
  • Page 25 Installation Notes _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________...
  • Page 26 Installation Notes _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________...
  • Page 27 Installation Notes _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________...
  • Page 28 Technical Support (877) 993-1911 option 2 Sales techsupport@123mc.com, sales@123mc.com 123mc.com setupforms@123mc.com (877) 993-1911 option 4 M1M8IM-0618...

This manual is also suitable for:
