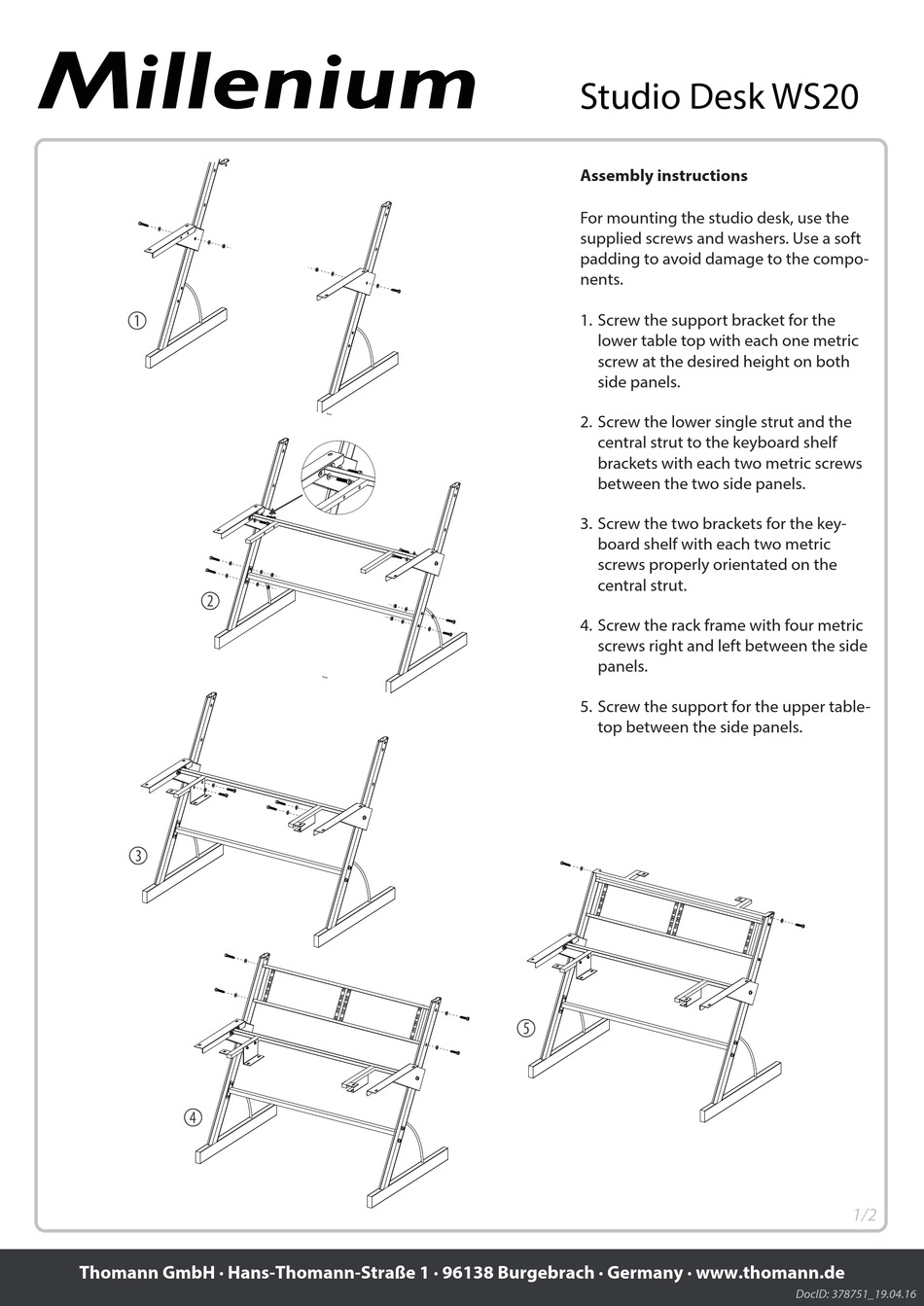

Studio Desk WS20
Assembly instructions
For mounting the studio desk, use the
supplied screws and washers. Use a soft
padding to avoid damage to the compo-
nents.
1. Screw the support bracket for the
lower table top with each one metric
screw at the desired height on both
side panels.
2. Screw the lower single strut and the
central strut to the keyboard shelf
brackets with each two metric screws
between the two side panels.
3. Screw the two brackets for the key-
board shelf with each two metric
screws properly orientated on the
central strut.
4. Screw the rack frame with four metric
screws right and left between the side
panels.
5. Screw the support for the upper table-
top between the side panels.
&
1/2
