Fructose Dispenser
Model DI-CN-0099
Item 44645
Instruction Manual
Revised - 06/25/2021
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI-CN-0099 and is the answer not in the manual?

Questions and answers

Summary of Contents for Omcan DI-CN-0099

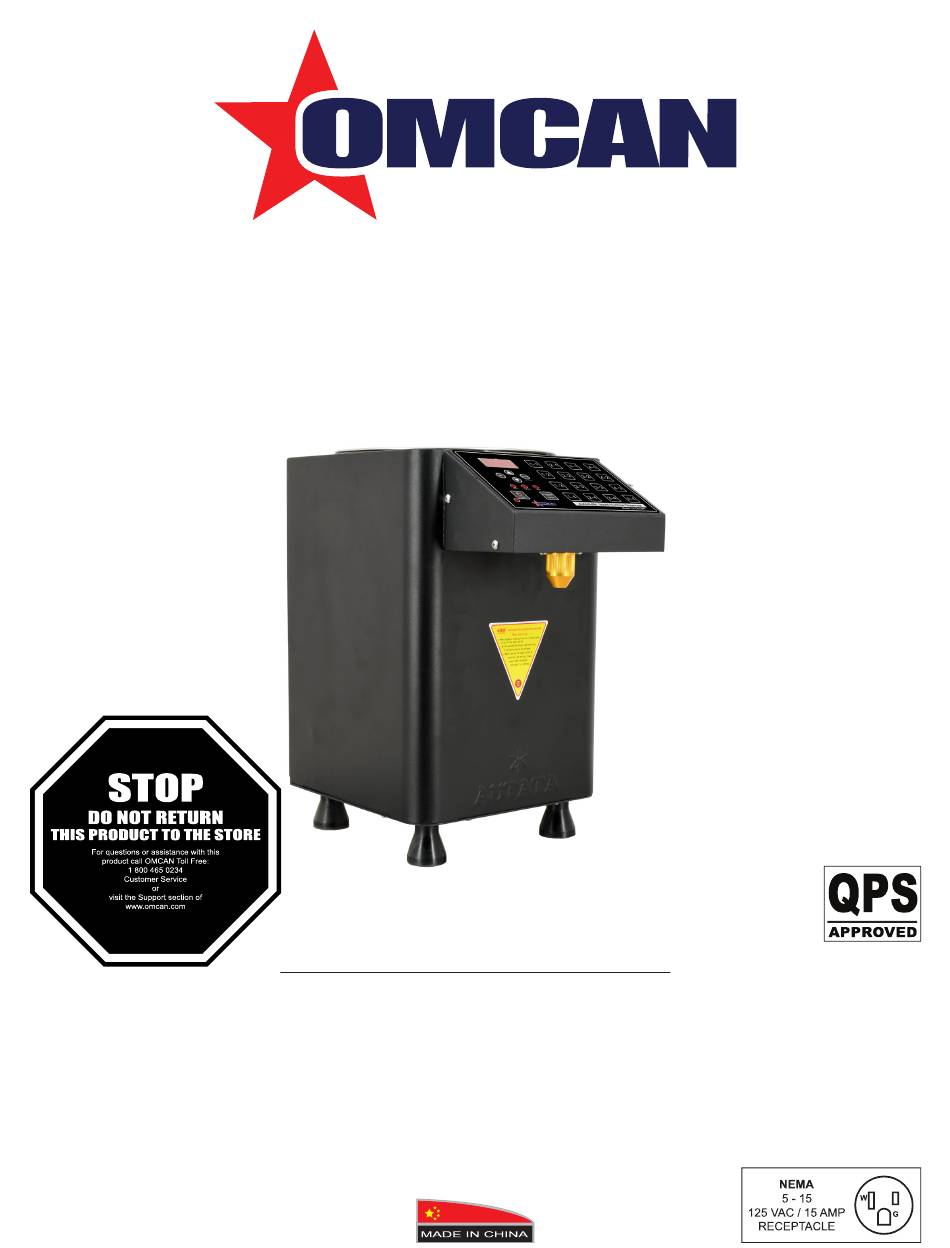

  • Page 1 Fructose Dispenser Model DI-CN-0099 Item 44645 Instruction Manual Revised - 06/25/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
  • Page 2: Table Of Contents

    Table of Contents Model DI-CN-0099 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 5 Operation ----------------------------------------------------------------------------------------- 6 - 8 Troubleshooting ------------------------------------------------------------------------------------- 8 Parts Breakdown ----------------------------------------------------------------------------- 9 - 10 Electrical Schematics...
  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5: Technical Specifications

    Safety and Warranty Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
  • Page 6: Operation

    Operation DISPLAY PANEL Number Name Function When the temperature of the liquid in bucket is below 25°C, the heating Heating Light light will be on. The machine will begin to heat. Feed Light When the liquid is below the caution line, the feed light will be on and beep. Filling Light While the liquid output operation is going, the filling light is on.
  • Page 7 Operation 4. Measurement type. - By setting the “FP” value to choose between weight (g) or volume (cc). 5. Sugar outlet auxiliary heating function. - Turn on the sugar outlet “heating switch” to heat the sugar outlet. This operation can avoid clogging of the outlet if the temperature is too cold or the sugar is viscid.
  • Page 8: Troubleshooting

    Operation OUTPUT PRECISION SETTING (FP--) Calibration is necessary before the first time operation or when not in use for extended periods of time. Please set the following steps to set “FP--”: Press the setting button, the LED will display “FL--”. Step 1 Press the up or down keys to turn to “FP--”.
  • Page 9: Parts Breakdown

    Parts Breakdown Model DI-CN-0099 44645...
  • Page 10 Parts Breakdown Model DI-CN-0099 44645 Item No. Description Position Item No. Description Position Item No. Description Position AG576 Outside Panel 16 for 44645 AG580 Motor for 44645 AG584 Output Port Assembly for 44645 AG577 Outside Panel 24 for 44645 AG581...
