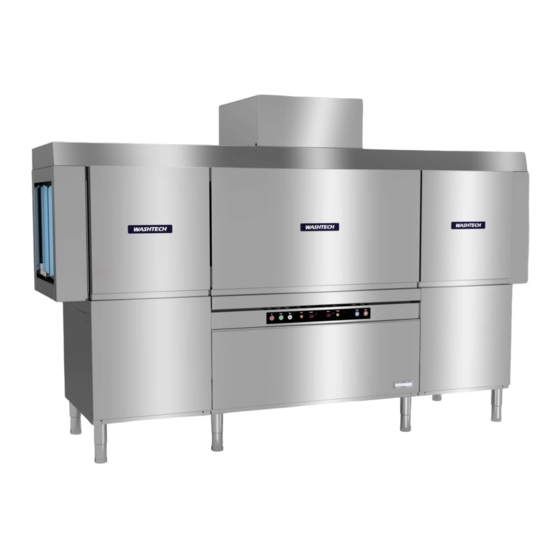

Summary of Contents for Starline CDe240

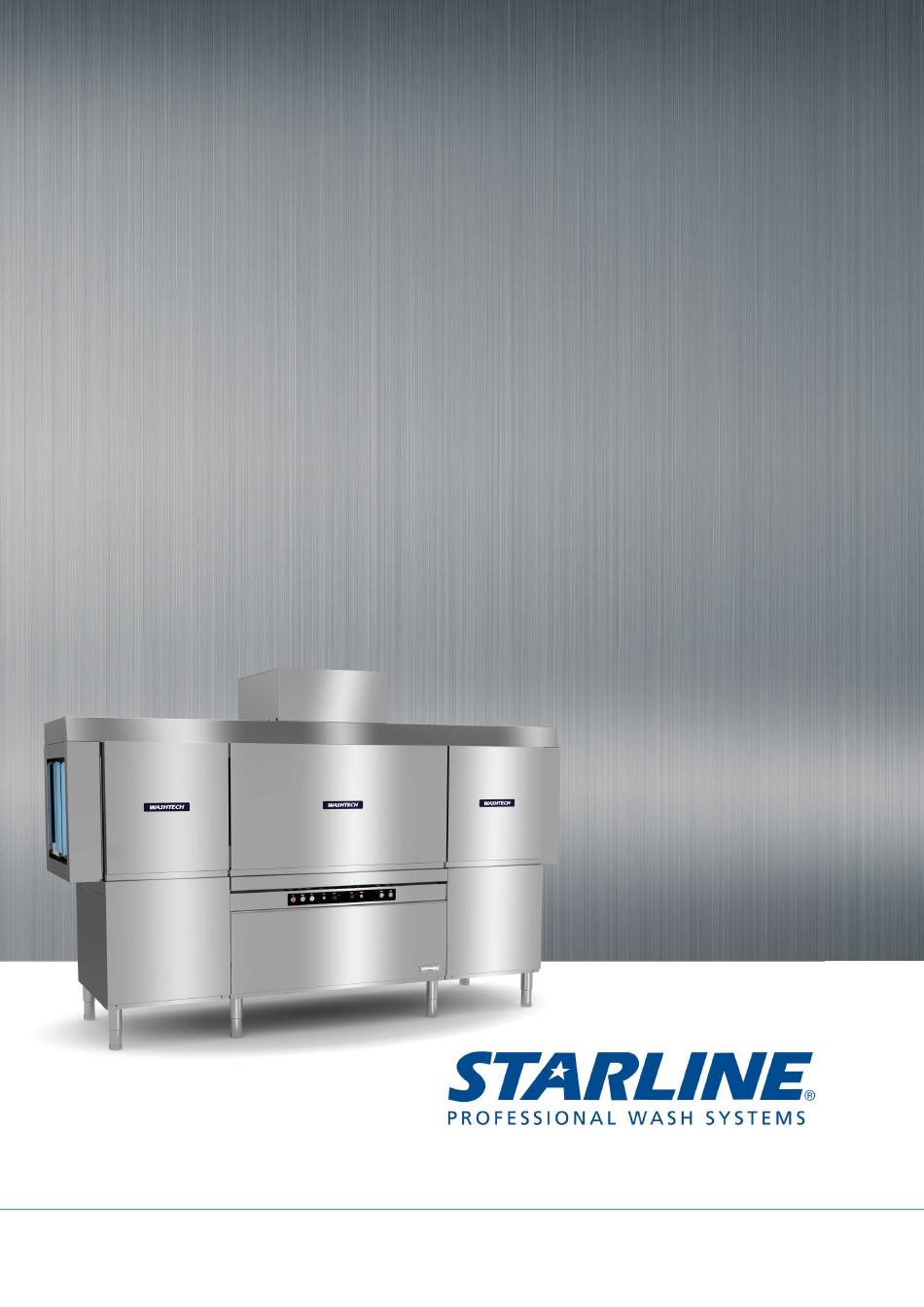

- Page 1 CDe240 RACK CONVEYOR OPERATOR MANUAL...
- Page 2 Document subject to change without prior notice. Information supplied in this manual is copyright. No part of this work may be reproduced or copied in any form or by any means, electronic or mechanical without the express permission of Washtech. 2/19/2020 Starline CDe240 Operator Manual...
-
Page 3: Table Of Contents
9. Installation Troubleshooting 10. Operator Use Guide 11. Operator Care – Wash Zone 12. Operator Care – Rinse Zone 13. Operator Care - Curtains 14. Operator Troubleshooting 15. AVB Connections 16. Schematic Diagram 17. Accessories 2/19/2020 Starline CDe240 Operator Manual... -
Page 4: Warning
Installation and servicing must be carried out by a suitably qualified person in compliance with all local codes and standards including AS/NZS 3500.1. 2/19/2020 Starline CDe240 Operator Manual... -
Page 5: Installation Diagram
Installation Diagram CDe240 Installation • Part #: CDe240R Installation • Date: 16/02/2020 • Version: 2/19/2020 Starline CDe240 Operator Manual... -
Page 6: Installation Instructions
• Flow rate: minimum 20 litres per minute • Pressure: between 200 and 350 kPa. NOTE: Above this range fit and approved pressure limiter. Do not use small diameter plastic supply lines. • Backflow prevention: Atmospheric Vacuum Breaker (AVB) fitted standard. 2/19/2020 Starline CDe240 Operator Manual... - Page 7 Chemical • Detergent and rinse aid pumps are not supplied with the CDe240. We recommend you consult your chemical supplier and/or a local chemical expert for their recommended detergent and Rinse Fluid injector pumps. NOTE: Commercial detergents can be hazardous – read instructions, store safely and handle with care.
-
Page 8: Installation Checklist
USE LONG CYCLE WHERE POSSIBLE DRAINING THE MACHINE DRAIN THE MACHINE DAILY SHUT-DOWN AND DAILY CLEANING CHECK WASH ELEMENTS HAVE COOLED BEFORE CLEANING WEEKLY MAINTENANCE FULL MACHINE CLEAN INCLUDING WASH/RINSE ARMS PLANNED SERVICNG IMPORTANCE OF SERVICING MACHINE REGULARLY 2/19/2020 Starline CDe240 Operator Manual... -
Page 9: Installation Troubleshooting
Machine stops and refills during the commissioning stage • Fit the curtains according to the Operator Care – curtain diagram (page 14). • Ensure the Scrap Trays are fitted in the Wash and Rinse Zones. 2/19/2020 Starline CDe240 Operator Manual... -
Page 10: Operator Use Guide
Scrape and/or rinse trays, plates & glasses in cool water Chemical Use a good quality non foaming commercial detergent and drying agent – do not use domestic detergents which will cause the wash tank to foam 2/19/2020 Starline CDe240 Operator Manual... -
Page 11: Operator Care - Wash Zone
Flush Arms (7 & 8) with water. Use a toothpick or paper clip if necessary to clear jets. • Return the Wash Pump Inlet Filter (12), the Drain Plug (11), Scrap Trays (10), Lower Wash Arms (8) and Upper Wash Arms (7) to the machine. 2/19/2020 Starline CDe240 Operator Manual... -
Page 12: Operator Care - Rinse Zone
Flush Arms (13, 14, 16, 17) with water. Use a toothpick or paper clip if necessary to clear jets. • Return the Drain Plug (19), Pump Inlet Filter (20), Scrap Trays (18), Lower Rinse Arms (16 & 17) and Upper Rinse Arms (13 & 14) to the machine. 2/19/2020 Starline CDe240 Operator Manual... -
Page 13: Operator Care - Curtains
Curtains must be placed in their correct positions to work properly. They must also be the correct way around. • Broken curtains need to be replaced promptly. Weekly Cleaning • Remove curtains from hooks Place each curtain into a dishrack and wash through the machine • 2/19/2020 Starline CDe240 Operator Manual... -
Page 14: Operator Troubleshooting
** For issues that are likely due to poor water quality (scale building up, filters being required on other kitchen equipment etc.), we recommend you consult a local water specialist prior to calling in a dishwasher technician. IF PROBLEMS PERSIST CONTACT STARLINE SERVICE ON 0800 STARLINE 2/19/2020 Starline CDe240 Operator Manual... -
Page 15: Avb Connections
These AVBs and associated systems within the CDe180 have been tested and confirmed as compliant with latest WMTS 101:2016 – Appliances (low hazard rating). No additional backflow prevention devices are required to be installed with Starline dishwashers. Purpose of each AVB AVB 1 Water Source: Hot Water Supply. -
Page 16: Schematic Diagram
Schematic Diagram CDe240 Schematic Diagram • Part #: 250326 • Date: 14-02-2020 • Version: 2/19/2020 Starline CDe240 Operator Manual... -
Page 17: Accessories
Accessories CDe240 Accessories • Part #: CDe240 ACW • Date: 28/08/2018 • Version: 2/19/2020 Starline CDe240 Operator Manual... - Page 18 Manufactured in New Zealand by Washtech Ltd. 414 Rosebank Road Avondale Auckland 1026 New Zealand PO Box 90548, Auckland 24HR Service 0800 Starline 09 829 0930 09 829 0935 E-mail info@washtech.co.nz www.starline.co.nz ISO9001 All Washtech products are designed and...
