4 Installation
83240802 1/2020-01 La
Installation and operating instruction
Gas burner WG20.../1-C LN

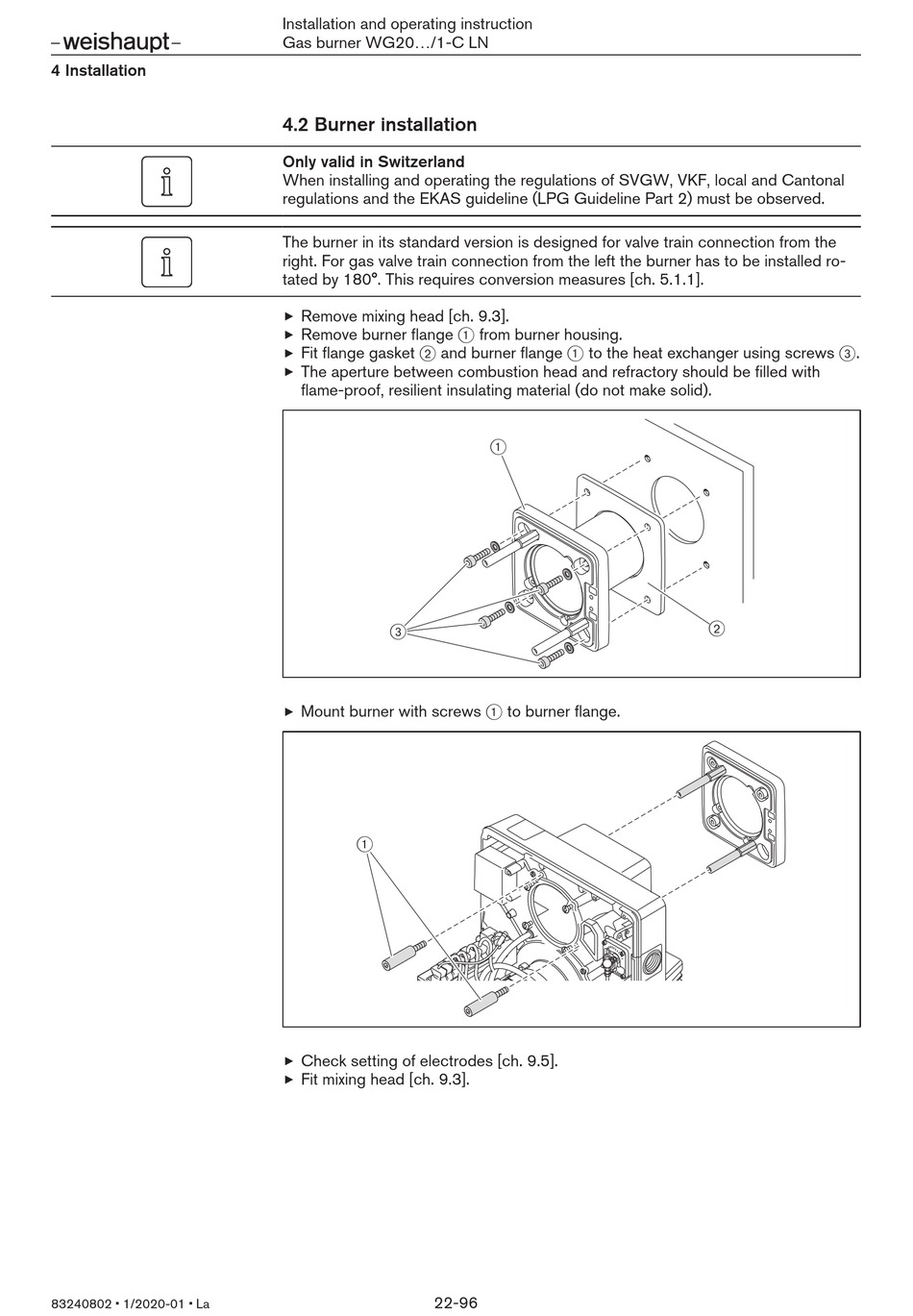

4.2 Burner installation

Only valid in Switzerland
When installing and operating the regulations of SVGW, VKF, local and Cantonal
regulations and the EKAS guideline (LPG Guideline Part 2) must be observed.
The burner in its standard version is designed for valve train connection from the
right. For gas valve train connection from the left the burner has to be installed ro-
tated by 180°. This requires conversion measures [ch. 5.1.1].
Remove mixing head [ch. 9.3].
Remove burner flange 1 from burner housing.
Fit flange gasket 2 and burner flange 1 to the heat exchanger using screws 3.
The aperture between combustion head and refractory should be filled with
flame-proof, resilient insulating material (do not make solid).
3
Mount burner with screws 1 to burner flange.
1
Check setting of electrodes [ch. 9.5].
Fit mixing head [ch. 9.3].
