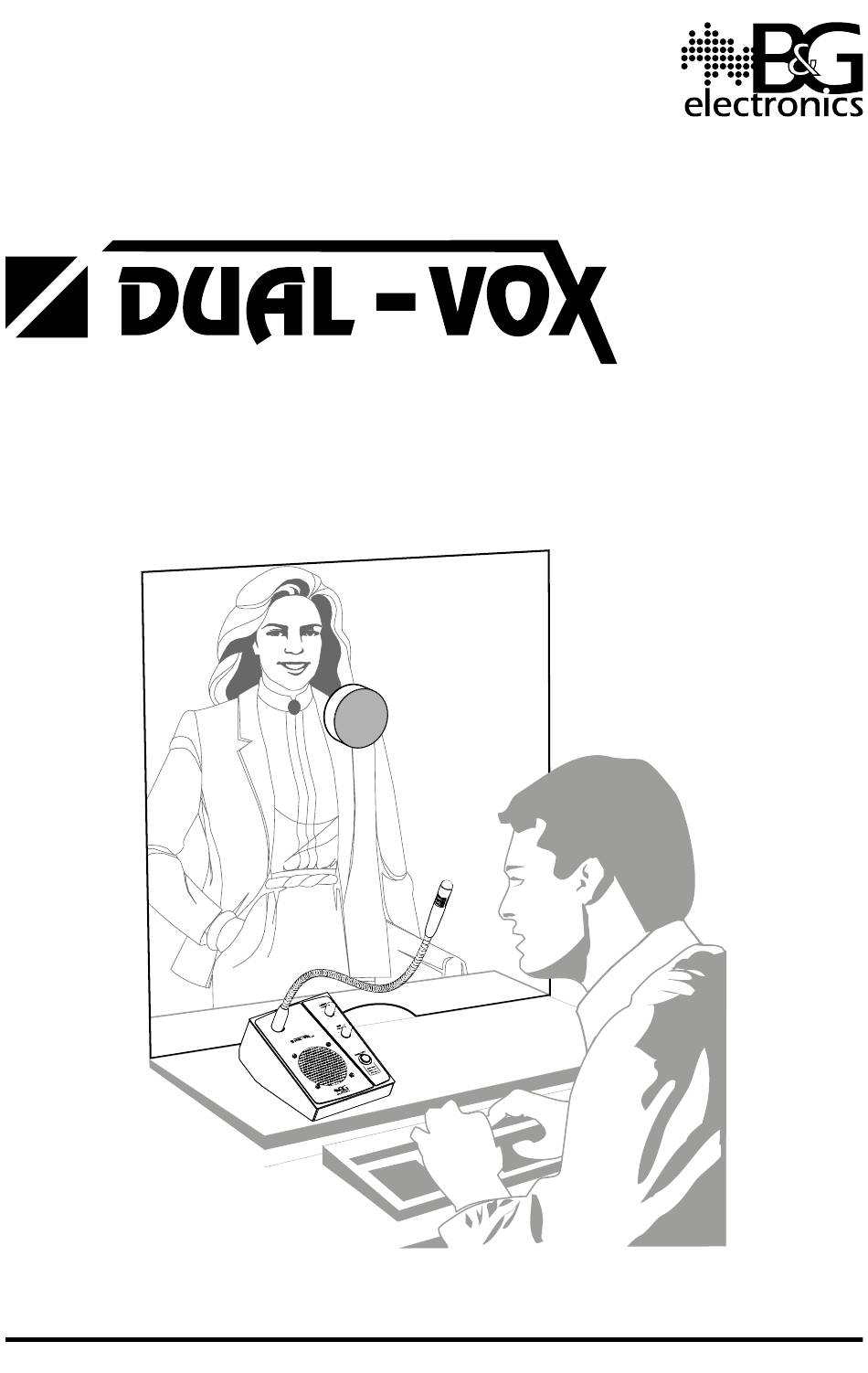

- Page 1 Models: LTC-06 LTC-06L INSTALLATION AND OPERATION MANUAL English PLEASE READE BEFORE USING THE EQUIPMENT EN 2.0...
- Page 2 COMPONENTS INSTALLATION LTC-06 (If your equipment model is LTC-06L, go to the next page) Switch ON / OFF / Siren Internal microphone with flexible neck Mounting the external speaker on glass Power adapter 1. Clean the surface where the speaker is to be mounted Output (external unit connector) with alcohol to ensure a good adhesion.
- Page 3 8. Pass the cable from the external speaker 4. Pass the cable from the external speaker to the inner side of the barrier and to the inner side of the barrier and SIREN SIREN connect the speaker to the internal unit. connect the speaker to the internal unit.
- Page 4 Automatic Mode CONFIGURATION Listen In this mode the equipment opens the interior à exterior channel Volume Adjusting the internal volume automatically when it detects voice in the internal microphone. Use the Listen knob to adjust the volume at Whenever the teller speaks to the internal microphone, the which the customer’s voice is heard on the equipment switches to the interior à exterior channel, and when inner side.
- Page 5 Talk Volume 2. Turn the external volume all the way down (Talk knob). The sensitivity is set using the slide switch on the bottom of the electronic unit. Talk • Loud background inside è Low sensitivity 3. While speaking internal Volume microphone, slowly increase •...
- Page 6 Cleaning • Clean the surface of the external module with a cloth slightly moistened with soapy water or alcohol. • Clean the controls carefully to avoid affecting the equipment calibration. • Avoid using any type of solvent to clean the product. •...
