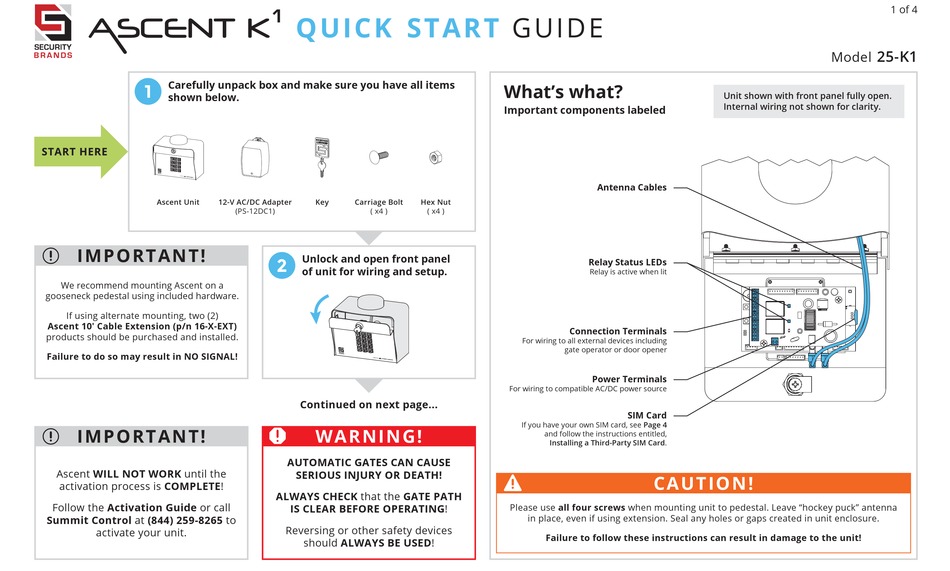

Carefully unpack box and make sure you have all items
1
shown below.
Ascent Unit
12-V AC/DC Adapter
IM P O R T ANT!
r
We recommend mounting Ascent on a
gooseneck pedestal using included hardware.
If using alternate mounting, two (2)
Ascent 10' Cable Extension (p/n 16-X-EXT)
products should be purchased and installed.
Failure to do so may result in NO SIGNAL!
IM P O R TANT!
r
Ascent WILL NOT WORK until the
activation process is COMPLETE!
Follow the Activation Guide or call
Summit Control at (844) 259-8265 to
activate your unit.
Q U IC K S TA R T
Key
Carriage Bolt
(PS-12DC1)
( x4 )
Unlock and open front panel
2
of unit for wiring and setup.
Continued on next page...
WA RN I N G !
AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH
IS CLEAR BEFORE OPERATING!
Reversing or other safety devices
should ALWAYS BE USED!
GUI DE
What's what?
Important components labeled
Antenna Cables
Hex Nut
( x4 )
Relay Status LEDs
Relay is active when lit
Connection Terminals
For wiring to all external devices including
gate operator or door opener
Power Terminals
For wiring to compatible AC/DC power source
If you have your own SIM card, see Page 4
and follow the instructions entitled,
Installing a Third-Party SIM Card.
Please use all four screws when mounting unit to pedestal. Leave "hockey puck" antenna
in place, even if using extension. Seal any holes or gaps created in unit enclosure.
Failure to follow these instructions can result in damage to the unit!
Unit shown with front panel fully open.
Internal wiring not shown for clarity.
SIM Card
C AU T IO N!
1 of 4
25-K1
Model
Advertisement
Summary of Contents for Ascent 25-K1
- Page 1 Unlock and open front panel Relay Status LEDs of unit for wiring and setup. Relay is active when lit We recommend mounting Ascent on a gooseneck pedestal using included hardware. If using alternate mounting, two (2) Ascent 10' Cable Extension (p/n 16-X-EXT) Connection Terminals products should be purchased and installed.
- Page 2 Adding and deleting codes is done through Now follow the Activation Guide to create options, see Page 3. Summit Control and NOT from the keypad! an account and begin using Ascent. © 2018 Security Brands, Inc. All rights reserved. QSG-25K1-EN Rev. D (6/2018)
- Page 3 Ascent Connection Terminals Ascent Connection Terminals connecting. If it is above 3 V, you will need to contact Technical Support. Exceeding 3 V can damage Ascent! STATUS DIGITAL INPUTS EVENT RELAY B RELAY A...
- Page 4 Using a power source, such as solar, verify that Double check that you’ve wired from Third-Party it conforms to the following specs: positive on Ascent to positive on your Power Source power source and negative on Ascent to Input 12–24 VAC/DC negative on your power source.
