Summary of Contents for NAX 4000S

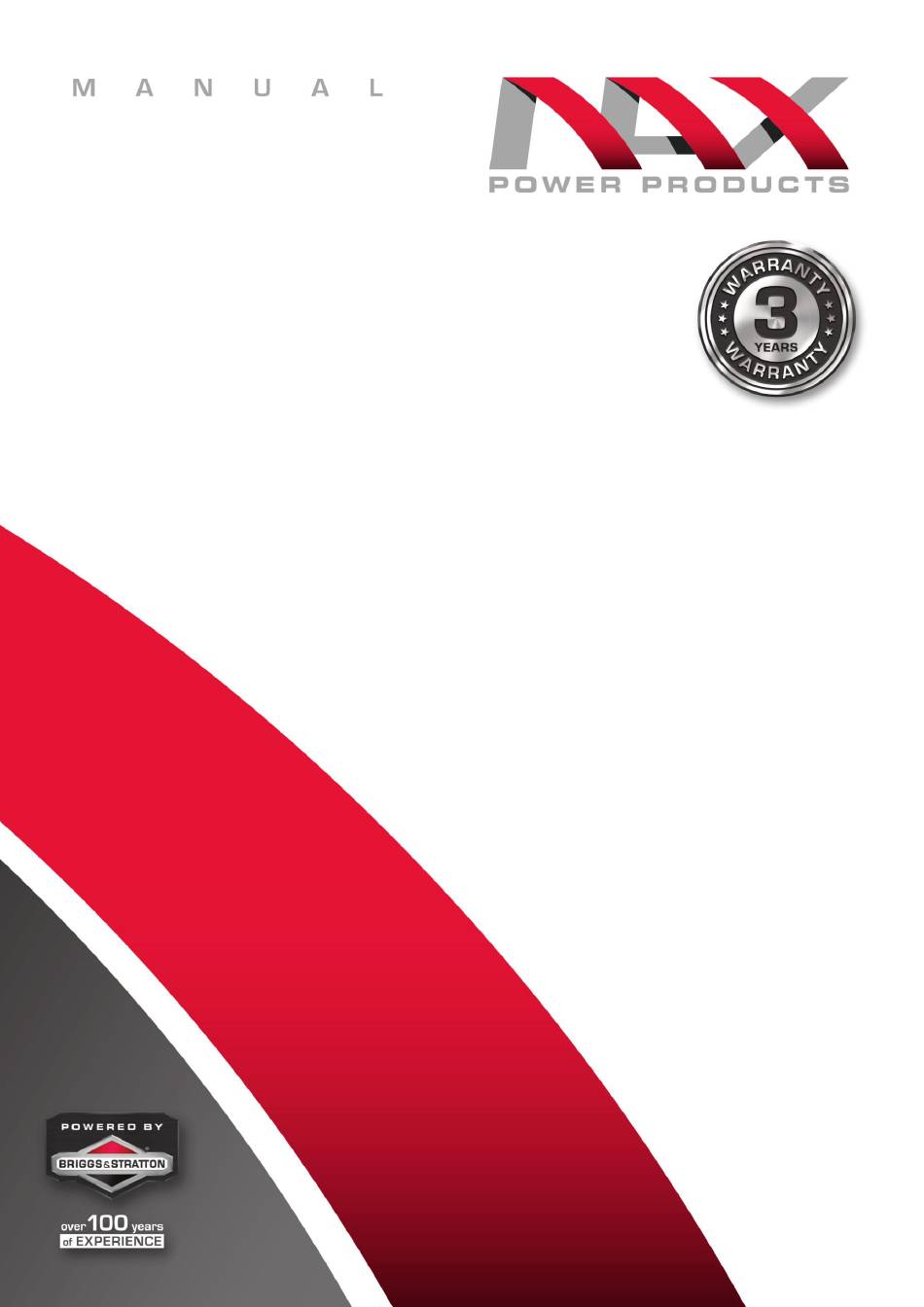

  • Page 1 NAX 4000S...

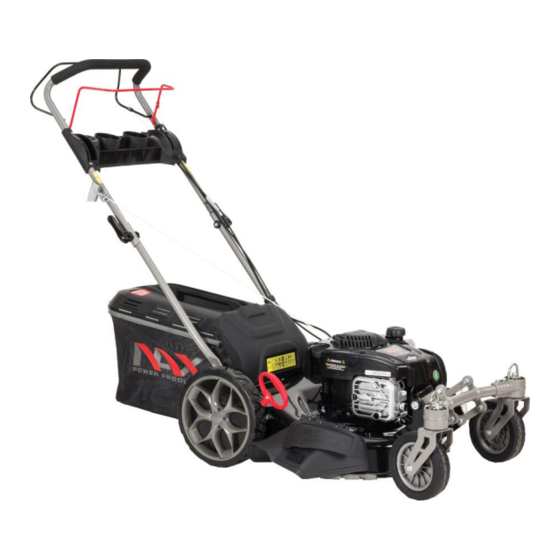

  • Page 3 PETROL LAWN MOWER WITH A DRIVE Model: NAX 4000S...
  • Page 4 CONSTRUCTION OF MOVER AND ILLUSTRATIVE DRAWINGS Fig. 1 Fig. 2...
  • Page 5 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8...
  • Page 6 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14...
  • Page 7 Fig. 15 Fig. 16 Fig. 17 Fig. 18...
  • Page 8 Fig. 19 Fig. 20 Fig. 21 Fig. 22 Fig. 23...
  • Page 9 Fig. 24 Fig. 25 Fig. 26...

  • Page 10: Table Of Contents

    Original operation manual, edition 1/2020 Translation of the original operation manual from polish language This manual should be treated as an integral part of the device. It should be stored in the place provided for it so that it is easily accessible.

  • Page 11: Technical Data

    TECHNICAL DATA Type, model NAX 4000S Engine B&S 875EXi Engine type upper-valve (OHV), four-stroke, air-cooled Fuel unleaded petrol 95 Pb Engine capacity 190 cc Machine rated power 3.23 kW / 2900 rpm Maximum torque 12.2 Nm / 2600 rpm maximum rotation speed...

  • Page 12: Safety Rules For Machines And Devices With Internal Combustion Engine

    Note: Keep hands and feet away from the knife blades. 10. Never work with the ejection flap raised. Objects picked up by the mower blade can be dangerous. 11. Check and clean the area before starting work. 12. Keep unauthorized persons away from the working mower. 13.
  • Page 13 SAFETY DURING WORKING WITH FUEL  The internal combustion engine is designed to run on gasoline or a fuel mixture (see type of fuel in the device's technical data).  Gasoline should be stored only in specially prepared containers (canisters). ...

  • Page 14: Detailed Safety Regulations

     Repair should be performed by a qualified person using only original spare parts. This will ensure further safe operation of the device. It is recommended to have any service performed by an authorized NAX service center. CAUTION! Danger of suffocation when children play with the packaging. The packaging, especially the foil bag, should be stored out of the reach of children.
  • Page 15 The recommended angle is 30 °.  It is safe to have the knife sharpened by an authorized NAX service center.  Before sharpening, the mower should be turned off, allow the engine to cool down, remove the high voltage cable from the spark plug, if necessary remove the battery and unscrew the knife.
  • Page 16 USEAGE  Mow only in daylight or in good artificial light.  Do not mow during rain, especially during a storm. Avoid mowing wet grass.  Always make sure that your legs stand firmly on the slope.  Come on, never run. Remember to keep a secure position. ...

  • Page 17: Safety And Producer's Liability

    Performing maintenance and adjustment work before or after the season can be a problem even for advanced users. To meet these needs, the NAX brand would like to offer you a paid service consisting of preparing the machine for storage and / or work. The scope of this service may include: spark plug replacement, cleaning, maintenance, oil change, filter replacement and lubrication of moving parts, knife sharpening and balancing, as well as other work related to the adjustment and maintenance of equipment.

  • Page 18: Construction Of A Lawn Mower

    components for assembly are included in the packaging. This operation manual applies to various models of mowers. The mower described may differ from your purchase. Read the passages that refer to the device model you have. CONSTRUCTION OF PETROL MOWER Illustrative drawings can be found on page 4, Fig.

  • Page 19: Operation

    The oil level must be between the lines: min. / max. Original engine oil for B&S SAE30 for lawn mowers is recommended The first oil change should be carried out after 5 hours of mower operation, after burning about two fuel tanks. The next oil changes should be carried out every 25 hours of work, but at least once a year.
  • Page 20 WORKING WITH A DRIVE To start the drive, pull it to the handle 1 (Fig. 8) drive lever 2 (Fig. 8). You can turn off the drive at any time by releasing the drive lever and operate the device like a mower without a drive. MOWING HEIGHT SETTING Attention! Before changing the cutting height, stop the engine and disconnect the spark plug cable.

  • Page 21: Maintenance

    GRINDING FUNCTION Mulching (mulching) is a care procedure involving the fragmentation of cut grass. The mulching system allows it to be left completely or partially on the soil, where it decomposes and provides nutrients. The lawn meets the mulching conditions when the grass is no more than 4 cm. The lawn on which mulching will be carried out must be mowed regularly and quite often - even every few days.
  • Page 22 11x11 mm circle for safety wedges is standard and amounts to 15.5 mm. It is recommended to use NAX cutting knives dedicated to the given mower model. Attention! The shape of the knife indicates its characteristics, depending on the shape of the knife is more suitable for: mowing with a basket, mowing with side ejection or mulching.

  • Page 23: Transportation

    Sprocket, drive carrier 28 (Fig. 24) and the gear shaft must be cleaned of grease residues and lightly grease the above elements. The recommended grease for this operation is NAX bevel gear grease. CAUTION! Lubricate the gear wheel from the inside 27 (Fig. 25). Do not lubricate the outer rim on the sprocket and the drive wheel.

  • Page 24: Problems Review And Diagnosis

    PROBLEMS REVIEW AND DIAGNOSIS INSPECTIONS Every 25 hours Prior to After 5 hours After every 100 of work or once Before storage After each use Inspections each use of operation hours of work a season check it Engine oil x (only the first replace replacement) check it...

  • Page 25: Warranty And Service

    (commercial, professional), it will lose the guarantor's liability for the purchased equipment. You can find information on the warranty and the NAX service network in the attached warranty card. Remember that the machine should be cleaned after each use. Keeping the equipment clean will ensure long-term and reliable operation.

  • Page 26: Declaration Of Conformity

    DECLARATION OF CONFORMITY            ...

  • Page 27: Notes

    NOTES:...
  • Page 29 WARRANTY Dear Sir or Madam, Thank you for purchasing our product and congratulations on your right choice. The device that you bought was designed and manufactured according to the latest technologies and represents global standards of quality and reliability, while being environmentally friendly. We remind you to carefully read the commissioning and operation procedures before using the device;...

  • Page 30: Warranty Conditions

    V-belts, bulbs, filters, spark plugs, road wheels, knives and cutting blades, knife holders, string heads, cutting chains, chain guides, steering cables, keys and overload pins. 16. NAX is not responsible for direct or indirect damages, losses or costs resulting from the use or inability to use the device for any purpose.

  • Page 31: Warranty Card

    I declare that I am official NAX Authorized Distributor. Submission of a statement inconsistent with the facts by an entity that is not an authorized NAX Distributor may result in criminal liability of the seller pursuant to art. 271 and Article 267 of the Penal Code.
