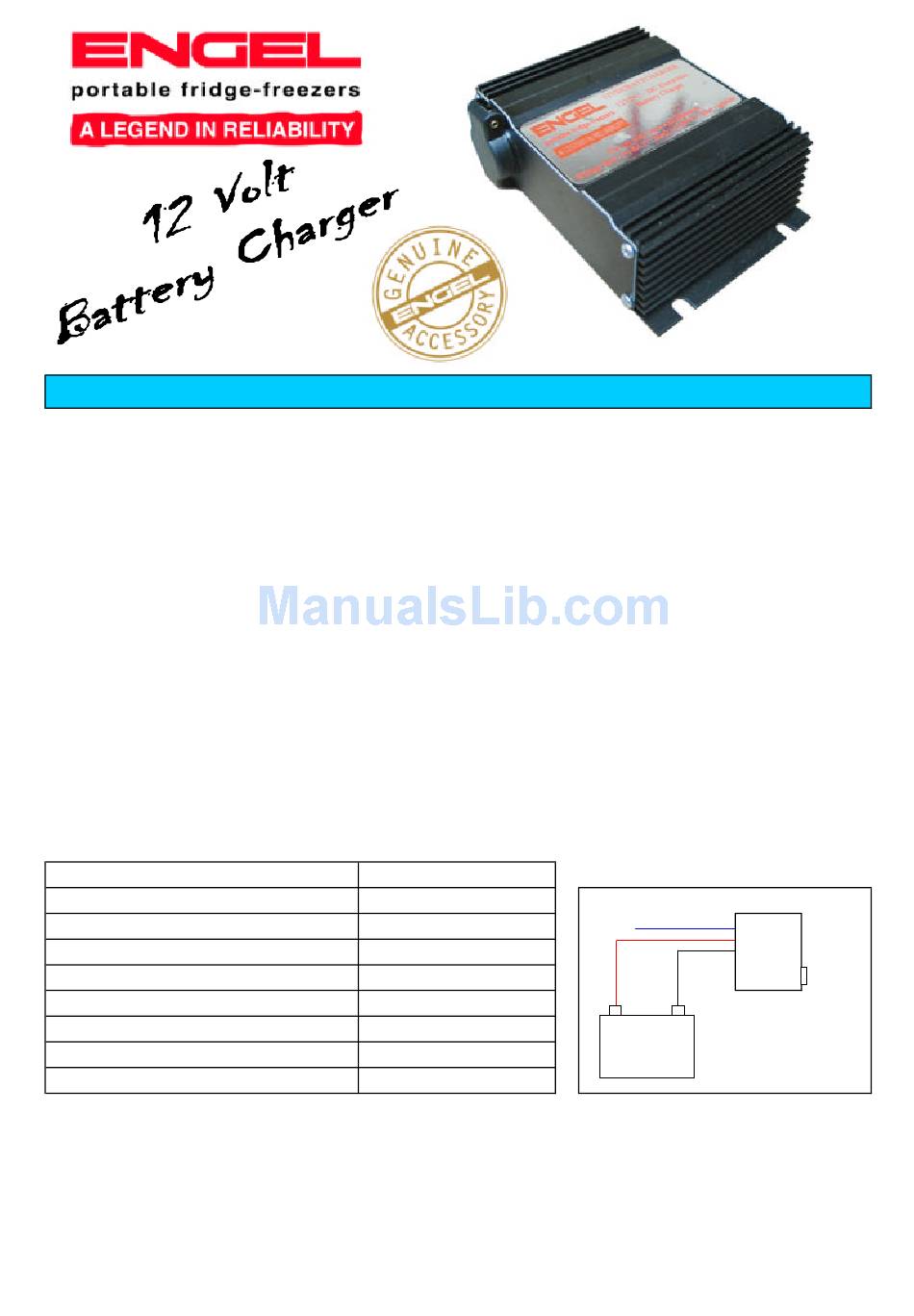

DATA SHEET / INSTALLATION INSTRUCTIONS
12 Volt DC Electronic Battery Charger
The 12VDCBattcharger is an electronic battery charger designed to charge Lead Acid Batteries from a
12 Volt DC vehicle battery. The charger uses its unique boost charge feature, stepping up to a charge
rate allowing the auxiliary battery to properly charge and with its voltage sensing feature via the ignition
circuit ensuring the main battery charge is not depleted while the vehicle is not running. The charging
time will vary depending on the size of the battery, but generally a normal day of driving is sufficient.
It is universally suited to all 12 Volt Negative Earth electrical systems in vehicles, boats, caravans and
mobile homes.
FEATURES:
Boost Charging -
Increases the voltage from the main battery allowing an auxiliary Lead Acid battery to properly
charge within an average days driving.
Reverse Polarity Protection -
Current Limiting -
Protects against the charger being overloaded.
Overload Protection
Simple Installation -
SPECIFICATIONS:
Electrical System Type:
Charging System Suitable For:
Current Limiting:
Reverse Polarity Protection:
Overload Protection:
Input Connections: 2 Fly Leads
Output Connection: 2 Pole Socket
Dimensions: L x W x H (mm)
Weight:
NOTE:
1
Ensure that all connections are made prior to activating charger.
2
Batteries that have not been charged and used for extended periods will require a full cycle charge with a
240 Volt AC Charger.
3
Ensure the correct polarity of the plug when wiring your battery pack charge lead.
For Further Information, please call the Engel Customer Service Hotline
* Due to our policy of continuous product improvements, specifications may be changed without notice
Protects the unit from reverse polarity damage from incorrect wiring.
Easy 3 wire installation.
12V Negative Earth
1300 302 653
10 Amps
10A +/- 0.5A
Yes
Yes
Yes
Yes
90 x 135 x 40
450 grams
Wiring Diagram
Ignition
10 Amp
Battery
Charger
BLUE
12 Volt
RED
Battery
BLACK Negative
12V
Ignition
Positive
