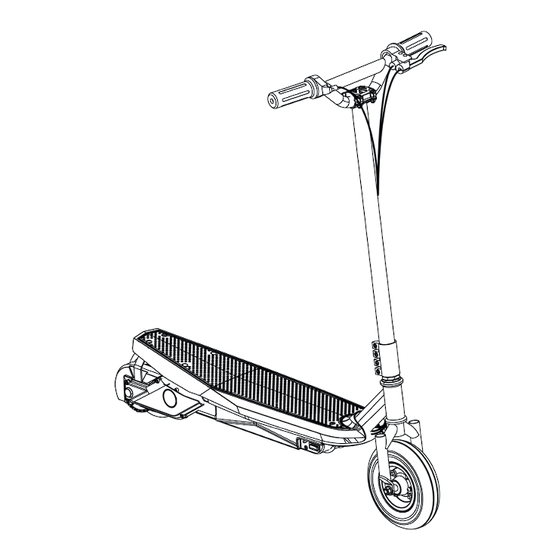

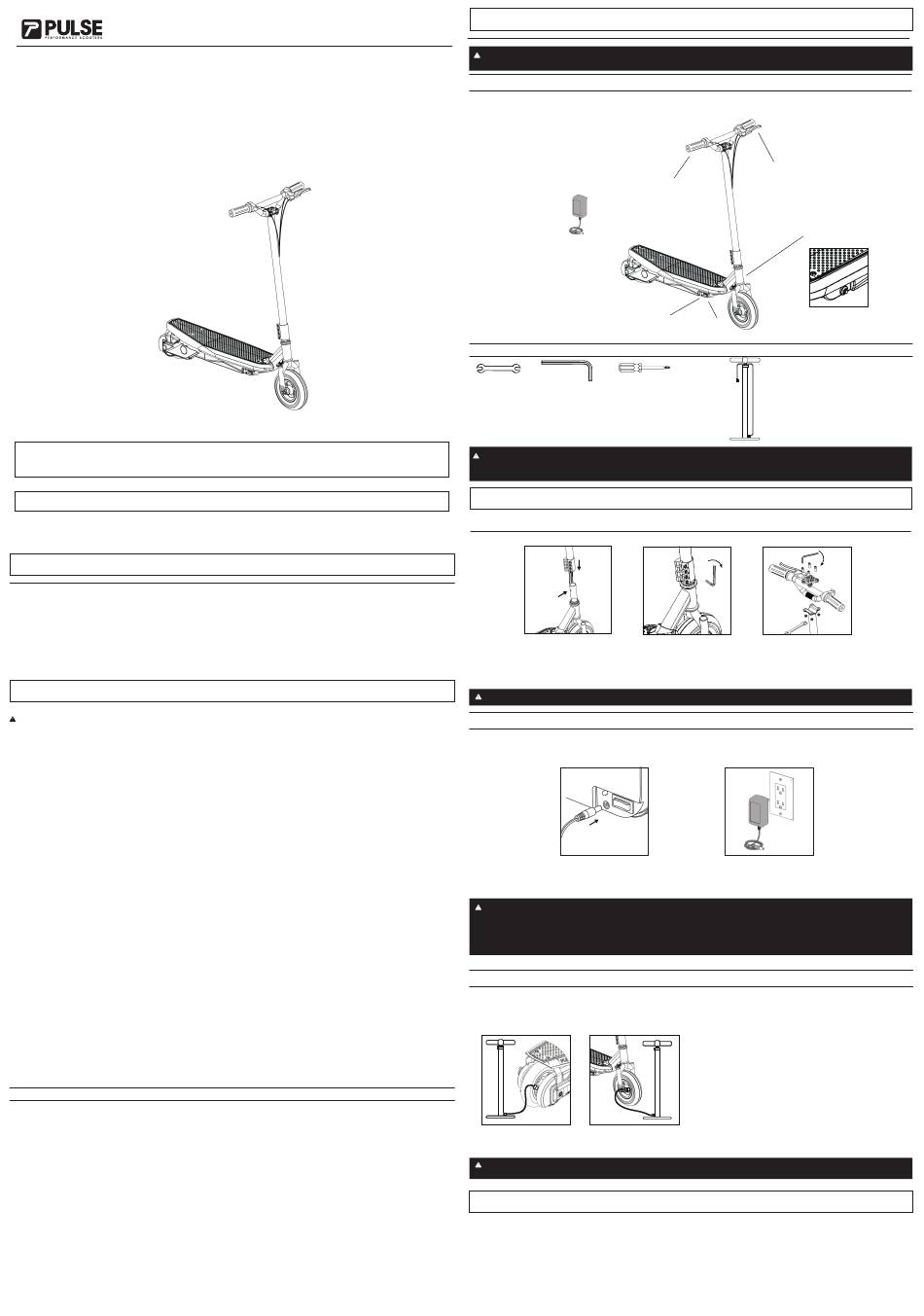

Pulse Sonic User Manual

Recommended rider age 13 years and up
Adult Assembly is required
ELECTRIC SCOOTER
USER MANUAL
FOR ANY PRODUCT ENQUIRES PLEASE CALL 1800 224 094. DO NOT
RETURN THIS PRODUCT TO THE STORE OF PURCHASE
NOTE: Manual illustrations are for reference purposes only. Illustrations may not reflect the exact appearance of the actual product. Specifications are subject to change without
notice.
This manual covers the following models:
• Sonic
Contents

Safety and Warnings

Before You Start

Assembly

Hardware Maintenance

Before You Ride
Repair and Maintenance
Troubleshooting Guide
Scooter Parts
Warranty
Safety and Warnings
WARNING: Riding an electric scooter can be a dangerous activity. Certain conditions may cause components to fail without fault of the manufacturer. Scooter can and
is intended to move and it is therefore possible to lose control, fall off and/or get into dangerous situations that no amount of care, instruction or expertise can eliminate.
If such a thing does occur you can become seriously injured or die, even when using safety equipment and other safety precautions. RIDE AT YOUR OWN RISK AND
ALWAYS USE COMMON SENSE.
This manual contains many warnings and cautions concerning the consequences of failing to inspect, maintain or properly use your electric scooter. Since any incident
can result in serious injury or even death, we do not repeat the warning of possible serious injury or death each time such a possibility is mentioned in this manual.
APPROPRIATE RIDING ATTIRE
Always wear proper protective equipment such as:
• Approved safety helmet. (Helmet may be legally required by local law or regulation in your area.)
• Elbow pads and knees pads
• Long sleeved shirt, long pants
• Gloves
• Lace up shoes with rubber soles, never ride barefooted or in sandals, and insure that shoelaces are tied and kept out of the way of the wheels and drive system.
RIDER USE AND PARENTAL SUPERVISION
RIDER MUST NOT EXCEED THE WEIGHT LIMIT OF 68kg. Rider weight does not always mean a person's size is appropriate to fit or maintain control of the scooter.
This manual contains extremely important safety information. It is your responsibility to completely review this information and make sure that all riders understand all
warnings, cautions, instructions and safety topics and assure that all riders are able to safely and responsibly use this scooter. Pulse advises that you periodically review
and reinforce all information in this manual with all riders, and that you inspect and maintain your scooter to insure their safety. The recommended rider age is 13 and
older. Any rider that is unable to fit comfortably on the scooter should never attempt to ride it. A parent's decision to allow their child to use scooter should be based on
the child's maturity, skill and their ability to follow rules. Do not touch the motor or brakes on the scooter when in use or directly after use as these parts can become
extremely hot. Keep this scooter away from small children and remember that it is intended for use only by persons who are, at a minimum, completely competent and
comfortable while operating this product.
RIDING PRACTICES AND CONDITIONS
Check and obey any local laws or regulations which may affect the locations where the electric scooter may be used. Always ride defensively. Watch out for obstacles
that could catch your wheel or force you to turn suddenly or lose control. Be careful to avoid pedestrians, other wheeled products (such as skaters, skateboards, scooters,
bikes, etc.), children or animals who may enter your path. Always respect the rights and property of others. Do not activate the speed control on the hand grip unless you
are on the scooter and in a safe, outdoor environment that is suitable for riding. Do not attempt or perform stunts or tricks on this electric scooter. This product is not made
to withstand abuse from jumping, curb grinding or any other type of misuse or stunts. Maintain a hold with both hands on the handlebars at all times.
• Maintain a hold with both hands on the handlebars at all times.
• Never allow more than one person at a time to ride the scooter.
• Never use near steps, water, or swimming pools.
• Keep your fingers and other body parts away from the belt, motor, steering system, wheels and all other moving components.
• Never ride while using a cell phone or wearing headphones.
• Never hitch on to or with another vehicle or pull anyone or anything.
• Never immerse the scooter in water; electrical and drive components could be damaged by water or create other possible unsafe conditions.
• Ride only on flat, dry surfaces such as pavement or level ground without loose debris, such as sand, leaves, rocks or gravel. Water, mud, ice, bumpy, uneven, slick, or
rough surfaces could impair traction and contribute to possible loss of control. Avoid excessive speeds that can occur from downhill rides which could cause loss of
control.
• Do not ride at night or in areas of limited visibility.
• Do not ride indoors or on surfaces that could become damaged such as carpet or flooring.
Before each ride, the operator shall perform the preoperational checks specified by the manufacturer:
• That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition.
• Persons with the following conditions shall be cautioned not to operate: Those with heart conditions, pregnant women, persons with head, back, or neck ailments, or
prior surgeries to those areas of the body. Persons with any mental or physical conditions that may make them susceptible to injury or impair their physical dexterity or
mental capabilities to recognize, understand, and perform all of the safety instructions and to be able to assume the hazards inherent in unit use.
• Ensure that the brake system is functioning properly.
• The stearing system is correctly adjusted and that all components are properly secured and are functioning according to manufactures specifications.
• Components shall be maintained and repaired in accordance with the manufacturers authorized replacement parts with installation performed by dealers or other skilled
individuals.
• Maximum operating speed is 13 MPH (20 KM/H).
USING THE CHARGER
The charger should be regularly examined for damage to the cord, plug, enclosure and other parts. In the event of such damage, if any is found, the scooter should not
be charged until the charger has been repaired or replaced.
Use only with the supplied recommended charger.
Always use caution when charging.
The charger is not a toy and should be operated by an adult.
Never operate charger near flammable materials or liquids.
Disconnect the charger and unplug from scooter when not in use.
Do not exceed recommended charging time.
Always disconnect the charger from the scooter prior to wiping down and cleaning with any liquid.
Do not touch the motor or brakes on the scooter when in use or directly after use as these parts can become extremely hot.
While you are using your scooter always make sure to avoid pitching and or entrapment.
FAILURE TO HEED TO THE WARNINGS LISTED ABOVE INCREASES RISK OF POTENTIAL SERIOUS INJURY. USE THE APPROPRIATE CAUTION WHEN
RIDING AND ALWAYS WEAR PROTECTIVE GEAR.
Before You Start
WARNING: Remove all packing and items from the display box. Make sure that the power switch is turned "OFF" before assembling the
scooter.
Estimated Assembly Time
• Allow up to 25 minutes for assembly, not including initial charge time.
• Allow up to 14 hours for the initial charge.
charger
(included)
Required Tools
10mm/ 8mm wrench 4mm hex wrench Phillips
(included) (not included) screw driver
1 (two) 13mm wrenches (not included)
(not included) 5mm hex wrench
1 (one) 14mm wrench (included)
(not included)
1 (one) 12mm wrench
(not included)
WARNING: DO NOT USE NON-PULSE PRODUCTS WITH YOUR PULSE CHARGER ELECTRIC SCOOTER.
This scooter has been built to specific Pulse design specifications and should not be modified. Altering of the original components may or may not
be compatible with the design and will void the warranty.
Assembly
Handlebar Steer Tube Assembly
Tools required: 5 mm hex wrench, 10 mm wrench
B
A
1. Depress the push button located on 2. Tighten the bolts with the 5mm hex
the rear of the fork and insert the wrench evenly and securely.
handlebar steer tube onto the fork. The
push button should align with the locator
hole in the handlebar steer tube and
lock the steer tube securely in place.
WARNING: Batteries must be fully charged before you ride your electric scooter.
Charging the Battery
Required components: Charger
• Initial battery charge time- 14 hours
• Recharges after initial charge- Up to 10 hours
• When scooter is not in regular use batteries need to be charged on a monthly basis to maximize performance.
1. Make sure power switch is in the OFF
position before plugging in the charger.
Insert charger into charging port on the
right side of the battery box.
WARNING: Do not use this product for the first time until you have charged the battery for at least 14 hours. Failure to follow these instructions
may damage your product and void your warranty. Do not store the battery in temperatures above 70˚F (21˚C) or below 32˚F (0˚C).
Note: The charger has a small window with one LED light that indicates the charge status. Refer to the illustration on the charger unit for the
actual "charging" and "charged" status indication. Your charger may get warm during use; this is normal and is no cause for concern.
Note: Batteries must be recharged at least once a month even when the scooter is not in use. Failure to do so may result in batteries that will no
longer accept a charge.
Tire Inflation
Tools required: Air/tire pump
Tires are inflated to the maximum PSI prior to shipping however some air pressure maybe lost between the manufacture date and your purchase date.
Using a hand pum with a Schrader-type valve and pressure gauge, inflate the tires to the recommended PSI as called out on the tire sidewall. It is not recommended
to use pressurized system similar to the ones found at gas stations as these are designed to inflate car tires that have much higher air capacity volumes.
REAR TIRE PSI: 60 FRONT TIRE PSI: 36
WARNING: It is important to routinely check and maintain tire pressure as this directly impact the safety and performance of the scooter. Do
not overinflate tire as you can cause damage to the tire or the wheel.
Hardware Maintenance
Brake
Check the brakes for proper function. When you squeeze the lever, the brake should provide positive braking action. When you apply the brake with the speed control
on, the brake cut off switch should stop the motor. Make sure that the brakes are not rubbing.
Frame, Fork and Handlebars
Check for cracks or broken connections. Although broken frames are rare, it is possible for aggressive rider to run into a curb or wall and bend or break a frame. Get in
the habit of inspecting your scooter on a regular basis.
Tires
Periodically inspect the wheels for excess wear.
Safety Gear
Always wear proper protective gear such as an approved safety helmet. Elbow pads and knee pads are recommended. Always wear athletic shoes (lace up shoes
with rubber soles), never ride barefooted or in sandals, and keep shoelaces tied and out of the way of the wheels, motor and drive system.
Battery
Make sure the power switch is turned off whenever the scooter is not in use. Never store the product in freezing or below freezing temperatures! Freezing will
permanently damage the battery.
brake lever
throttle
reset
button
charging
on/off
port
switch
Air/tire pump with
pressure gauge for
schrader type valves
(not included)
C
A
B
D
3. Align handlebars both vertically and
horizontally (a) onto handlebar steer
tube clamp (b) install handlebar clamp
and hardware (c&d) and tighten evenly
and securely with the 5mm hex wrench
and 10mm wrench.
2. Plug the charger into a wall power
outlet. The light on the charger housing
should illuminate. Red LED light
indicates battery is charging and a green
LED light indicates battery is fully
charged.
ENSURE TIRES ARE AT THE
CORRECT PSI BEFORE RIDING
THE SCOOTER
