  • Page 1 GRANDVIEW ENGINEERING SOLUTIONS, LLC Grandview RemoteConnect Owner’s Manual Grandview Engineering Solutions 4831 N Warren Drive Columbus, IN 47203 Publication Date: August 19, 2019 Publication Number: 006-0819 Grandview RemoteConnect Owner’s Manual Page ! of !
  • Page 2 Engineering Solutions, LLC. You may not decipher or de-compile Grandview RemoteConnect, develop source code for Grandview RemoteConnect, or knowingly allow others to do so. The Grandview RemoteConnect and its documentation may not be sub-licensed or transferred without the prior written consent of Grandview Engineering Solutions, LLC.
  • Page 3: Table Of Contents

    Installing the Drivers and Setting Up the Device INSTALL THE DRIVERS USING THE GRANDVIEW CONFIGURATION TOOL PAIRING GRANDVIEW REMOTECONNECT WITH PC CONNECT THE GRANDVIEW REMOTECONNECT TO A VEHICLE TEST THE CONNECTIONS SETTING UP AN RP1210 APPLICATION RP1210 Compliance with OEM Software...
  • Page 4: Using This Manual

    ❖ Conventions, page 5 ❖ MANUAL OVERVIEW This manual provides basic and detailed information to support you during installation and setup of the Grandview RemoteConnect datalink adapter. This manual is composed of the following sections: • Table of Contents—helps you to find the information you are looking for quickly and easily.
  • Page 5: Conventions

    GRANDVIEW ENGINEERING SOLUTIONS, LLC CONVENTIONS This section provides descriptions of the conventions used throughout this manual. Note Provides an explanation, comment, or tip related to the subject matter that is being discussed. Example: ℹ Refer to the page number provided for each described component for further details.
  • Page 6: Introducing The Grandview Remoteconnect

    Minimum System Requirements, page 7 ❖ Device Features, page 8 ❖ KIT CONTENTS The following components are included with your Grandview RemoteConnect. Be sure you have all of the following items before using the device: • Grandview RemoteConnect datalink adapter •...
  • Page 7: Product Specifications

    GRANDVIEW ENGINEERING SOLUTIONS, LLC PRODUCT SPECIFICATIONS The Grandview RemoteConnect is configured with the following specifications: Feature Data Physical Dimensions 5.90” x 2.95” x 1.18” (150 mm x 75 mm x 30 mm) Weight 8 oz. (200 g) Power Requirements 5 VDC @ 350 mA maximum Operating Temperature 0 to +70 °C...
  • Page 8: Device Features

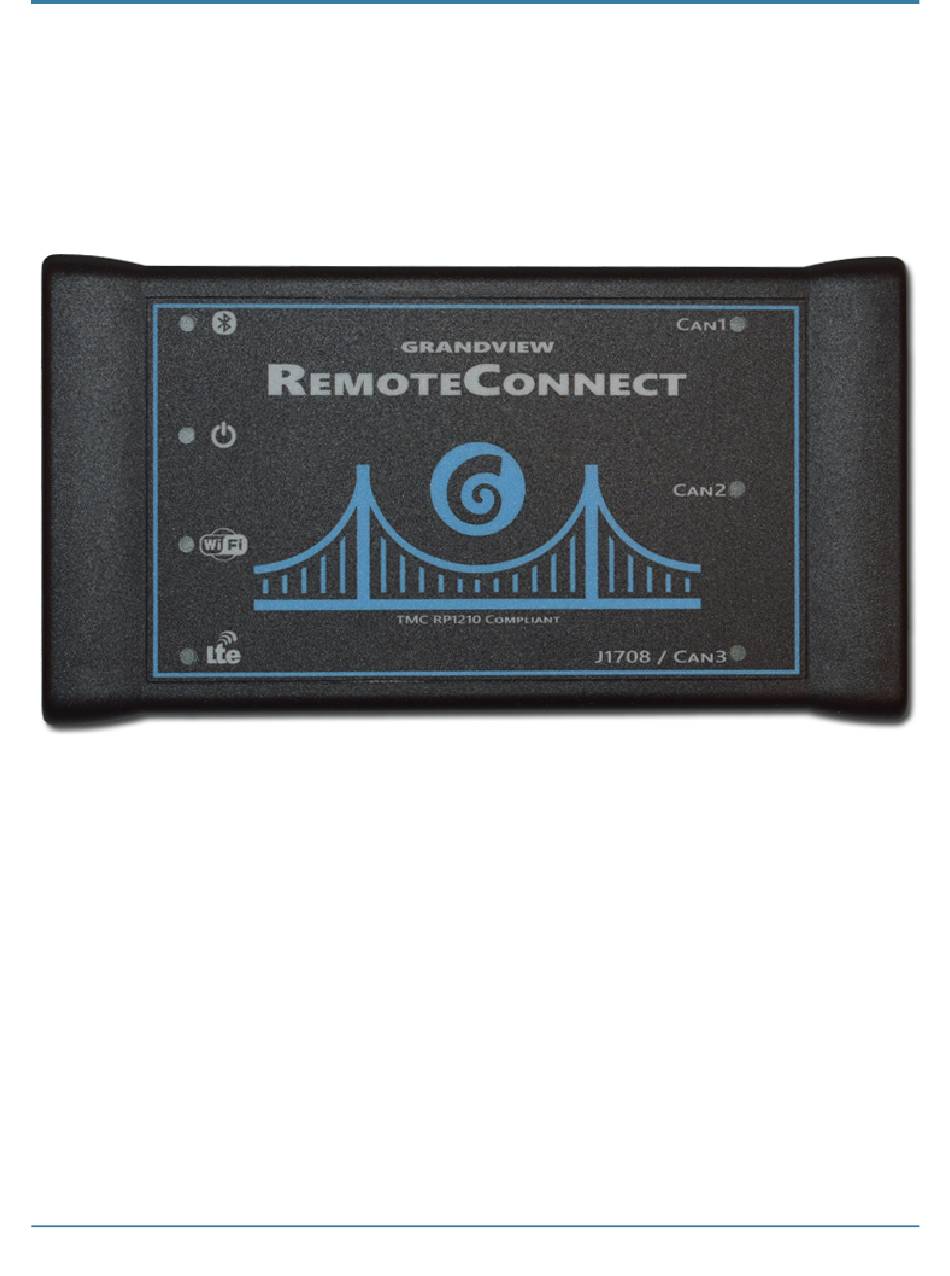

    +12 VDC that is supplied from the vehicle through the 15-pin connector. — When the power LED is off, this means that the Grandview RemoteConnect is not receiving sufficient power. — When the WiFi LED is lighted blue continuously, this means that the 802.11 radio is powered. The WiFi radio is only powered when connected to +12VDC, USB is not sufficient for the radio’s power needs.
  • Page 9 GRANDVIEW ENGINEERING SOLUTIONS, LLC 1 LED — The CAN 1 blue LED indicates that the Grandview RemoteConnect is physically connected to a CAN data link. — A CAN 1 blue flashing LED indicates that the Grandview RemoteConnect is communicating with an RP1210 application on the CAN data link.
  • Page 10: Installing The Drivers And Setting Up The Device

    Support at (812) 372-1725, or send us an e-mail at: support@grandviewengineeringsolutions.com INSTALL THE DRIVERS Prior to using the Grandview RemoteConnect adapter, you must install the necessary drivers and software. The Grandview RemoteConnect drivers are compatible with Microsoft® Windows® 7, Windows® 8, and Windows®...
  • Page 11 GRANDVIEW ENGINEERING SOLUTIONS, LLC The Welcome to “Grandview Standard Software” screen is displayed. 5 Carefully read the information displayed on the screen, and follow the recommendations. 6 Click [Next]. The “License Agreement” screen is displayed. 7 Read all the information on this screen, then click [I accept the terms in the license agreement].
  • Page 12 GRANDVIEW ENGINEERING SOLUTIONS, LLC The installation begins and the following screen is displayed. 9 Click [Install]. If you are running Windows® 7 or higher, the following Windows Security dialog may be displayed. 10 Click [Yes] to continue. Grandview RemoteConnect Owner’s Manual...
  • Page 13 GRANDVIEW ENGINEERING SOLUTIONS, LLC 11 Wait briefly while the installation continues. This installation will add a USB device driver to your 12 Click [Yes]. Wait again for the “Installation Complete” screen to be displayed. 13 Click [Finish]. Grandview RemoteConnect Owner’s Manual...
  • Page 14: Using The Grandview Configuration Tool

    You use the Grandview Configuration tool to test the connection between the Grandview RemoteConnect and the PC. At startup, the Configuration tool checks for any Grandview data link adapters connected to the PC. To test the connection between the Grandview RemoteConnect and the PC: 1 Click Start and then select All Programs ⇛...
  • Page 15 If a newer version is available, the [Update] button will be enabled. 1 Click the [Update] button. 2 Wait briefly while the Grandview RemoteConnect software is updated. 3 The Grandview RemoteConnect will automatically reset and re-establish a connection to the PC.
 Grandview RemoteConnect Owner’s Manual...
  • Page 16 GRANDVIEW ENGINEERING SOLUTIONS, LLC The Configure Tab The “Configure” tab is used to configure the Grandview RemoteConnect’s 802.11 WiFi Settings. You may put the device in Ad-Hoc or Infrastructure mode. Ad-Hoc Mode —An 802.11 networking framework in which devices or stations communicate directly with each other, without the use of an access point (AP).
  • Page 17: Pairing Grandview Remoteconnect With Pc

    GRANDVIEW ENGINEERING SOLUTIONS, LLC PAIRING GRANDVIEW REMOTECONNECT WITH PC For cellular connections the PC must know the public IP address of the Grandview RemoteConnect device in order for it to communicate with the device over a cellular network. ℹ Contact Grandview at support@grandviewengineeringsolutions.com 1 Someone from Grandview Engineering Solutions will make contact with you to start a LogMeIn session.
  • Page 18: Connect The Grandview Remoteconnect To A Vehicle

    GRANDVIEW ENGINEERING SOLUTIONS, LLC CONNECT THE GRANDVIEW REMOTECONNECT TO A VEHICLE Once you have installed the Grandview RemoteConnect drivers, you are ready to connect to a vehicle using the DB15M/Green 9-Pin + Blue 9-Pin Deutsch adapter cable. DB15M/Green 9-pin + Blue 9-Pin Deutsch Cable Connect using Bluetooth, WiFi or Cellular 1 Connect the DB15 male end of the appropriate adapter cable to the Grandview RemoteConnect.
  • Page 19: Test The Connections

    TEST THE CONNECTIONS Use the QuickView application to test the connection between the Grandview RemoteConnect and the vehicle. 1 Click Start and then select All Programs ⇛ Grandview Engineering Solutions, LLC ⇛ Vehicle Network Bridge ⇛ Grandview QuickView. The application is started and the QuickView “Settings” screen is displayed.
  • Page 20 1 Connect the USB cable (i.e., a Type A to Type B USB cable) to the USB port of the PC or laptop. 2 Connect the other end of the cable to the USB port on the end of the Grandview RemoteConnect.
  • Page 21 ℹ The Grandview RemoteConnect Bluetooth device is configured as a Personal Area Network (PAN). This means that the Grandview RemoteConnect will broadcast its own network. After pairing with this device, you will have connect your PC to this network. The SSID (network name) will be “GrandviewBT” + last 4 digits of the serial number.
  • Page 22 2 Confirm the LTE LED is blinking blue on the Grandview RemoteConnect. 3 Confirm that your PC has internet connectivity. 4 Contact Grandview Engineering Solutions (the first time only) to configure your PC for communications with your Grandview RemoteConnect device.
  • Page 23 — In the Settings, make sure that the [Vendor] is GES32 and the [Device] is (USB or WiFi).
 — Check the adapter cable connections between the Grandview RemoteConnect and the vehicle are secure.
 — Check to make certain that the Power LED on the Grandview RemoteConnect is illuminated.
...
  • Page 24: Setting Up An Rp1210 Application

    GRANDVIEW ENGINEERING SOLUTIONS, LLC SETTING UP AN RP1210 APPLICATION 1 Using an RP1210 compliant application configure the connection settings with the [Vendor] as Grandview Engineering Solutions or GES32. Set the [Device] as USB, WiFi + BT or Cellular. 2 Using an RP1210 compliant application begin whatever connection procedure is typical for that application.
  • Page 25: Rp1210 Compliance With Oem Software

    Volvo Premium Tech Tool (PTT) • Wabco Toolbox ℹ Grandview Engineering Solutions strives to comply with all OEM RP1210 C applications. If you experience an RP1210 OEM application which we do not support please contact us at support@grandviewengineeringsolutions.com
 Grandview RemoteConnect Owner’s Manual...
  • Page 26: Version History

    Version 2.1.12.8 Release Date: January 31, 2018 This version is the first to support the Grandview RemoteConnect product. Also included in this release, are improvements to the VNB Config application and minor bug fixes for the RP1210 driver with the Grandview RemoteConnect in AdHoc mode.
