Summary of Contents for Blinds To Go Move

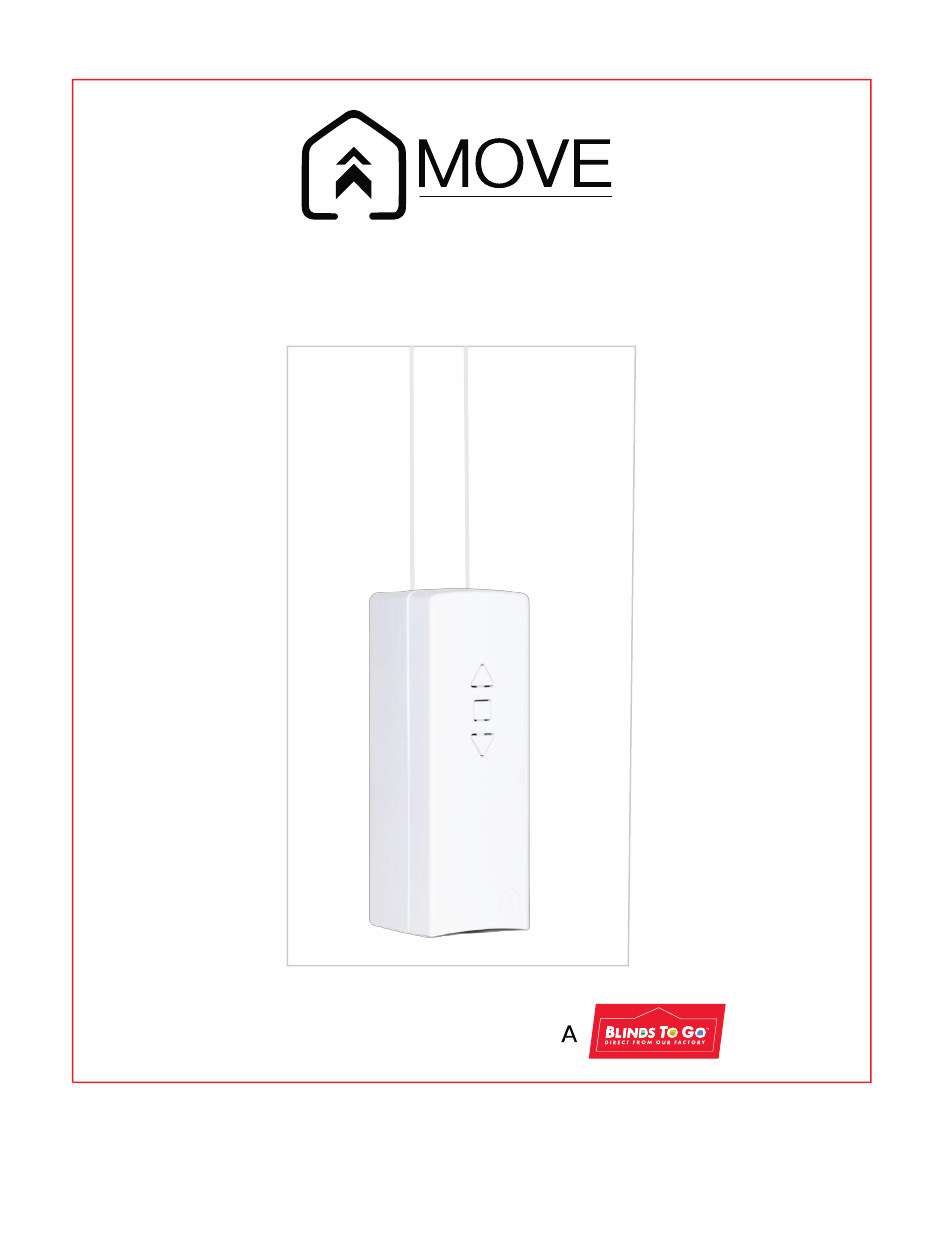

- Page 1 FOR CORD LOOPS Inst allati on Guide PRODUCT...
- Page 2 Components: Power Supply Battery Pack Solar Panel Mounting Anchor Metal Plate Screws Connector 8- MOVE UNIT NOTE (*) : not sold with every unit...
- Page 3 1. Prepare your Shade: a) Remove tension device on cord loop –see example below Please note: Refer to your manufacturer guide for removing tension device 2. Choose Your Mount Position a) Inside Mount (Image A)– Make sure nothing will interfere with the operation of the shade.
-
Page 4: Installing Mounting Plate
Installing Mounting Plate: WHAT YOU WILL NEED: a) Align plate with where the cord is fully tensioned. b) Mark holes for screws at the bottom of screw channels as shown in image B c) Using a screwdriver or power drill install the anchors and screws into the mounting plate with the arrow facing up as shown - IMAGE A IMAGE B... - Page 5 4. Attaching Move Unit: WHAT YOU WILL NEED: IF APPLICABLE a) Attach cord loop into MOVE unit as shown in image A Please Note: cord should lay over the bent prongs and under the raised prongs as shown below in Image B...
- Page 6 Make sure cord is not twisted and attach the MOVE unit sideways onto the mounting plate. (image C) (If you have rechargeable battery (see component number 1 above) you must attach it to the MOVE unit before attaching to mounting plate) Note: Cord must be tensioned and taught.
-
Page 7: Power Options
5.Power Options: a) Rechargeable battery pack with power supply WHAT YOU WILLL NEED: Plug micro USB on the power adapter into the unit and the opposite end into the outlet and let charge until red light turns off (approx.6 hours) Once the battery is fully charged remove the power adapter from the battery and store for future use *NOTE: Battery comes with 20% charge... - Page 8 Please Note: Red light will flash on battery pack (indicated below) every 30 seconds when low battery is detected b) Rechargeable battery pack with Solar Panel WHAT YOU WILL NEED: Connect Solar Panel to window with solar panel facing window Plug solar panel’s micro USB into Rechargeable battery pack.
- Page 9 Direct power supply. WHAT YOU WILL NEED: Plug micro USB charger into MOVE unit as shown below Plug the opposite end into the outlet Please Note: Micro USB charger must be plugged into MOVE unit and power outlet at all times.
- Page 10 6. Download the App a. Download Move App by searching MOVE motorize blinds and shades from the appropriate app store for your phone and follow the instructions to set up the MOVE unit ICON...
