 Thank you for choosing H eat pumps , please read this owner's manual carefully before operation and
retain it for future reference.If you have lost the Owner's Manual, please contact the local agent or visit
www.c ooperandhunter .com.
C ooper&Hunter reserves the right to interpret this manual which will be subject to any change due to
product improvement without further notice.
C ooper&Hunter , Inc. reserves the final right to interpret this manual.

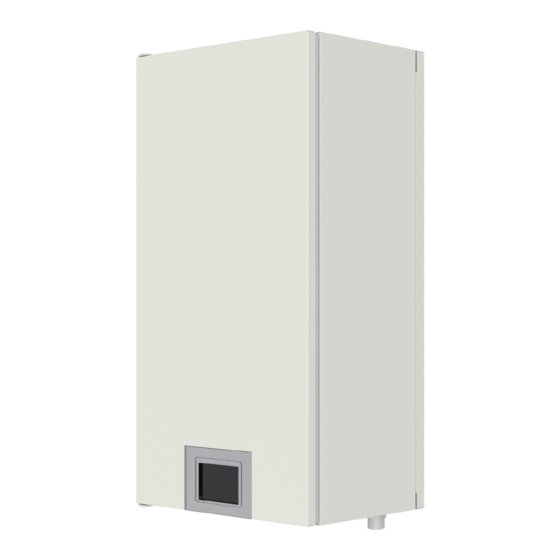

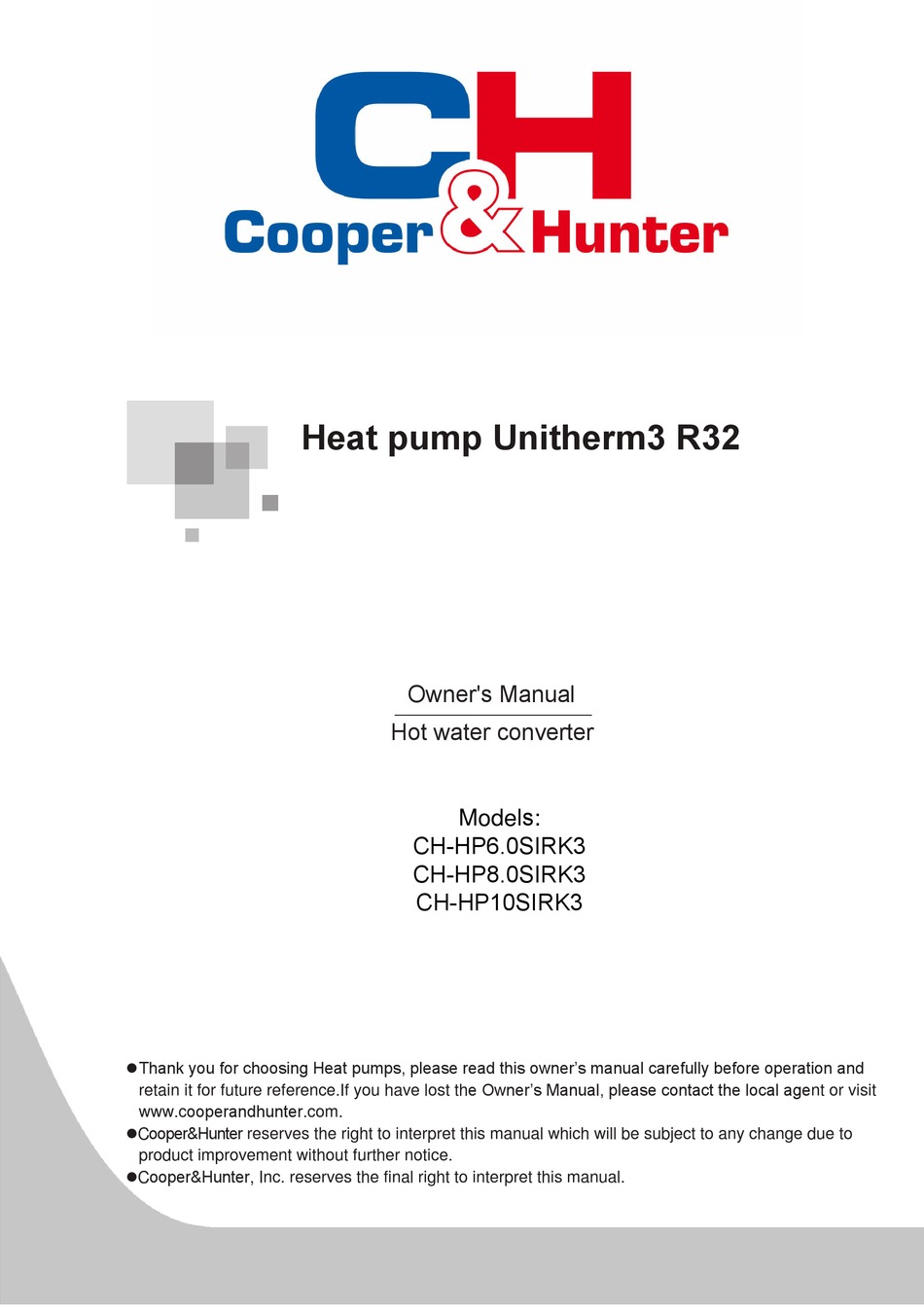

Heat pump Unitherm3 R32
Owner's Manual
Hot water converter
Models:
CH-HP6.0SIRK3
CH-HP8.0SIRK3
CH-HP10SIRK3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-HP10SIRK3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cooper & Hunter CH-HP10SIRK3

Summary of Contents for Cooper & Hunter CH-HP10SIRK3

  • Page 1 Models: CH-HP6.0SIRK3 CH-HP8.0SIRK3 CH-HP10SIRK3  Thank you for choosing H eat pumps , please read this owner’s manual carefully before operation and retain it for future reference.If you have lost the Owner’s Manual, please contact the local agent or visit www.c ooperandhunter .com.
  • Page 2 To Users Thank you for selecting C&H product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve expected operating effect, we hereby instruct as below: (1) This equipment should be installed, operated or maintained by the qualified servicemen who have had specific training.

  • Page 3: Table Of Contents

    Contents Safety Notices (Please be sure to abide ) ..............1 1. Diagram of the Operating Principle ................. 8 2. Operating Principle of the Unit ................. 8 3. Nomenclature......................10 4. Installation Example ..................... 11 5. Main Components ....................14 5.1 Indoor unit ........................14 5.2 Outdoor unit ........................16 6.
  • Page 4 18.2 Outline dimension and parameter of water tank ............32 18.3 Connection of waterway system ...................33 18.4 Electric wiring work ......................35 19. Wring Diagram ....................... 37 19.1 Control board ........................37 19.2 Electric wiring ........................43 20. Commissioning...................... 46 20.1 Check before startup .....................46 20.2 Test run .........................47 21.

  • Page 5: Safety Notices (Please Be Sure To Abide )

    Heat Pump Unitherm 3 R32 Safety Notices (Please be sure to abide ) WARNING: If not abide strictly, it may cause severe damage to the unit or the people. NOTE: If not abide strictly, it may cause slight or medium damage to the unit or the people.
  • Page 6 Heat Pump Unitherm 3 R32 WARNING Once abnormality Don't operate the unit with Before likeburning smell occurs, wet hand. installation,please see please cut off the power if the voltage of local supply immediately and place accords with then contact with service that on nameplate center.
  • Page 7 Heat Pump Unitherm 3 R32 Before cleaning please cut The power supply must User can not change off the power supply. adopt special circuit with power cord socket leakage switch and enough without prior consent. capacity. Wiring working must be done by professionals.
  • Page 8 Heat Pump Unitherm 3 R32 Don't step on the top of the Never block the air inlet and Keep pressurized unit or place anything on it. outlet of unit. spray, gas holder and so on away from the unit above 1m . There is the danger of fall of things or people.
  • Page 9 Heat Pump Unitherm 3 R32 WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. Should repair be necessary, contact your nearest authorized service centre. Any repairs carried out by unqualified personnel may be dangerous.
  • Page 10 Heat Pump Unitherm 3 R32 To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R32, which is specially cleaned.The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion under certain conditions.
  • Page 11 Heat Pump Unitherm 3 R32 maximum and minimum water operating temperatures. Maximum Minimum water operating Item water operating temperatures temperatures Cooling 7°C 25°C Heating 20°C 60°C Water heating 40°C 80°C maximum and minimum water operating pressures. Minimum water operating Maximum water Item pressures operating pressures...

  • Page 12: Diagram Of The Operating Principle

    Heat Pump Unitherm 3 R32 1. Diagram of the Operating Principle Indoor Unit Outdoor Unit Field Supply AmbientT emp. Sensor Defrost temp. sensor Fin-tube Othert hermal heat exchanger EXV1 EXV2 T-economizer in Highp ressure 4-wayv alve sensor Safety Highp ressure vavle switch 3-Way...
  • Page 13 Heat Pump Unitherm 3 R32 Water heating: in water heating mode: the refrigerant evaporates in the outdoor unit and is condensed in the indoor unit. Via the heat exchange with water in the indoor unit, the water absorbs heat and its temperature increase while the refrigerant releases heat and is condensed.

  • Page 14: Nomenclature

    Heating Cooling CH-HP6.0SIRK3 CH-HP8.0SIRK3 230VAC 50Hz CH-HP10SIRK3 Notes Capacities and power inputs are based on the following conditions: Indoor Water Temperature 30°C/35°C, Outdoor Air Temperature 7°C DB/6°C WB; Capacities and power inputs are based on the following conditions: Indoor Water Temperature 23°C/18°C, Outdoor Air Temperature 35°C DB/24°C WB.

  • Page 15: Installation Example

    Heat Pump Unitherm 3 R32 4. Installation Example CASE 1: Connecting Under-floor Coil for Heating and Cooling Under-floor coil Indoor Outdoor Shut-off valve By-pass valve (field supplied) Notes (a) The two-way valve is very important to prevent dew condensation on the floor while cooling mode; (b) Type of thermostat and specification should be complied with installation of this manual;...
  • Page 16 Heat Pump Unitherm 3 R32 CASE 2: Connecting Sanitary Water Tank and Under-floor Coil Under-floor coil Indoor Outdoor Sanitary water tank By-pass valve (field supplied) Shut-off valve Notes (a) The two-way valve is very important to prevent dew condensation on the floor while cooling mode (b) In this case, three-way valve should be installed and should be complied with installation of this manual;...
  • Page 17 Heat Pump Unitherm 3 R32 CASE 3 : Connecting Sanitary Water Tank, Under-floor Coil and FCU Indoor Under-floor coil Outdoor FCU1 FCU2 Sanitary water tank By-pass valve (field supplied) 2-way valve (field supplied) Shut-off valve Notes (a) The two-way valve is very important to prevent dew condensation on the floor and FCU while cooling mode (b) In this case, three-way valve should be installed and should be complied with installation of this manual;...

  • Page 18: Main Components

    Heat Pump Unitherm 3 R32 5. Main Components 5.1 Indoor unit CH-HP6.0SIRK External Plate Heat Exchanger Automatic relief valve Electric Heater Control Box Expansion Tank Water pressure gauge Safety Valve Water Pump 3-Way Valve Flow Switch Internal...
  • Page 19 Heat Pump Unitherm 3 R32 CH-HP8.0SIRK CH-HP10.0SIRK External Plate heat exchanger Automatic relief valve Electric heater Control box Expansion tank Water pressure gauge Safety valve Water pump 3-way valve Flow switch Control panel Internal...

  • Page 20: Outdoor Unit

    Heat Pump Unitherm 3 R32 5.2 Outdoor unit CH-HP6.0SIRK External Control Box DC Fan Motor Compressor Internal CH-HP8.0SIRK CH-HP8.0SIRK External Control Box DC Fan Motor Compressor Internal...

  • Page 21: Installation Guideline Of Outdoor Unit

    Heat Pump Unitherm 3 R32 6. Installation Guideline of Outdoor Unit 6.1 Instruction to installation (1) Installation of the unit must be in accordance with national and local safety codes. (2) Installation quality will directly affect the normal use of the air conditioner unit. The user is prohibited from installation.
  • Page 22 Heat Pump Unitherm 3 R32 CH-HP8.0SIRK Description: Unit: inch Name Remarks Liquid-side Service Valve CH-HP6.0SIRK CH-HP8.0SIRK CH-HP6.0SIRK Gas-side Service Valve Handle Used to cover or uncover the front casew Air discharge Grill 6.2.3 Space requirements for installation Wall Wall ＞200 ＞300 ＞250 ＞350...

  • Page 23: Installation Of Indoor Unit

    Heat Pump Unitherm 3 R32 7. Installation of Indoor Unit 7.1 Selection of the installation location for the indoor unit (1) Avoid direct sunshine. (2) Ensure the hanger rod, ceiling and building structure have sufficient strength to support the weight of air conditioner unit.

  • Page 24: Installation Process Of Indoor Unit

    Heat Pump Unitherm 3 R32 7.3 Installation process of indoor unit Step1:Drilling hole on the wall in the following draw. Wall Wall Step2:Install expansion bolts and forecasted pannel. Support Expansion bolt X3 Wall Wall Step3: Attaching indoor unit to the wall. Wall Thermal baffle Note...

  • Page 25: Outline Dimension Of Indoor Unit

    Heat Pump Unitherm 3 R32 7.4 Outline dimension of indoor unit Description: Unit: inch Name Remarks Leaving Water Pipe 1″Male BSP Returning Water Pipe 1″Male BSP Gas-side Pipe CH-HP6.0SIRK CH-HP8.0SIRK CH-HP10.0SIRK Liquid-side Pipe 7.5 Precautions on installation of indoor unit (1) Indoor unit shall be vertically mounted on the wall of the room with expansion bolt.

  • Page 26: Water Volume And Expansion Vessel Pressure

    Heat Pump Unitherm 3 R32 7.7 Water volume and expansion vessel pressure Maximum total water volume(liter) Notes (a) The expansion vessel is 10 liter and 1bar pre-pressurized; (b) Total water volume of 280 liter is default; if total water is changed because of installation condition, the pre- pressure should be adjusted to secure proper operation.

  • Page 27: Connection Of Pipeline

    Heat Pump Unitherm 3 R32 Water expansion factor in different temperature Temperature(°C) Expansion factor e 0.0198 0.0227 0.0258 0.029 0.0324 0.0359 0.0396 0.0434 8. Connection of Pipeline 8.1 Connection of outlet pipe for indoor & outdoor unit (1) Align the expansion end of copper pipe with the center of threaded joint. Tighten the flaring nuts with your hands.
  • Page 28 Heat Pump Unitherm 3 R32 No clearance Indoor unit Outdoor unit Indoor unit Outdoor unit Outdoor unit Indoor unit Oil bend Pipe size Length B Elevation A Additional (Diameter:Φ) Model refrigerant Liquid Standard Max. Standard Max. 1/2" 1/4" 16g/m 1/2" 1/4"...

  • Page 29: Remote Air Temperature Sensor

    Heat Pump Unitherm 3 R32 Notes (a) No additional charge of the refrigerant is need when the pipe length is less than 10m, if the pipe length is longer than 10m, additional charge of the refrigerant is needed according to the table. (b) Example: If 10kW model is installed at a distance of 25m, (25-10)x16=240g refrigerant should be added.

  • Page 30: Thermostat

    Heat Pump Unitherm 3 R32 (d) Remote air temperature sensor cannot be located where external thermal influence may be applied; (e) Remote air temperature sensor should be installed where space heating is mainly applied; (f) After the remote air temperature sensor is installed, it should be set to “With” through the wired controller so as to set the remote air temperature to the control point.

  • Page 31: Way Valve

    Heat Pump Unitherm 3 R32 N(1) N(1) N(1) 2-Way 2-Way 2-Way valve 1 valve 1 valve 1 WARNING • Normal Open type should be connected to wire (OFF) and wire (N) for valve closing in cooling mode. • Normal Closed type should be connected to wire (ON) and wire (N) for valve closing in cooling mode. (ON) : Line signal (for Normal Open type) from PCB to 2-way valve (OFF) : Line signal (for Normal Closed type) from PCB to 2-way valve (N) : Neutral signal from PCB to 2-way valve...
  • Page 32 Heat Pump Unitherm 3 R32 Step 1. Other thermal installation Other thermal Indoor Unit Safety 3-Way Optional vavle 2-Way T-water out T-optional 3-way Valve 2 T-liquid pipe E-heater water sensor valve Valve 1 Heating T-wateri n Flow Expansion Water Mixing T-gas pipe switch vessel...

  • Page 33: Gate-Controller

    Heat Pump Unitherm 3 R32 14. Gate-controller If there is gate control function, installation guide follow as: 1 3 14 220~50Hz Gate-controller 15. Charging and Discharging of Refrigerant (1) Before shipped out from manufacturer, the outdoor unit has been filled with refrigerant. Additional refrigerant may be filled when carrying out site connection of pipelines.

  • Page 34: Refrigerant Collecting

    Heat Pump Unitherm 3 R32 16. Refrigerant Collecting When relocating or disposing of the indoor/outdoor unit, pump down the system following the procedure below so that no refrigerant is released into the atmosphere. (1) Turn off the power supply (circuit breaker). (2) Connect the low-pressure valve on the gauge manifold to the charge plug (lowpressure side) on the outdoor unit.

  • Page 35: Installation Of Insulated Water Tank

    Heat Pump Unitherm 3 R32 During recycling refrigerant, make sure the liquid valve and gas valve are closed completely, and the power supply is cut off before disassembling the connection pipe. If connection pipe is disassembled when the compressor is still operating, air may get into the system. In this case, system pressure will increase and compressor will be damaged.

  • Page 36: Outline Dimension And Parameter Of Water Tank

    Heat Pump Unitherm 3 R32 Safety check valve Tap water Note (a) For safe use of water, water outlet/inlet of water tank must connect with a certain length of PPR pipe ,L ≥70×R2(cm, R is inside radius of the pipe). Moreover, heat preservation should be conducted and metal pipe cannot be used.

  • Page 37: Connection Of Waterway System

    Heat Pump Unitherm 3 R32 18.3 Connection of waterway system (1) If connection between water tank and indoor unit should be through the wall, drill a hole φ70 for pass of circulating water pipe. It is unnecessary if the hole is not needed. (2) Preparation of pipelines: Circulating water outlet/inlet pipe must be hot water pipe, PPR pipe with nominal out diameter of dn25 and S2.5 series (wall thickness of 4.2mm) being recommended.
  • Page 38 Heat Pump Unitherm 3 R32 Indoor Unit Water Tank Hot water output Other Thermal System Temp Sensor 1 Temp Sensor 2 Power cord of booster heater Safety check valve Filter cooling Tap water water inlet Blow-off Outlet Description Joint pipe thread Circulating water inlet/outlet of main unit 1″Male BSP Cooling water inlet of water tank...

  • Page 39: Electric Wiring Work

    Wire V,Ph,Hz CH-HP6.0SIRK3(O) 230V,~,50Hz CH-HP6.0SIRK3(I) CH-HP8.0SIRK3(O) CH-HP10SIRK3(O) 230V,~,50Hz CH-HP8.0SIRK3(I) CH-HP10SIRK3(I) Notes (a) Leakage Switch is necessary for additional installation. If circuit breakers with leakage protection are in use, action response time must be less than 0.1 second, leakage circuit must be 30mA.
  • Page 40 Heat Pump Unitherm 3 R32 (f) The specifications of the breaker and power cable listed in the table above are determined based on the maximum power (maximum amps) of the unit. (g) The specifications of the power cable listed in the table above are applied to the conduit-guarded multi-wire copper cable (like, YJV XLPE insulated power cable) used at 40°C and resistible to 90°C (see IEC 60364-5-52).

  • Page 41: Wring Diagram

    Heat Pump Unitherm 3 R32 19. Wring Diagram 19.1 Control board CH-HP6.0SIRK3 CN20 AC_L CN21 CN22 CN23 CN24 CN25 CN10 CN16 CN15 CN19 CN18 Silk Screen Introduction AC-L Live wire of power supply Neutral wire of power supply To the ground E-heater of water tank E-heater 1 E-heater 2...
  • Page 42 Heat Pump Unitherm 3 R32 CN16 20K temperature sensor (refrigerant vapor line) CN16 10K temperature sensor (leaving water for the optional electric heater) CN16 Rreserved Water tank temperature sensor Remote room temperature sensor Rreserved Rreserved Rreserved CN20 Thermostat CN21 Detection to welding protection for the optional electric heater 1 CN22 Detection to welding protection for the optional electric heater 2 CN23...
  • Page 43 High pressure sensor Electronic expansion valve coil 1 Electronic expansion valve coil 2 T_SENSOR1 1,2: Discharged; 3,4: Suction; 5,6:Outdoor T_SENSOR 1,2: economizer inlet; 3,4: economizer outlet; 5,6:defrosting 485-2 communication without 12V 3-pin CH-HP8.0SIRK3 CH-HP10SIRK3 CN20 AC_L CN21 CN22 CN23 CN24 CN25...
  • Page 44 Heat Pump Unitherm 3 R32 Reserved Reserved Reserved Reserved 3-way valve signal CN30 Build-in water pump signal(PWM) CN31 Back-up water pump signal(PWM)-field supply CN18 20K temperature sensor (inlet water) CN19 20K temperature sensor (outlet water) CN15 20K temperature sensor (refrigerant liquid line) CN15 20K temperature sensor (outlet water) CN15...
  • Page 45 Heat Pump Unitherm 3 R32 AC-L AC-N HEAT VA-1 H_PRES S COM- ES PE1 COM- ES PE2 PWR1 DC-M OTORO1 DC-M OTORO T-SE NSOR3 T-SE NSOR2 T-SE NSOR1 Silk Screen Introduction AC-L Live wire of power supply Neutral wire of power supply PWR1 Reserved Fuse...
  • Page 46 Heat Pump Unitherm 3 R32 N-OUT COMM L-OUT AC -L Silk Screen Introduction AC-L Live line input Neutral line input L-OUT Live line output N-OUT Neutral line output COMM Communication To compressor phase U To compressor phase V To compressor phase W...

  • Page 47: Electric Wiring

    Heat Pump Unitherm 3 R32 19.2 Electric wiring 19.2.1 Wiring principle Refer to Section 18.4. 19.2.2 Electric wiring design The wiring diagram stuck to the unit always prevails. (1) Wiring diagram: indoor unit CH-HP6.0SIRK3 CH-HP8.0SIRK3 CH-HP10SIRK3...
  • Page 48 Heat Pump Unitherm 3 R32 (2) Wiring diagram: outdoor unit CH-HP6.0SIRK3 • CH-HP8.0SIRK3 CH-HP10SIRK3 •...
  • Page 49 WP95A-R YEGN Electric heating 3YEGN Electrical Note: the dotted line box requires on-site wiring. 19.2.3 Terminal board CH-HP6.0SIRK3 CH-HP8.0SIRK3 CH-HP10SIRK3 Terminal board XT2 N(1) Other thermal 2-Way-valve1 Terminal board XT1 Teminal board XT3 14 15 10 11 Power Water tank Auxiliary...

  • Page 50: Commissioning

    Heat Pump Unitherm 3 R32 20. Commissioning 20.1 Check before startup For safety of users and unit, the unit must be started up for check before debugging. The procedures are as below: The following items shall be performed by qualified repair persons. Confirm together with the sales engineer, dealer, installing contractor and customers for the following items finished or to be finished.

  • Page 51: Test Run

    Heat Pump Unitherm 3 R32 20.2 Test run Test run is testing whether the unit can run normally via preoperation. If the unit cannot run normally, find and solve problems until the test run is satisfactory. All inspections must meet the requirements before performing the test run.

  • Page 52: Daily Operation And Maintenance

    Heat Pump Unitherm 3 R32 21. Daily Operation and Maintenance In order to avoid damage of the unit, all protecting devices in the unit had been set before delivery, so please do not adjust or remove them. For the first startup of the unit or next startup of unit after long-period stop (above 1 day) by cutting off the power, please electrify the unit in advance to preheat the unit for more than 8 hours.

  • Page 53: Recovery

    Heat Pump Unitherm 3 R32 Malfunctions Reasons Troubleshooting Enhance heat insulation efficiency of the Poor heat insulation of water system. system. Poor heat exchange of evaporator. Poor efficiency of hot water Check if air in or out of unit is normal and Poor refrigerant of unit.

  • Page 54: Safety Consideration

    Heat Pump Unitherm 3 R32 j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
  • Page 55 Heat Pump Unitherm 3 R32 Pressure relief of the water tank The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open to the atmosphere. The pressure-relief device is to be operated regularly to remove lime deposits and to verify that it is not blocked A discharge pipe connected to the pressure-relief device is to be installed in a continuously downward direction and in a frost-free environment.

  • Page 56: Notice Before Seasonal Use

    Heat Pump Unitherm 3 R32 ① ② ③ ① Safety valve ② Regulator ③ Filter Drainage Installation Mode 3 of the Tap Water Safety Valve (Inlet Water Pressure>0.5MPa) A pressure maintaining valve is required in the installation mode 3 to make sure the water tank pressure keep within 0.3~0.5MPa.
