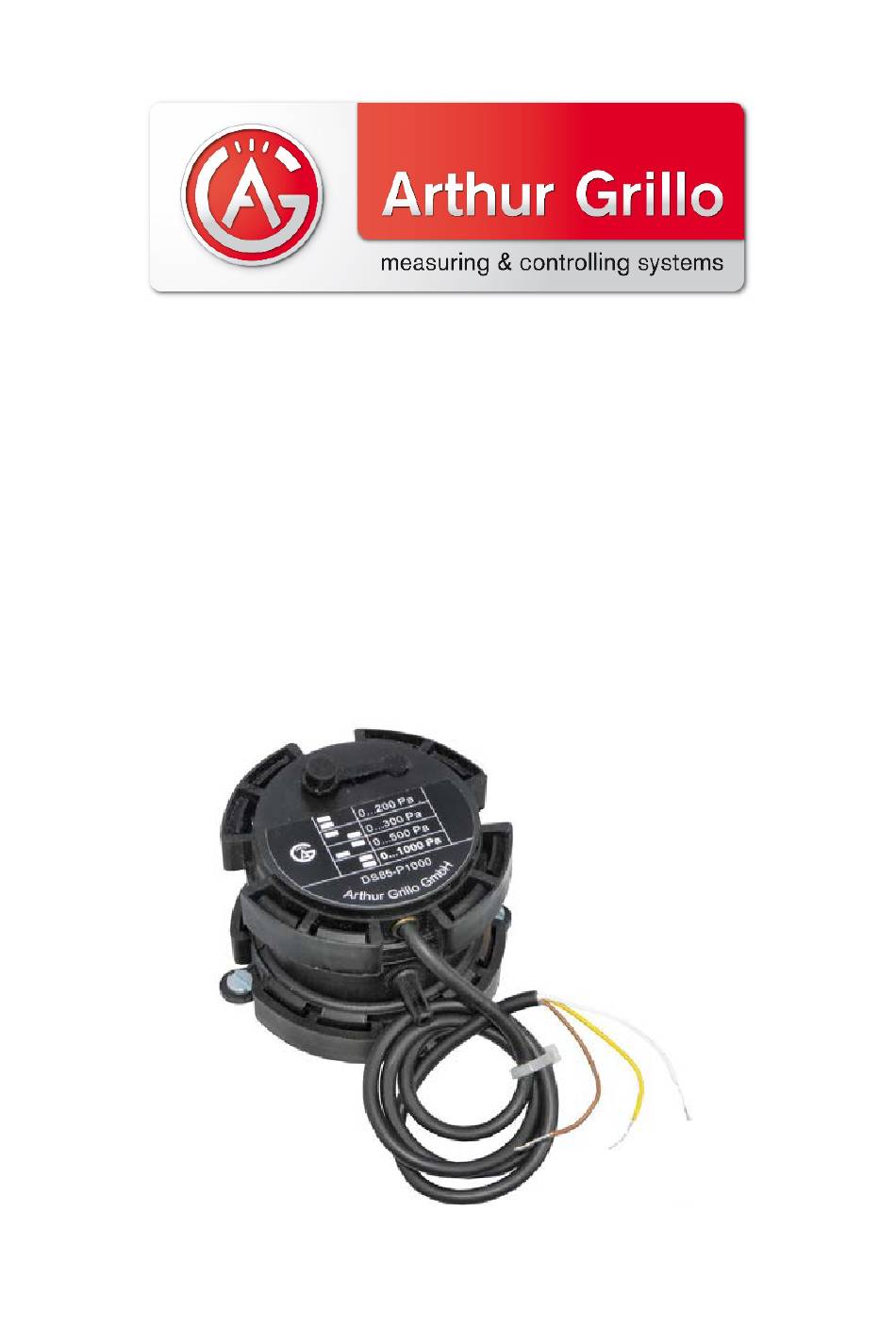

- Page 1 Installation and operation manual DS85P – DIFFERENTIAL PRESSURE SENSOR Low pressure sensor with analogue output and selectable measuring ranges Doc.-no.: DS85P_01_EN issue: 09/2018...
- Page 2 This documentation including all parts is protected by copyright. Any utilization or modi- fication other than permissible under the strict limitations of copyright law is prohibited and liable to prosecution without the approval of the Arthur Grillo GmbH. This applies in particular to duplications, translations, microfilming and storage and processing in elec- tronic systems.
-
Page 3: Table Of Contents
Table of content General safety instructions ..............5 1.1 Signal words for safety instructions ............5 1.2 Pictograms and symbols used ..............5 1.3 General notes ..................5 Product description ................6 2.1 Intended use ................... 6 2.2 Functional description ................6 Montage .................... -
Page 4: General Safety Instructions
1. General safety instructions 1.1 Signal words for safety instructions The safety instructions in this operating manual are intended to avert danger. They are contained in the operating instructions before any action / work / activity is described which could result in a hazard. Identification of a low-risk hazard that may result in property dam- CAUTION age or minor injury. -
Page 5: Product Description
2. Product description The differential pressure sensor DS85P is used to measure small differential pressures of non-aggressive gases, especially air. 2.1 Intended use The area of application is, for example, air conditioning technology, room pressure mon- itoring or filter control. A signal of 0...10 V DC is available to the user as an analogue output. -
Page 6: Dimension
3.1 Dimension All specifications in mm. 3.2 Wall mounting Hold the DS85P against the wall, mark the mounting holes. Drill fixing holes for sufficiently dimensioned screws or dowels. Press in the dowels. Insert the fixing screws through the screw channels of the housing screws so that the screws protrude from the rear of the housing. -
Page 7: Measuring Range Selection
5. Measuring range selection Four measuring ranges can be selected via a 2-pole DIP switch under the rubber plug in the front cover. DS85P DE85P DS85P Device typ 1000 6000 Measuring DIP-switch range MB1: 0…200 Pa 0…1000 Pa 0…6000 Pa MB2: 0…150 Pa... -
Page 8: Error Limits
End value: ± 0.3 % / K 7. Maintance The DS85P contains no wearing parts or consumables. Maintenance is not necessary. Upon request, Arthur Grillo GmbH offers an annual calibration with works certificate. In- formation on this can be obtained from:... -
Page 9: Disposal
9. Disposal When disposing of electronic components and devices, observe the legal regulations in the country of use. 10. Technical specifications PERFORMANCE: Overload safety: 0,2 bar Static pressure: Max. 0,2 bar Zero-point calibration: Adjustable via REED contact, no cyclic zero-point calibration required Reaction time: Immediately... -
Page 10: Ce- Label
EN 61000-6-2, EN 61000-6-3, CE-Zeichen RoHS: Entspricht RoHS-Richtlinie 2011/65/EU 10.1 CE- label As electrical equipment, the DS85P falls within the scope of the 2004/108/EC Directive (EMC Directive). The following standards have been applied within the scope of the EMC Directive: DIN EN 61000-6-2:2006-03...
