- Page 2 • central network status visualization of HRI devices • displaying measured values of response values for monitoring purpose RMS-12 could be connected to a PC and transmits, by Modbus-RTU protocol, all the parameters that it has collected. AVAILABLE MODELS It’s available one model for flush mounting 96 mm x 96 mm.
- Page 3 HRI devices are connected to RMS-12 concentrator by serial output COM1 RS485. Maximum 12 HRI devices could be connected. The PC Master is connected to RMS-12 concentrator by serial output COM2 RS485. SERIAL LINE CONNECTIONS In serial line over 500 mt, it’s necessary to insert a line termination resistance (Rt=100÷120 ohm) between the twisted pair of cables, placing it between the converter and the end of the network (last instrument connected).
- Page 4 REMOTE MONITORING SYSTEM FOR 15NLT1061715 HOSPITAL LOCATION Téléphone : 01 48 15 09 09 Rév. RMS-12 www.microener.com Page 4 / 8 EIA485 INTERFACE COMUNICATION (RS485) It is possible to exchange information between the instrument and a PC, PLC or other compatible system (using COM2 port), through the asynchronous serial line RS485.

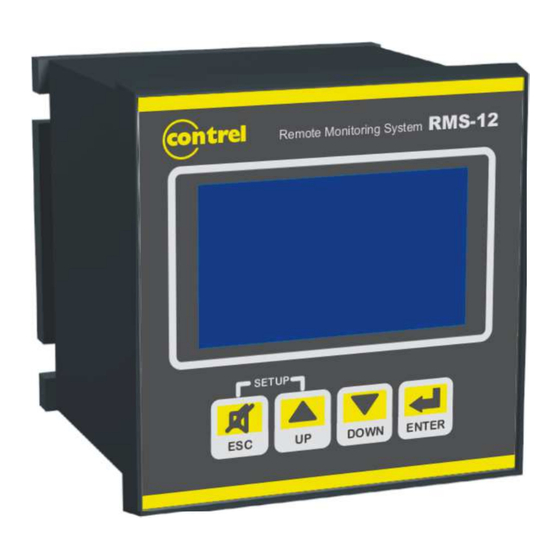

- Page 5 INSTRUCTIONS MANUAL FDE N°: REMOTE MONITORING SYSTEM FOR 15NLT1061715 HOSPITAL LOCATION Téléphone : 01 48 15 09 09 Rév. RMS-12 www.microener.com Page 5 / 8 DESCRIPTION FRONT PANEL– OPERATORS cont rel RMS-12 Remote Monitoring System SETUP SETUP SETUP SETUP DOWN...
- Page 6 RMS-12 (low secondary and over current). insulation; surpassed programmed threshold alarm).
- Page 7 INSTRUCTIONS MANUAL FDE N°: REMOTE MONITORING SYSTEM FOR 15NLT1061715 HOSPITAL LOCATION Téléphone : 01 48 15 09 09 Rév. RMS-12 www.microener.com Page 7 / 8 DIMENSIONS flush mounting for panel cut out panel DIN 43700 cont rel RMS-12 Remote Monitoring System...
