User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-F719-Q421V1
dedicated KVM switch and rackmount screen technology
19" FHD 1080p LCD

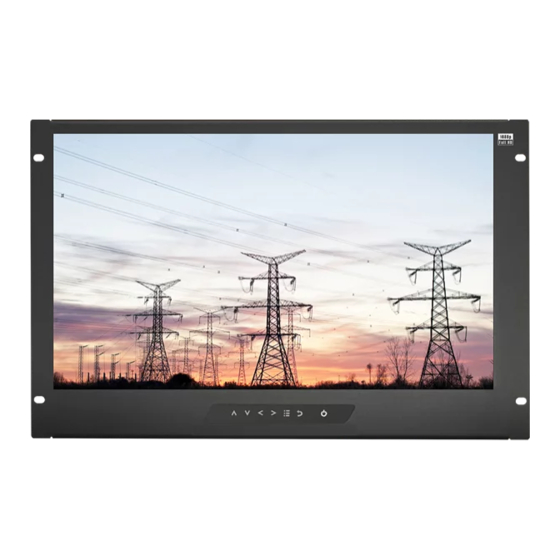

RP-F719
7U Rackmount Display Panel
Options :
- SDI / MCS
- HDMI / DP / Audio
- DC power
- MCS
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Austin Hughes CyberView RP-F719
Summary of Contents for Austin Hughes CyberView RP-F719
- Page 1 User Manual 19” FHD 1080p LCD RP-F719 7U Rackmount Display Panel Options : - SDI / MCS - HDMI / DP / Audio - DC power - MCS - MIL-type or lockable connector Designed and manufactured by Austin Hughes UM-CV-751-RP-F719-Q421V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, October 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-F719 Package Content Structure Diagram Dimension Installation < Part. 2 > Specifi cations / OSD / Remote Controller Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.10 MCS Multi-display control solution P.11... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Rp-F719
< Part 1 > < 1.1 > Package Content RP-F719 RP-F719 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Rear view Power adapter Power cord LCD panel LCD membrane... -
Page 6: Dimension
< 1.2 > Dimension Front View Side View UNIT : mm 1mm = 0.03937 inch Bottom View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 480 x 57.5 x 310 mm 529 x 124 x 451 mm 5.8 kg 7.9 kg... -
Page 7: Installation
< 1.3 > Installation RP-F719 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. UM-CV-751-RP-F719-Q421V1 www.austin-hughes.com... -
Page 8: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 18.5” Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M Viewing Angle ( L/R/U/D ) 89/89/89/89 Response Time ( ms ) - Page 9 RP-F719 Physical Product ( W x D x H ) 480 x 57.5 x 310 mm Specifi cation 18.9 x 2.3 x 12.2 inch Packing ( W x D x H ) 529 x 124 x 451 mm 20.8 x 4.9 x 17.8 inch Net Weight 5.8 kg / 12.8 lb Gross Weight...
- Page 10 Intentionally Left Blank UM-CV-751-RP-F719-Q421V1 www.austin-hughes.com...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RP-F719 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 12 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 13 RP-F719 Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
- Page 14 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 15 ( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of various CyberView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 16 < 3.3 > Upgrade Options : - HDMI ( HDMI 1.4, HDCP 1.4 ) - Display Port ( DP 1.0, HCDP 1.3 ) - Composite BNC (NTSC & PAC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in ) Audio Power...
- Page 17 < 3.4 > Options : Touchscreen & driver RP-F719 Audio Power HDMI-1.4 DVI-D Video PC USB Touchscreen Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/rackmount-display Step 2.
- Page 18 < 3.5 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 19: Mil-Type Or Lockable Connector
< 3.6 > Options : MIL-type or Lockable Connector RP-F719 Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl... - Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-F719-Q421V1 P.16...
