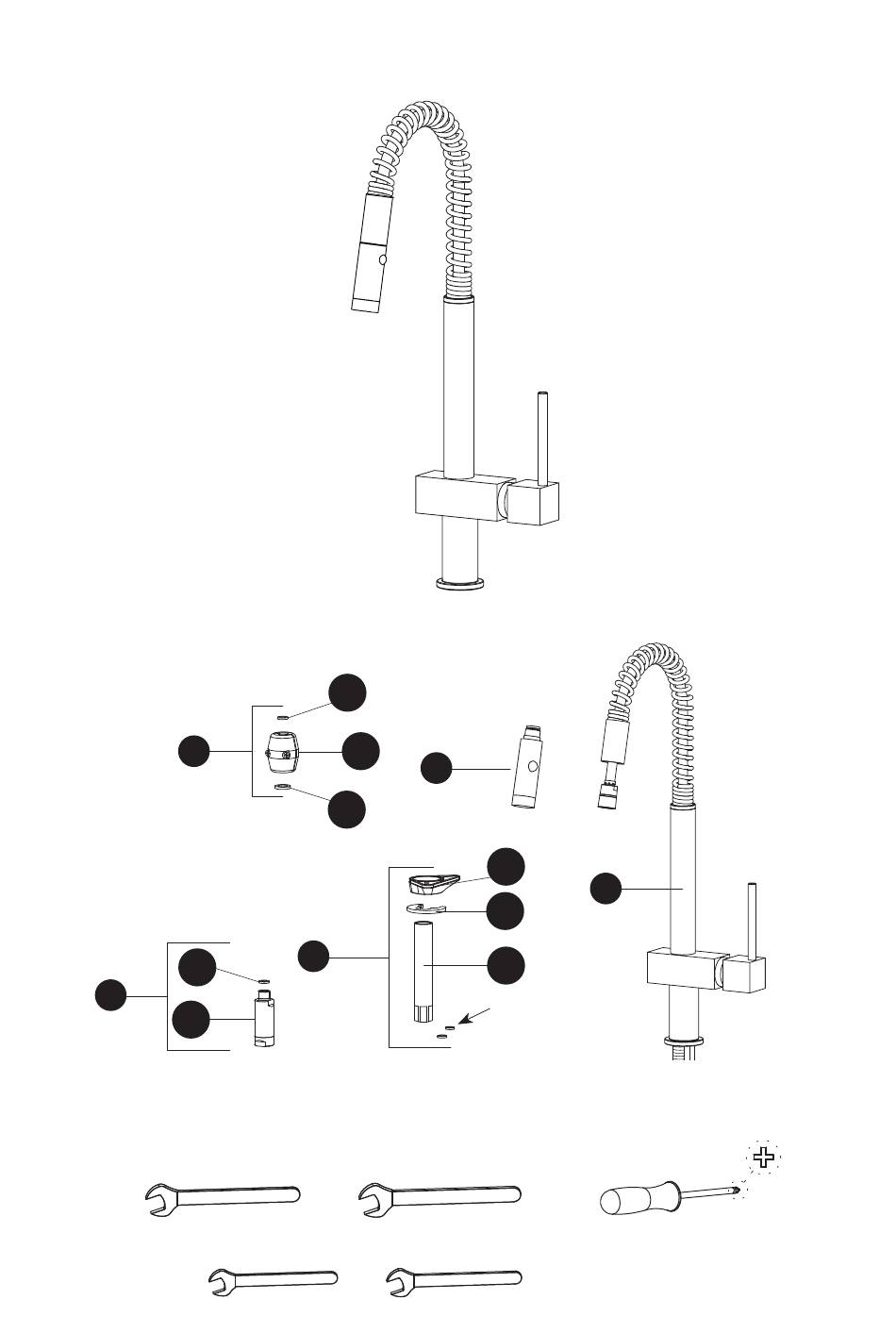

- Page 1 INSTALLATION / OWNER’S MANUAL Avado - Pull-Down Kitchen Faucet LKAV2031CR LKAV2031NK Includes: NOTE: these washers are not used on this faucet model Tools: 13/16” 13/16” [20 mm] [21 mm] 1/2” 5/8” [13 mm] [16 mm]...
-
Page 2: Cartridge Replacement
WARNING: please carefully read and properly follow the instructions for installation found in this manual. STEPS: 13/16” [20 mm] 13/16” [21 mm] 1/2” [13 mm] Before inserting the single lever group in the hole of For countertop thicknesses less than 1/16” thick Install the check valve (C1) to the outlet hose with a the sink, make sure that the base gasket is properly use the flange (B1), for all other installations use... - Page 3 AERATOR CLEANING / REPLACING Before removing the aerator make sure that the faucet is turned off. If the supply is not fluid unscrew manually the aerator-holder, remove the filter without damaging and/or loosing the gasket. If the aerator is clogged just rinse it with running water. Do not use detergents. Reassemble the aerator by following the instructions in reverse order.
-
Page 4: Care And Cleaning Instructions
For additional information, please visit elkayusa.com. WARRANTY ELKAY LIMITED LIFETIME WARRANTY Elkay warrants that all parts and finishes of the Elkay THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU Residential brand faucets are free from defects in ma- OF ANY OTHER WARRANTIES, EXPRESSED IM... -
Page 5: Replacement Parts
REPLACEMENT PARTS LKAV2031CR LKAV2031NK P48043XX PULL OUT HOSE PULL DOWN ASSEMBLY 1000003580 FOR CR 1000003581 FOR NK P01165X* P05041XX HANDLE COMPLETE AERATOR KIT P01157X* P29124XX CARTRIDGE CARTRIDGE HARDWARE 35mm P38035XX HANDLE SET SCREW P39016XX M5X4 SPOUT KEY HEX WRENCH 2.5mm...
