Operator's Manual

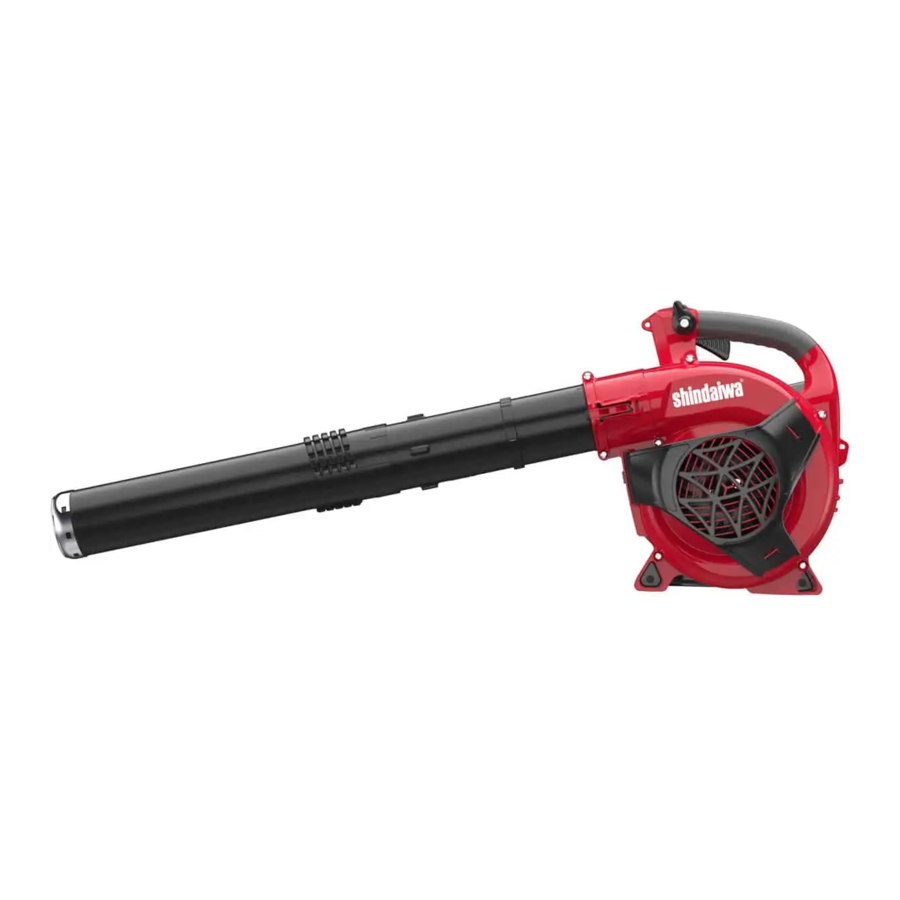

Power Blower
The engine exhaust from this product contains chemicals known
to the State of California to cause cancer, birth defects, or other
reproductive harm.
Read and understand all provided literature before use.
Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.
X7501190802
© 09/19 ECHO Incorporated
EB262

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB262 and is the answer not in the manual?

Questions and answers

Related Manuals for Shindaiwa EB262

Summary of Contents for Shindaiwa EB262

  • Page 1 Operator’s Manual EB262 Power Blower The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Read and understand all provided literature before use. Failure to do so could result in serious injury.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS EB262 TABLE OF CONTENTS Introduction ....................3 Servicing Information................... 3 Parts/Serial Number................3 Service ....................4 Consumer Product Support..............4 Product Registration................4 Additional Literature ................4 Safety ......................4 Manual Safety Symbols and Important Information ......4 International Symbols................

  • Page 3: Introduction

    SERVICING INFORMATION Parts/Serial Number Genuine SHINDAIWA Parts and Assemblies for your SHINDAIWA products are available only from an Authorized SHINDAIWA Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you.

  • Page 4: Service

    Service Service of this product during the warranty period must be performed by an Authorized SHINDAIWA Service Dealer. For the name and address of the Authorized SHINDAIWA Service Dealer nearest you, ask your retailer or call: 1-877-986-7783. Dealer information is also available on WWW.SHINDAIWA-USA.COM.

  • Page 5: International Symbols

    EB262 SAFETY The safety alert symbol accompanied by the word “WARNING” calls attention to an act or condition which CAN lead to serious personal injury or death if not avoided. The safety alert symbol accompanied by the word “CAUTION” calls attention to an act or condition which may lead to minor or moderate personal injury if not avoided.
  • Page 6 SAFETY EB262 Symbol Description Symbol Description Hot Surface Fuel and Oil Mixture Idle speed Fast speed Finger severing Primer Bulb DO NOT Allow Flames Ignition or Sparks Near Fuel ON / OFF Choke Control “COLD DO NOT Smoke Near START” Position...

  • Page 7: Personal Condition And Safety Equipment

    EB262 SAFETY Personal Condition and Safety Equipment Cancer and Reproductive Harm www.P65Warnings.ca.gov The muffler or catalytic muffler and surrounding cover may become extremely hot. Always keep clear of exhaust and muffler area, otherwise serious personal injury may occur. Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed.
  • Page 8 SAFETY EB262 Operate unit only if you are physically and mentally well. Eye Protection Eye protection that meets ANSI Z87.1 or CE requirements ◆ must be worn whenever you operate the unit. For additional safety, a full-face shield may be worn over ◆...
  • Page 9 EB262 SAFETY Keep long hair away from engine and air intake. Retain hair with cap or net. Heavy protective clothing can increase operator fatigue, which may lead to heat stroke. Schedule heavy work for early morning or late afternoon hours when temperatures are cooler.
  • Page 10 SAFETY EB262 Repetitive Stress Injuries (RSI) It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI).
  • Page 11 EB262 SAFETY Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death. Read the Manual • Provide all users of this equipment with literature for instructions on safe operation.

  • Page 12: Equipment

    SAFETY EB262 Equipment Use only approved attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO.

  • Page 13: Emission Control (Exhaust & Evaporative)

    EB262 EMISSION CONTROL EMISSION CONTROL (EXHAUST & EVAPORATIVE) CARB And EPA Emissions Control Information The emission control system for the engine is EM (engine modification) and, if the second to last character of the Engine Family on the Emission Control Information label (sample below) is “B”, “C”, “K”, or “T”, the emission...

  • Page 14: Description

    DESCRIPTION EB262 DESCRIPTION Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. Safety label is for example only.

  • Page 15: Contents

    Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or Shindaiwa Dealer of damaged or missing parts. Use the contents list to check for missing parts. Power Head...

  • Page 16: Assembly

    ASSEMBLY EB262 ASSEMBLY Never perform maintenance or assembly procedures with engine running or serious personal injury may result. Install Blower Pipes Stand unit upright on blower base. Align locking ribs (A) on upper blower pipe with pipe lock (B) in fan case.

  • Page 17: Remove Blower Pipes

    EB262 OPERATION Note: Blower use will eventually loosen pipe connections. Exclusive positive locking system allows pipes to be tightened. If loosening occurs, remove pipe, and reinstall according to instructions 3 and 4. Remove Blower Pipes Insert screwdriver into hole (G) to release pipe lock.

  • Page 18: Fuel

    OPERATION EB262 Operation of this equipment may create sparks that can start fires around dry vegetation. This unit is equipped with a spark arrestor to prevent discharge of hot particles from the engine. Contact local fire authorities for laws or regulations regarding fire prevention requirements.
  • Page 19 EB262 OPERATION Fuel Requirements Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to be good quality. Gasoline may contain up to 10% Ethanol (grain alcohol) or 15% MTBE (methyl tertiary-butyl ether). Gasoline containing methanol (wood alcohol) is NOT approved. Use of ECHO branded fuel is recommended to extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines.
  • Page 20 OPERATION EB262 Handling Fuel Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result. Use an approved fuel container. Mark fuel containers as ◆ containing 2-stroke mixture fuel. DO NOT smoke near fuel.
  • Page 21 EB262 OPERATION Spilled fuel is a leading cause of hydrocarbon emissions. Some locatins may require the use of automatic fuel shut-off containers to reduce fuel spillage. Storage - Fuel storage laws vary by locality. Contact your local government for the laws affecting your area. As a precaution, store fuel in an approved, airtight container.

  • Page 22: Starting Cold Engine

    OPERATION EB262 Starting Cold Engine Stop Switch Move stop switch (A) away from the STOP position. Throttle Position Lever Move throttle position lever (B) midway between idle and full throttle positions. Choke Move choke (C) to COLD START ) (closed) position.

  • Page 23: Starting Warm Engine

    EB262 OPERATION Recoil Starter Place the unit on a flat, clear area. Firmly grasp throttle handle (E) with left hand and rapidly pull recoil starter handle (F) until engine fires, or maximum 5 pulls. Choke Move choke lever (C) to RUN...
  • Page 24 OPERATION EB262 Purge Bulb Pump purge bulb (C) until fuel is visible and flows freely in the clear fuel tank return line. Recoil Starter Place the unit on a flat, clear area. Firmly grasp throttle handle (D) with left hand and rapidly pull recoil starter handle/ rope (E) until engine fires.

  • Page 25: Stopping Engine

    EB262 OPERATION Stopping Engine Throttle Trigger/Throttle Position Lever Release throttle trigger (A). Move throttle position lever (B) forward to idle position and allow engine to return to idle before shutting off engine. Stop Switch Move stop switch (C) to STOP position.
  • Page 26 OPERATION EB262 Use reduced speed only when performing light-duty tasks or to comply with local noise regulations. Continuous low speed operation may allow fuel/oil residue to build-up on the piston and cause rapid build-up of carbon on the spark arrestor screen, resulting in overheating and engine damage.

  • Page 27: Maintenance

    EB262 MAINTENANCE MAINTENANCE Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit.

  • Page 28: Maintenance Intervals

    MAINTENANCE EB262 Maintenance Intervals MAINTENANCE REQUIRED COMPONENT/SYSTEM PROCEDURE SKILL LEVEL Daily or Before Use Air Filter Inspect/Clean3 Choke Shutter Fuel System Inspect Cooling System Clean Recoil Starter Rope Inspect/Clean Screws/Nuts/Bolts Inspect/Tighten/Replace3 Every Refuel Fuel System Inspect 3 Months Air Filter...

  • Page 29: Air Filter

    EB262 MAINTENANCE Air Filter Level 1. Parts Required: Tune-Up Kit Close choke (COLD START ] position). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from air cleaner area. Remove air filter cover. Brush dirt from inside cover.

  • Page 30: Spark Plug

    MAINTENANCE EB262 Install the new filter with the reverse action. Note: Federal EPA regulations require all model year 2012 and later gasoline powered engines produced for sale in the United States to be equipped with a special low permeation fuel supply hose between the carburetor and fuel tank.
  • Page 31 EB262 MAINTENANCE Overheating and engine seizure can occur when: • Air intakes are blocked, preventing cooling air from reaching the cylinder. • Dust and grass build up on the outside of the cylinder. This build up insulates the engine and prevents the heat from leaving.

  • Page 32: Exhaust System

    MAINTENANCE EB262 Cleaning Cylinder Fins Blow compressed air through crankcase intake grill and discharge grill at area shown. Exhaust System See your dealer for maintenance. Carburetor Adjustment Engine Break-In New engines must be operated a minimum duration of two tanks of fuel break-in before carburetor adjustments can be made.

  • Page 33: Troubleshooting

    EB262 TROUBLESHOOTING Complete warm up by running at full throttle for 5 minutes, operating choke twice to clear air from carburetor chambers. Check idle speed and reset if necessary. If a tachometer is available, idle speed screw (A) should be set to the specifications found on “Specifications”...
  • Page 34 TROUBLESHOOTING EB262 ENGINE PROBLEM TROUBLESHOOTING CHART Problem Check Status Cause Remedy No fuel at Carburetor See your dealer cylinder OPEN choke Fuel at Clean or replace cylinder Muffler wet Fuel mixture air filter with fuel too rich Adjust carburetor Engine...

  • Page 35: Storage

    EB262 STORAGE STORAGE During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. Long Term Storage (Over 30 Days)

  • Page 36: Specifications

    SPECIFICATIONS EB262 SPECIFICATIONS MODEL EB262 324 mm (12.8 in.) (without blower pipes) Length 975mm (38.3 in.) (with blower pipes) Width 282 mm (11.1 in.) Height 355 mm (14.0 in.) 4 kg (8.8 lb.) (without blower pipes) Weight (dry) 4.4 kg (9.8 lb.) (with blower pipes)
  • Page 37 EB262 SPECIFICATIONS MODEL EB262 Sound Level at 15m (50 ft.) 70 dB(A) dB(A) scale per ANSI OPEI B175.2 X7501190802 © 09/19 ECHO Incorporated...

  • Page 38: Product Registration

    PRODUCT REGISTRATION EB262 PRODUCT REGISTRATION Thank you for choosing ECHO Power Equipment Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 39 EB262 PRODUCT REGISTRATION X7501190802 © 09/19 ECHO Incorporated...
  • Page 40 P49015001001 - P49015999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 -usa www.shindaiwa .com...
