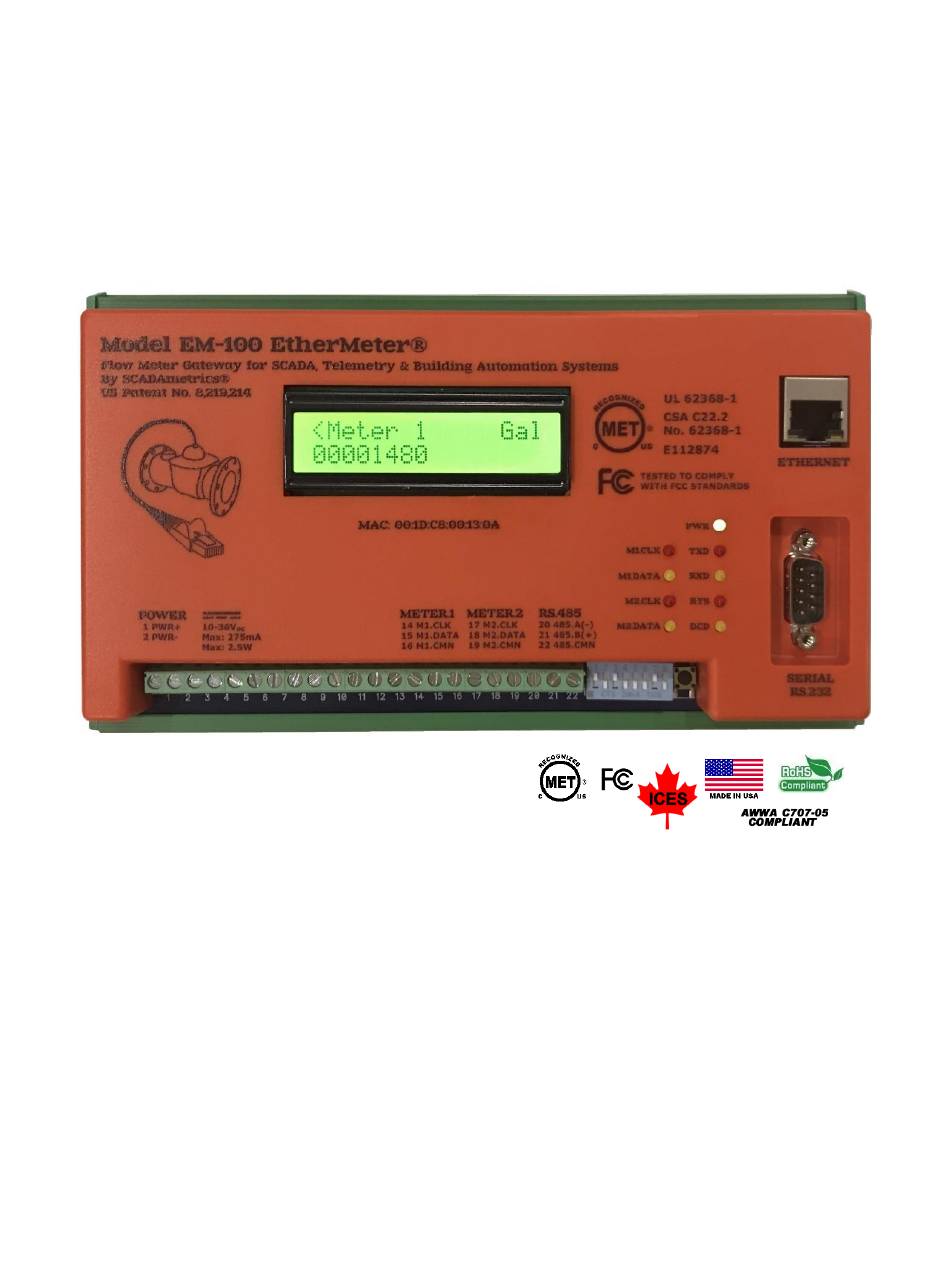

EtherMeter
FLOW METER GATEWAY FOR SCADA, TELEMETRY, &
BUILDING AUTOMATION SYSTEMS
COVERED BY US PATENT NO. 8,219,214
Installation, Operation, and
Maintenance Manual
Version 2.83.01
17 November 2021
AUTHORIZED SCADAMETRICS RESELLER
®
SCADAmetrics
St. Louis, Missouri USA
scadametrics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EtherMeter EM-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for SCADAmetrics EtherMeter EM-100

  • Page 1 ® EtherMeter FLOW METER GATEWAY FOR SCADA, TELEMETRY, & BUILDING AUTOMATION SYSTEMS COVERED BY US PATENT NO. 8,219,214 Installation, Operation, and Maintenance Manual Version 2.83.01 17 November 2021 AUTHORIZED SCADAMETRICS RESELLER ® SCADAmetrics St. Louis, Missouri USA scadametrics.com...

  • Page 3: Table Of Contents

    ® EtherMeter , SCADAmeter , and SCADAmetrics are trademarks of Navionics Research Inc dba SCADAmetrics EtherNet/IP™ is a trademark of ControlNet International. E-Coder™ and ProRead™ are trademarks of Neptune Technology Group. HawkEye™ is a trademark of Metron Farnier, Inc. HyperTerminal Private Edition™ is a trademark of Hilgrave Software.

  • Page 4: Introduction And Gallery

    – the ® Today, SCADAmetrics has eliminated these errors with the introduction of the EtherMeter telemetry appliance that can ensure absolute agreement between the SCADA system and its connected meters… also known as revenue-grade accuracy. The effectiveness of the EtherMeter is based upon an embrace of the latest AMI (Advanced ®...
  • Page 5 EtherMeters Installed as part of an Airport Energy/Utility Management System. JFK International Airport (New York City, NY) EtherMeters Installed as part of an Irrigation Monitoring System. Turlock Irrigation District (Turlock, CA)
  • Page 6 EtherMeters Installed as part of a Metropolitan Zoo Building Automation System. St. Louis Metropolitan Zoo (St. Louis, MO) EtherMeters Installed as part of a US Air Force Base Utility Management SCADA System. Davis-Monthan AFB (Tucson, AZ)
  • Page 7 EtherMeters Installed as part of a Satellite-Based, Frac Water Automatic Metering System. (Near Williston, ND) EtherMeters Installed as part of a Building Automation System. AutoDesk Inc. (Boston, MA)
  • Page 8 EtherMeters Installed as part of a University Building Automation System. Illinois Institute of Technology (Chicago, IL)

  • Page 9: Recommended Skills And Tools

    RECOMMENDED SKILLS AND TOOLS A. SKILLS FOR INSTALLING AND TROUBLESHOOTING AN ETHERMETER: IT IS RECOMMENDED THAT THE OWNER OR SYSTEM INTEGRATOR READ THIS MANUAL THOROUGHLY BEFORE ATTEMPTING INSTALLATION, SETUP, TROUBLESHOOTING. THE ETHERMETER IS DESIGNED TO BE SET UP AND INSTALLED BY A PROFESSIONAL ELECTRICIAN OR TECHNICIAN WITH EXPERTISE IN THE FIELD OF SCADA, TELEMETRY, INDUSTRIAL AUTOMATION, AND/OR INSTRUMENTATION.

  • Page 10: Specifications

    SPECIFICATIONS Meter Communications Meter Input Channels: Channel 1: Protocol or Pulse Channel 2: Protocol or Pulse Galvanic Isolation: 1500V Protocols: Sensus Variable-Length: 4 to 9 Digit Sensus Fixed-Length: 4 to 6 Digit Neptune E-Coder/Pro-Coder/Mach10 Plus: 8 to 9 digit Neptune ProRead Basic: 3 to 6 digit K-Frame (Honeywell-Elster-AMCO, ABB, Kent): 6 Digit Pulse (Dry Contact) Output, 2000 Hz Max.
  • Page 11 Mechanical/Electrical/Environmental 8.125” x 4.625” x 1.9375” Dimensions: Weight: 13.5 Ounces Temperature Range: -20C to +70C Relative Humidity: 5% to 95%, Non-Condensing Panel Mounts: Two (2) Universal Din-Rail Clips LCD Display: 2x16 Character, Backlit Supply Voltage: 10 VDC to 36 VDC Supply Current: 275 mA Max.
  • Page 12 DC voltage between 10 and 36 VDC and rated for a minimum current of 275 mA. If you are not sure of the type of power source, contact SCADAmetrics or your SCADAmetrics Distributor. • The secondary output circuits of the EtherMeter are SELV (Safety Extra Low Voltage). Ensure that the secondary output circuits are not connected with hazardous energy levels.
  • Page 13 Modifications: Any modifications made to this device that are not approved by SCADAmetrics may void the authority granted to the user by the FCC to operate this equipment.

  • Page 14: Electrical Interface

    ELECTRICAL INTERFACE Hookup Wiring Diagram: Model EM-100 EtherMeter® Flow Meter Gateway for SCADA, Telemetry & Building Automation Systems By SCADAmetrics® US Patent No. 8,219,214 UL 62368-1 LCD DISPLAY CSA C22.2 No. 62368-1 E112874 ETHERNET FLASH PROGRAMMING HEADER TESTED TO COMPLY (INTERNAL –...
  • Page 15 DIP SWITCH DEFINITIONS: RESERVED RESERVED RESERVED RS-232C SERIAL RS-485 SERIAL 120 OHM -N/C- -N/C- -N/C- BACKLIGHT AND SETUP MODE PORT ACTIVE PORT ACTIVE TERMINATION POWER-LED ON RESISTOR MODBUS/SERIAL (RS-485 SERIAL (RS-232C SERIAL ACTIVE DF1/SERIAL PORT INACTIVE) PORT INACTIVE) INACTIVE (RS-485 ONLY) DOWN DOWN DOWN...

  • Page 16: Meter Compatibility

    If there is a Sensus-, Neptune-, or K-Frame-protocol encoder meter register that is not listed within the document as compatible based upon testing, and you would like to see it listed as such, then please contact SCADAmetrics. Note that in such cases, we may request a register for testing and verification.

  • Page 17: Sensus Protocol Meter Support

    SENSUS PROTOCOL METER SUPPORT The Sensus Protocol, as implemented within the Sensus OMNI, iPERL, & ICE™ registers, the Badger HRE & ADE registers, and numerous compatibles, is fully supported by the EtherMeter. Important Notes: (1) Sensus-compatible registers do not always provide the maximum resolution (digits) by default, and therefore the register or meter may require factory pre-programming.
  • Page 18 Channel 1 of the EtherMeter. Terminals 14, 15, and 16 are used in this case. Hookup to Meter Channel 2 will be identical, except terminals 17, 18, and 19 are used. Model EM-100 EtherMeter® Flow Meter Gateway for SCADA, Telemetry & Building Automation Systems By SCADAmetrics® US Patent No. 8,219,214 UL 62368-1 LCD DISPLAY CSA C22.2...
  • Page 19 An EtherMeter and a Sensus-Compatible AMI/AMR endpoint may be connected in parallel to a single meter register with the aid of a SCADAmetrics Duplexer (Part No. SDA or SDAW). A Duplexer may also be used to allow a parallel meter connection of two EtherMeters, also.

  • Page 20: Neptune Protocol Meter Support

    NEPTUNE PROTOCOL METER SUPPORT The Neptune Protocol, as implemented within the E-Coder™, ProCoder™, Mach10, and ProRead line of registers, is fully supported by the EtherMeter. Important Notes: (1) See the Meter Compatibility Matrix for meter register configuration details. (2) Wire color-coding for Neptune-compatibles differs from that used in Sensus-compatibles and K-Frame-compatibles.
  • Page 21 Channel 1 of the EtherMeter. Terminals 14, 15, and 16 are used in this case. Hookup to Meter Channel 2 will be identical, except terminals 17, 18, and 19 are used. Model EM-100 EtherMeter® Flow Meter Gateway for SCADA, Telemetry & Building Automation Systems By SCADAmetrics® US Patent No. 8,219,214 UL 62368-1 LCD DISPLAY CSA C22.2...
  • Page 22 An EtherMeter and a Neptune-Compatible AMI/AMR endpoint may be connected in parallel to a single meter register with the aid of a SCADAmetrics Duplexer (Part No. SDA or SDAW). A Duplexer may also be used to allow a parallel meter connection of two EtherMeters, also.

  • Page 23: Frame Protocol Meter Support

    K-FRAME (ELSTER) PROTOCOL METER SUPPORT K-Frame Protocol support applies to certain meters manufactured by Honeywell-Elster-AMCO- Kent-ABB. Compatible registers include the evoQ4 (Honeywell-Elster), InVISION (Honeywell- Elster-AMCO), ScanCoder (Elster-AMCO, ABB, Kent), and the AquaMaster mag-meter (ABB). Important Notes: (1) The instructions in this chapter do not apply to Sensus-protocol registers that are manufactured by Honeywell-Elster-AMCO (See Ch.
  • Page 24 Channel 1 of the EtherMeter. Terminals 14, 15, and 16 are used in this case. Hookup to Meter Channel 2 will be identical, except terminals 17, 18, and 19 are used. Model EM-100 EtherMeter® Flow Meter Gateway for SCADA, Telemetry & Building Automation Systems By SCADAmetrics® US Patent No. 8,219,214 UL 62368-1 LCD DISPLAY CSA C22.2...
  • Page 25 An EtherMeter and a K-Frame-Compatible AMI/AMR endpoint may be connected in parallel to a single meter register with the aid of a SCADAmetrics Duplexer (Part No. SDA or SDAW). A Duplexer may also be used to allow a parallel meter connection of two EtherMeters, also.

  • Page 26: Pulse Meter Support

    PULSE METER SUPPORT The EtherMeter provides meter-reading support for pulse-based meters. As a consequence, pulse meter signal(s) may be connected to either (or both) of the EtherMeter’s meter input channels. Pulse processing technology allows the EtherMeter to collect meter totalization and flow rate data from non-encoder-based meters.
  • Page 27 PULSE-BASED METERS SAMPLE CIRCUIT DIAGRAM Model EM-100 EtherMeter® Flow Meter Gateway for SCADA, Telemetry & Building Automation Systems By SCADAmetrics® US Patent No. 8,219,214 UL 62368-1 LCD DISPLAY CSA C22.2 No. 62368-1 E112874 ETHERNET TESTED TO COMPLY WITH FCC STANDARDS MAC: 00:1D:C8:##:##:## M1.CLK...
  • Page 28 Debounce Filter: In order to mitigate the adverse effects of contact bounce, user-adjustable de-bounce logic has been implemented within the EtherMeter firmware. The user may adjust the DBn parameter to increase or decrease the pulse sensitivity. DBn refers to the minimum required quiet time enforced after the leading edge of a valid pulse has been detected.

  • Page 29: Plc/Rtu/Computer Interface

    PLC/RTU/COMPUTER INTERFACE There are currently three (3) physical types of signal connections that can be made between a PLC/RTU/Computer and the EtherMeter. • RS-232C Serial • RS-485 Serial • Ethernet RS-232C Serial Port The RS-232C serial port is implemented within a DB9-Male DTE modular jack. The pinout is as described in Section 4.
  • Page 30 Ethernet Port The Ethernet port is a 10BaseT modular jack, and operates at a maximum data rate of 10 Mbps. Both dynamic (DHCP) and static IP addressing are supported. The Ethernet port supports the ARP ping function, serves a web page on TCP port 80, and provides a Telnet Server for remote configuration and troubleshooting.

  • Page 31: Radio Interface

    Ritron DTX+, DTXM, DTXLS SCADAmetrics Bell 202 Modem for Analog Telemetry Radios TransNet, entraNet, iNet, 1710, 2710, 4710, Microwave Data Systems...
  • Page 32 Solar Energy-Saver Features: The EtherMeter supports an energy-saver feature that may be useful in solar-powered applications. When the Dout1 setting is PwrSavLo or PwrSavHi, the 1 auxiliary digital output may be interfaced to a solid-state relay to power down a radio between polling sessions. The operation is described through the following example: RADIO ON If AUX1=PWRSAVHI, Aux Digital Out 1 = 5V...

  • Page 33: Auxiliary I/O Channels

    AUXILIARY I/O CHANNELS As an added benefit, the EtherMeter is equipped with five (5) auxiliary inputs and outputs: Two (2) analog inputs, and three (3) digital I/O. The auxiliary I/O make the device suitable for deployment as a standalone RTU at low-complexity locations, such as master meter vaults or even simple pumping stations.
  • Page 34 4-20mA (default) or 0-5VDC. 0-5VDC is activated by removing JP1 (inside case). 4-20mA loop resistance = 240 Ohms. Shared DC Common with Meter IO, Digital IO, and LOOP+. Caution: AIN2+ should NEVER be connected to a voltage greater than 5VDC above the Shared DC common. (See Recommended Wiring Diagram later in this section.) Unless the external analog device is powered by LOOP+, an external analog-to-analog isolation module should be used! (eg.
  • Page 35 CORRECT 4-20MA ANALOG INPUT WIRING: (NOTE THAT THE TRANSDUCER POSITIVE IS CORRECTLY CONNECTED TO LOOP+) Model EM-100 EtherMeter® Flow Meter Gateway for SCADA, Telemetry & Building Automation Systems By SCADAmetrics® US Patent No. 8,219,214 UL 62368-1 LCD DISPLAY CSA C22.2 No.
  • Page 36 The following diagram is an example of an EtherMeter deployed as a standalone RTU. Note the use of the auxiliary I/O to provide ON/OFF signaling and analog input monitoring, in addition to monitoring one (or two) meter registers. Figure 12C. Example Standalone EtherMeter as RTU or Remote I/O...

  • Page 37: Setup And Diagnostic Utilities

    SETUP AND DIAGNOSTIC UTILITIES In order to set up the EtherMeter, the technician should actuate the #8 dip switch to the “up” position. At this point, industrial protocols are disabled on the active serial port (RS-232 or RS- 485, depending upon dip switches #1 and #2). In setup mode, the EtherMeter’s serial port operates with the following parameters: •...
  • Page 38 Setup Screen #2 of 8 “Serial Port Setup” Setup Screen #3 of 8 “Networking Setup”...
  • Page 39 Setup Screen #4 of 8 “Auxiliary I/O Setup” Setup Screen #5 of 8 “Interface Setup”...
  • Page 40 Setup Screen #6 of 8 “MODBUS/DF1 Register Realtime Display 1 of 2” Setup Screen #7 of 8 “MODBUS/DF1 Register Realtime Display 2 of 2”...
  • Page 41 Setup Screen #8 of 8 “Meter Read Diagnostics”...
  • Page 42 Customizing The EtherMeter Through The Setup Menu Setup commands are entered at the “CMD>” prompt. After each command is entered, it is recommended that the technician verify the modified setting on the Setup Menu Display. For example, to set the run-mode baud rate to 19200, type: SET BAUD 19200 <ENTER>...
  • Page 43 N (secs) (Flow Timeout For Fixed dTotal) IF USING FIXED DTOTAL FLOW CALC METHOD, AND METER HAS NOT SET TO1 INCREASED, AND TIMEOUT HAS ELAPSED, DISPLAY AND REPORT FLOW RATE AS ZERO. VALID RANGE: 1-28800 SET TO2 N (secs) (Flow Timeout For Fixed dTotal) Meter 1 Protocol Type AUTO, NEPTUNE, SENSUS, ELSTER, PULSE SET TYPE1...
  • Page 44 SERIAL PORT SELECTIONS DEFAULTS SETUP N (decimal) (Protocol-Specific) SET ADDRESS 4 (decimal) DEVICE ADDRESS FOR MODBUS, DF1, AND ADAM-4000 PROTOCOLS. ETHERMETER DOES NOT CHECK ADDRESS FOR RANGE VALIDITY. MB-RTU, MB-ASCII, DF1-FD, DF1-RM, ASCII (ASCII-VERSION ONLY), DISPLAY (DISPLAY-VERSION ONLY), ADAM (ADAM-VERSION ONLY) SET PROTOCOL MB-RTU (SELF EXPLANATORY)
  • Page 45 N (usecs) • USED WITH “FIXEDRTS” FLOW CONTROL ONLY. • IF NON-ZERO, TRANSMITTER WILL WAIT UP TO N SET COLL-AVOID-US MICROSECONDS FOR DCD TO GO LOW BEFORE TRANSMITTING. • USEFUL FOR IMPLEMENTING COLLISION-AVOIDANCE WITH “DUMB” RADIO-MODEMS. • IMPLEMENTED INTERNALLY IN MULTIPLES OF 208 MICROSECONDS. N (halfbytes) •...
  • Page 46 MODBUS SETUP SELECTIONS DEFAULTS BIG-ENDIAN, LITTLE-ENDIAN • BIG-ENDIAN – MS (MOST SIGNIFICANT) BYTE TRANSMITTED FIRST SET END16 BIG-ENDIAN • LITTLE-ENDIAN – LS (LEAST SIGNIFICANT) BYTE TRANSMITTED FIRST BIG-ENDIAN, LITTLE-ENDIAN • BIG-ENDIAN – MS (MOST SIGNIFICANT) WORD TRANSMITTED FIRST SET END32 BIG-ENDIAN •...
  • Page 47 AUX I/O SETUP SELECTIONS DEFAULTS DIN, DOUT, PWRSAVHI, PWRSAVLO DIN: • DIGITAL INPUT – MAY BE MONITORED BY INTERROGATION FROM MODBUS, DF1, ETHERNET/IP, OR ADAM MASTER DOUT: • DIGITAL OUTPUT – FOLLOWS COMMANDS FROM MODBUS OR DF1 (OR ADAM) MASTER SET AUX1 PWRSAVHI: •...
  • Page 48 NONE, ON, OFF • WHEN POLL NOT RECEIVED FOR FAILTIME (SECS), TURN DIGITAL OUTPUT(S) ON. OFF: • WHEN POLL NOT RECEIVED FOR FAILTIME (SECS), TURN DIGITAL SET FAILSAFE NONE OUTPUT(S) OFF. NONE: • IGNORE FAILTIME. (‘FAILSAFE’ SETTING ONLY AFFECTS AUXILIARY OUTPUT(S) WHEN AUXn=DOUT.) N (secs) WHEN POLL NOT RECEIVED AFTER FAILTIME (SECS) HAS ELAPSED,...
  • Page 49 INTERFACE SETUP SELECTIONS DEFAULTS AUTO, ON, OFF CONTROLS LCD DISPLAY OF METER #1 TOTALIZATION. AUTO: DISPLAY ACTIVE WHEN METER #1 DETECTED. SET LCD01 AUTO DISPLAY ACTIVE, REGARDLESS OF WHETHER METER 1 DETECTED. OFF: SUPPRESSES DISPLAY. NOTE: FOR CONVENIENCE, ALL LCD SCREENS ARE SEQUENTIALLY DISPLAYED RIGHT AFTER POWERUP AND RIGHT AFTER SWITCHING FROM SETUP MODE TO RUN MODE (DIP SWITCH #8).
  • Page 50 ON, OFF CONTROLS LCD DISPLAY OF ANALOG INPUT #2. SET LCD07 DISPLAY ACTIVE. OFF: SUPPRESSES DISPLAY. ON, OFF CONTROLS LCD DISPLAY OF AUX DIGITAL I/O #1. SET LCD08 DISPLAY ACTIVE. OFF: SUPPRESSES DISPLAY. ON, OFF CONTROLS LCD DISPLAY OF AUX DIGITAL I/O #2. SET LCD09 DISPLAY ACTIVE.
  • Page 51 AUTO, ON, OFF CONTROLS LCD DISPLAY OF BANNER TEXT. AUTO: DISPLAYS WHEN BANNER TEXT EXISTS (WHEN BANNER TEXT HAS SET LCD15 BEEN ENTERED BY THE USER). AUTO DISPLAY ACTIVE. OFF: SUPPRESSES DISPLAY. TEXT DESCRIPTION FOR THE METER ATTACHED TO CHANNEL 1 (1 TO SET DESCR1 4 CHARACTERS, NO SPACES OR PERIODS).

  • Page 52: Modbus Protocol Support

    To test and/or verify MODBUS communications with the EtherMeter, there are several useful computer programs available. SCADAmetrics recommends the SimplyModbusRTU and SimplyModbusTCP programs, which are available for a modest price from www.simplymodbus.ca. Assistance and support for these programs (and all 3 -party software) may be obtained from their respective manufacturers.
  • Page 53 FUNCTION: 03(READ) REGISTERS DESCRIPTORS 40001,40002* METER 1 TOTAL (UNSCALED) 40003,40004* METER 2 TOTAL (UNSCALED) 40005,40006** FLOW 1 X 1000 40007,40008** FLOW 2 X 1000 ROLLOVERS – METER 1 40009 ROLLOVERS – METER 2 40010 40011 AIN 1 (0-10000) 40012 AIN 2 (0-10000) 40013 SUPPLY VOLTS X 10 40014...
  • Page 54 Modbus Register 40014 contains the 16-bit word: “Digital Status Bits”. The contents of this word are as illustrated in the following table: Bit Position Contents 00 (Least Significant Bit) Aux Digital I/O 1 Status (1=ON, 0=OFF) Aux Digital I/O 2 Status (1=ON, 0=OFF) Aux Digital I/O 3 Status (1=ON, 0=OFF) REBOOT DEVICE -reserved/future-...
  • Page 55 Master (Request): EtherMeter (Response): Example MODBUS Request/Response.
  • Page 56 Sample MODBUS/RTU Commands: The following samples are provided to familiarize the user with a few of the core EtherMeter MODBUS/RTU commands. In all samples, the device address=4. Note that the users’ responses will vary in accordance with the unique I/O state of each EtherMeter. Read: Meter 1, Meter 2, Flow 1, Flow 2 MODBUS Function 3 04 03 00 00 00 08 44 59...
  • Page 57 TOTALIZATION AND FLOW DATA FORMAT: The EtherMeter was designed in such a way as to simplify and compress the formatting of all reported data. As shown in the previous charts, no floating point or 64-bit registers are implemented in the holding (4xxxx) registers, as all data is represented internally as 32-bit long integers (signed or unsigned) and 16-bit signed integers.
  • Page 58 EXAMPLE: Consider the following case of a meter register installed on meter channel 1. This register contains 8 variable digits plus two (2) fixed zeros on the right. (EXP1=+2.) 1 2 3 4 5 6 7 8 GALLONS In this case, the actual total is 1,234,567,800 gallons. However, the [40001,40002] MODBUS holding register will report the total as: 12,345,678.

  • Page 59: Df1 And Ethernet/Ip Protocol Support

    Setup Menu. To test and/or verify DF1 communications with the EtherMeter, there are several useful computer programs available. SCADAmetrics recommends KepServerEx from Kepware Technologies (kepware.com), or RSLinx™ from Rockwell Automation (rockwellautomation.com). Assistance and support for these programs (and all 3 -party software) may be obtained from their respective manufacturers.
  • Page 60 PROTECTED TYPED LOGICAL READ/WRITE WITH 3 ADDRESS FIELDS [CMD,FNC,FILE#,FILETYPE] = [0F,A2,07,89] (READ N7 REGISTERS) REGISTERS DESCRIPTORS N7:0-1* METER 1 TOTAL (UNSCALED) N7:2-3* METER 2 TOTAL (UNSCALED) N7:4-5** FLOW 1 X 1000 N7:6-7** FLOW 2 X 1000 ROLLOVERS – METER 1 N7:8 ROLLOVERS –...
  • Page 61 DF1 Register N7:13 contains the 16-bit word: “Digital Status Bits”. The contents of this word are as illustrated in the following table: Bit Position Contents 00 (Least Significant Bit) Aux Digital I/O 1 Status (1=ON, 0=OFF) Aux Digital I/O 2 Status (1=ON, 0=OFF) Aux Digital I/O 3 Status (1=ON, 0=OFF) REBOOT DEVICE -reserved/future-...
  • Page 62 Master (Request): 4F 00 EtherMeter (Response): Example DF1-RadioModem Request/Response. Sample DF1 Commands: The following samples are provided to familiarize the user with a few of the core DF1 commands. In all samples, the device address=4, and the protocol is DF1-RadioModem. Note that the users’ responses will vary in accordance with the unique address and I/O state of each EtherMeter.
  • Page 63 ETHERNET/IP. The EtherMeter provides elementary support for EtherNet/IP, an industrial communication protocol for Ethernet. EtherNet/IP was originally developed by Rockwell Automation and is now managed by ODVA. This manual assumes that the user is well-versed in the EtherNet/IP Protocol. In order to learn more about this protocol, please visit rockwellautomation.com or odva.org.
  • Page 64 Client Request: “Register Session”: 28 Bytes: [65 00] [04 00] [00 00 00 00] [00 00 00 00] [44 69 67 69 45 00 00 00] [00 00 00 00] [REGISTER SESSION] [LEN OF DATA ATTACHED TO HEADER] [SESSION HANDLE] [STATUS] [CONTEXT] [HEADER OPTIONS] [01 00]...
  • Page 65 Client Request: “Get Attributes All”: 46 Bytes: [6f 00] [16 00] [05 00 00 00] [00 00 00 00] [26 00 00 00 00 00 00 00] [00 00 00 00] [SEND RR DATA] [LEN OF DATA ATTACHED TO HEADER] [SESSION HANDLE] [STATUS] [CONTEXT] [HEADER OPTIONS] [00 00 00 00]...
  • Page 66 TOTALIZATION AND FLOW DATA FORMAT: The EtherMeter was designed in such a way as to simplify and compress the formatting of all reported data. As shown in the previous charts, no floating point or 64-bit registers are implemented in the N7 registers, as all data is represented internally as 32-bit long integers (signed or unsigned) and 16-bit signed integers.
  • Page 67 EXAMPLE: Consider the following case of a meter register installed on meter channel 1. This register contains 8 variable digits plus two (2) fixed zeros on the right. (EXP1=+2.) 1 2 3 4 5 6 7 8 GALLONS In this case, the actual total is 1,234,567,800 gallons. However, the [N7:0,1] register will report the total as: 12,345,678.

  • Page 68: Ascii Protocol Support

    ASCII PROTOCOL SUPPORT The EtherMeter is available with RAW-ASCII protocol support (Optional. ASCII-Version Only). Many PLC’s and RTU’s are equipped with extra serial ports that are capable of collecting data from raw ASCII terminal devices such as bar code readers. For compatibility with these PLC’s, the EtherMeter provides a “Raw ASCII Protocol”...
  • Page 69 On the LCD display and within the ASCII flow fields, the following table displays the flow units that pertain to the totalization units: Totalization Units Flow Units Gallons Gallons Per [Hour,Minute,Sec] Cubic Feet Cubic Feet Per [Hour,Minute,Sec] Liters Liters Per [Hour,Minute,Sec] Cubic Meters Cubic Meters Per [Hour,Minute,Sec] Pounds...

  • Page 70: Http Web Server

    HTTP WEB SERVER The EtherMeter offers an integral web server, which is active on TCP logical port 80. The device also features a “Ping Server”, which is useful for locating and troubleshooting the EtherMeter on a network. Note that both static IP and dynamic IP (DHCP) addressing is supported. (Static or Dynamic IP Address selection is made in the Setup Menu.) The unique MAC ID of each EtherMeter is printed on the front cover of the unit.
  • Page 71 The following web page is served by the EtherMeter: /index.html A single-frame web page containing a snapshot of the data. Through the use of an off-board web server, customized, frame-based web pages may be developed for displaying data from multiple installed EtherMeters™. The following web page is a simple example: Figure 19B.

  • Page 72: Telnet Server

    TELNET SERVER The EtherMeter provides a basic integrated TELNET server. With the use of TELNET client software, the user may log in to the EtherMeter from a remote node on the network to perform setup and maintenance tasks. However, only one (1) remote user may TELNET to the EtherMeter at any given time.

  • Page 73: Network Security

    NETWORK SECURITY The networking capabilities of the EtherMeter are very basic. Therefore, the device is not designed to be staged at network locations where it would be exposed to Internet threats. When an EtherMeter is installed within an industrial network that features a Gateway to the Internet, a firewall should be properly installed and configured to shield the EtherMeter, as well as all other industrial controls, from the vagaries of unfiltered Internet traffic.

  • Page 74: References

    REFERENCES METERS: ABB. AquaMaster Mag-Meter: http://abb.com/ Badger. HRE, ADE, and MagMeter Registers: http://badgermeter.com/ Honeywell / Elster AMCO (ABB/Kent). InVision and ScanCoder Registers, evoQ4 Mag-Meter: http://www.elsteramcowater.com/ Hersey/Mueller. Translator Register, SSR Register, ME-8 Register: http://www.muellersystems.com/ Master Meter. Acculinx Register and Elinx Register: http://mastermeter.com/ McCrometer Meter.
  • Page 75 AUXILIARY DEVICES: Analog Isolation and Input Modules – Dataforth Corporation http://dataforth.com/ Solid State Relays – Power IO http://power-io.com/ Solid State Relays – Crouzet / Crydom http://www.crydom.com THIRD PARTY SOFTWARE: ‘Simply Modbus’ Data Communication Test Software http://simplymodbus.ca ‘HyperTerminal’ Terminal Emulation Software: http://hilgraeve.com ‘PuTTY’...

  • Page 76: Limited Warranty

    1.1 This Limited Warranty is extended only to the original end-user purchaser (CUSTOMER) and is not transferable. 1.2 No agent, reseller, or business partner of SCADAmetrics is authorized to modify the terms of this Limited Warranty on behalf of SCADAmetrics.
  • Page 77 3.5 Responsibility for loss or damage does not transfer to SCADAmetrics until the returned product or part is received at a designated SCADAmetrics facility. 3.6 Once a component has been visually inspected and tested, SCADAmetrics will, at its sole discretion, repair or replace, using new or reconditioned product or parts, to whatever extent it deems necessary to restore the product or part to operating condition.

  • Page 78: Firmware License

    1. This agreement covers licensing terms for all firmware that is provided within computer memory that is a part of this EtherMeter Appliance. 2. This is an agreement between Licensor (SCADAmetrics) and Licensee, who is being licensed to use the SCADAmetrics Firmware Suite.
  • Page 79 This Page Intentionally Blank.
