Summary of Contents for Sierra SR-4-24

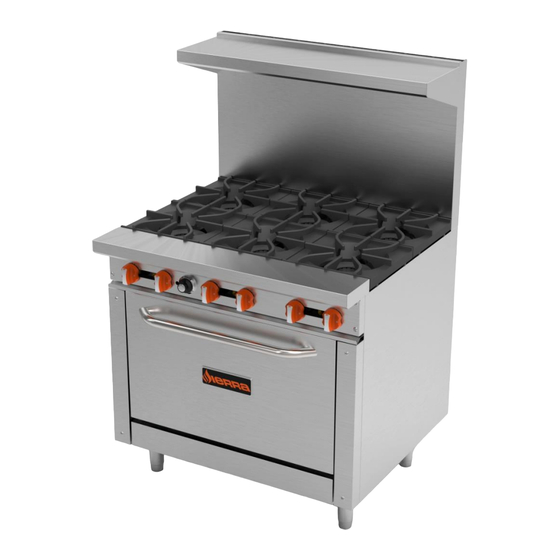

- Page 1 OWNER´S MANUAL INSTRUCTIONS- INSTALLATION-OPERATION-MAINTENANCE OVENS AND MULTIPLES SR-4-24, SR-6-36, SR-24G -24, SR-36G -36, SR-4B-12G-36, SR-2B-24G-36 **READ THIS MANUAL IN IT’S ENTIRELY BEFORE USING THIS RANGE** 5659 ROYALMOUNT AVE MONTREAL, QC, CANADA H4P 2P9 TEL (514) 737-9701; 1-888-275-4538...
-
Page 2: Important Safety Information
2 to 17 IMPORTANT SAFETY INFORMATION FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. MESURE DE SÉCURITÉ: Ne pas entreponer ni utiliser d´essence ni autres vapeurs ou liquides inflammables á... -
Page 3: Shipping Damage Claim Procedure
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE All equipment manufactured by SIERRA RANGE. is for use with the type of gas specified on the rating plate and for installation will be in accordance with National Fuel Gas Code ANSI Z223.1 (latest edition) -
Page 4: High Shelf Assembly
4 to 17 Provisions shall be incorporated in the design of the kitchen, to ensure adequate supply of fresh air and adequate clearance for air openings into the combustion chamber, for proper combustion, and ventilation. For proper operation of the appliance, do not obstruct the flow of combustion and ventilation air. The installation must conform with local codes, or in the absence of local codes, to the national fuel gas code, ANSI Z223.1 (or latest addenda). -
Page 5: Maintenance Instructions
5 to 17 All Sierra appliances are adjusted and tested before leaving the factory, effectively matching them to sea level conditions. Adjustments and calibrations to assure proper operation may be necessary on installation to meet local conditions; low gas characteristics, to correct possible problems caused by rough handling or vibration during shipment, and are to be performed only by qualified service personnel. -
Page 6: Stainless Steel Parts
6 to 17 movable appliances, there is a restraining device at the rear of the unit. If disconnection of the restraint is necessary, reconnect the restraint after the appliance has been returned to its originally installed position. CLEANING DAILY: Clean top grate(s) with warm water, mild cleaner and wire brush. Clean and brush off debris from and around the burner area. - Page 7 Mount Legs on bottom of product, the appliance may be further leveled with adjustment in the foot of the leg. GAS CONNECTION The gas supply (service) line must be the same size or greater than the inlet line of the appliance. SIERRA appliances use a ¾” NPT inlet.
- Page 8 8 to 17 LOCATION • Installation of the equipment should be performed by qualified, certified, and authorized personnel who are familiar and experienced with local installation codes. • Before Installation please read instructions completely and carefully. • Do not remove permanently affixed labels, warnings or plates from the product. •...
-
Page 9: Rating Plate
When communicating with factory about a unit or requesting for special parts or information, Rating plate data is essential for proper identification. SIERRA COOKING APPLIANCES MUST BE CONNECTED ONLY TO THE TYPE OF GAS ACCESSORIES INSTALLATION BACKSPLASH AND SHELF INSTALLATION MODELS SRR-4-24 &... -
Page 10: Back-Splash Installation
10 to 17 BACK-SPLASH INSTALLATION Identify the assemblies to be fitted over the equipment. Make sure you have all the tools and fasteners listed. Item Description Quantity (PC) M6 SCREW (FLAT) HEX SCREW (10mm) 10 Flat screwdriver Hex Nutdriver... - Page 11 11 to 17 Remove the 3 rear screws of the unit. Place the backsplash and make sure that the manifold fits in the hole on the right side support (push)
-
Page 12: Shelf Installation
12 to 17 Place and tight the hex screws in the shown positions. SHELF INSTALLATION Place the shelf over the backsplash and hook it on the very top of it. Back Splash Shelf... -
Page 13: Remove The Door
13 to 17 Fit the M6 screws on the inside of the shelf to secure it in position. REMOVE THE DOOR... - Page 14 14 to 17 Door installation STEP 1.- Place the assembler component in both hinges (you can find 2 pieces of it in carton legs box ) STEP 2.-Hold onto both hinges with your hands. STEP 3.- Raise the door until the door is at a 45 degrees angle.
-
Page 15: Troubleshooting
15 to 17 TROUBLESHOOTING BURNER AND/OR PILOTS NOT GAS SUPPLY TO COOKING TURN ON GAS SUPPLY TURN ON EQUIPMENT IS OFF UNIT PRODUCING CARBON GAS TYPE VERIFY CORRECT GAS DEPOSITS GAS SUPPLY PRESURE CONTACT LOCAL GAS SUPPLIER PRIMARY AIR NOT ADJUSTED ADJUST AIR SHUTTER PROPERLY ORIFICE TOO BIG... -
Page 16: Limited Warranty
MVP Group Corp., the service work was performed by an authorized MVP Group Corp. service agent; and that this agent installed an original and genuine Sierra part in the machine. Any repair work performed by a non- authorized service agent remains the sole responsibility of the user, and MVP Group Corp. - Page 17 17 to 17 (514) 737-9701 (888) 275-4538 service@mvpgroupcorp.com 5659 Royalmount Ave Montreal, QC, Canada H4P 2P9 (786) 600-4687 (844) 218-8477 service@mvpgroupcorp.com 12000 Biscayne Blvd, Suite #108 Miami, FL, United States 33181...
